4K60 4:2:0, H.264 Video Encoder supporting PoE and Video Wall
... learn more
Visuals Price
1,506.20 CHF VAT excl.

1,628.20 CHF Inc. VAT

Manufacturer price 1 772,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer 4K60 4:2:0 video encoder, H.264 with PoE and video wall support
The KDS-EN5 is a high-performance 4K@30Hz (4:4:4) H.264 video encoder that supports PoE and video walls in unicast (one-to-one) or multicast (several-to-many) configurations.–one) or multicast (several–to–many).
- Max. data rate. – 4K@30Hz (4:4:4) HDMI input.
- Standard AVC support – H.264 and AAC codecs.
- Virtualisation – RS–232 over IP.
- Network and IP support – Standard 10/100/1000 Mb Ethernet network operation. Managed switch: 1G, multicast, IGMP snooping, layer 2. Configurable DHCP, static or auto IP.

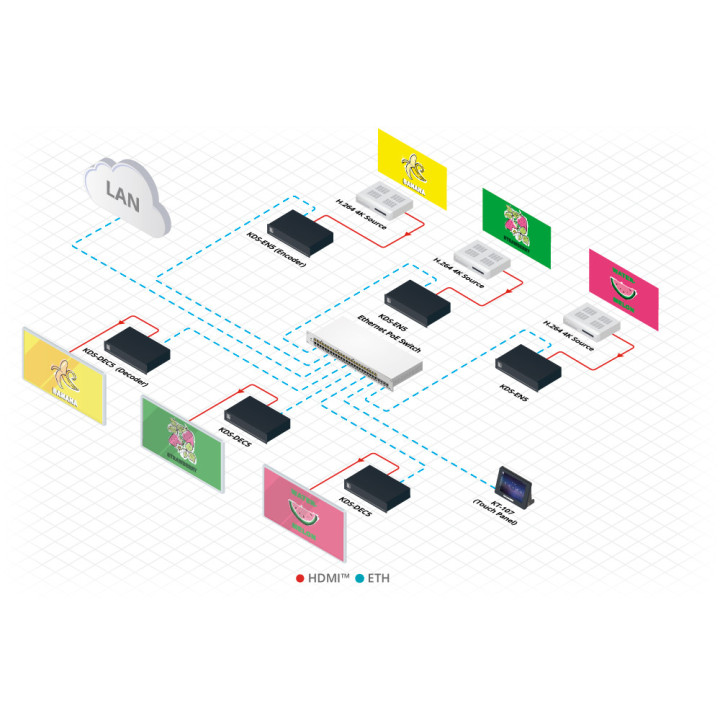

- Streaming and session control – Unicast, multicast and RTP over RTSP.
- Management and control options – Integrated web pages and API

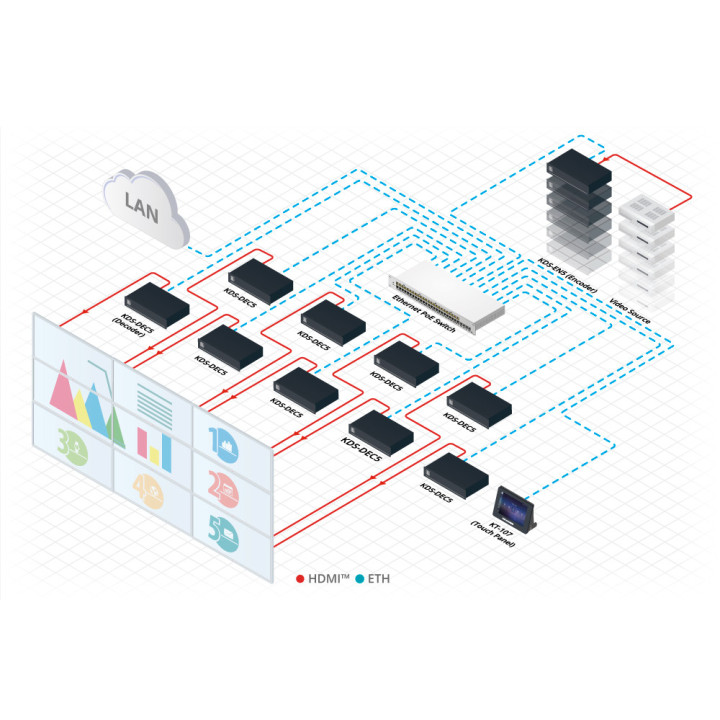

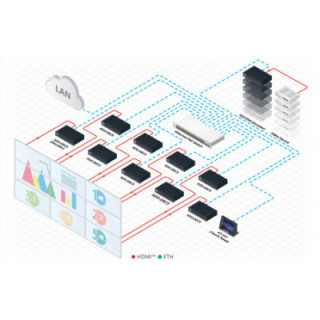

- Video wall – Up to 256 screens (16x16).
- Audio monitoring – Via analogue audio output.
- Power supply – PoE or external power supply (not included).



Specification

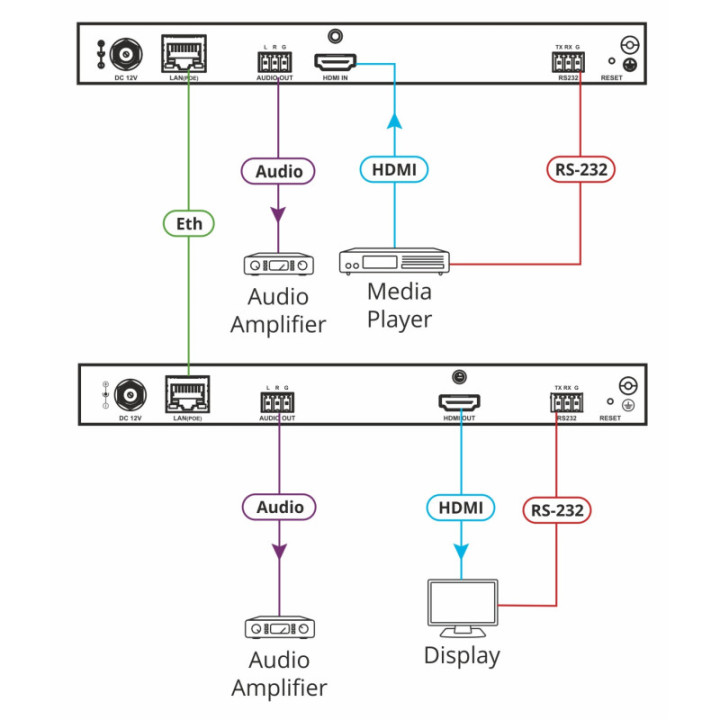

INPUTS

1 HDMI (1.4): On HDMI female connector

OUTPUTS

1 Unbalanced stereo audio: On 3-pin terminal block connector

PORTS

1 Ethernet: On RJ-45 connector

1 RS-232: On 3-pin terminal block connector

VIDEO

Compression standard: H.264/MPEG-4 AVC

Profiles: Baseline, Main, High profile

Levels: Up to 5.0

Bit rate control: CBR, VBR, adjustable GOP size

Bit rates: 2 Mbps–30 Mbps

Encapsulation format: MPEG-2 Transport Stream

Transmission format: TS over UDP, TS over RTP

Input resolutions: 640x480, 800x600, 1024x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x1200, 1680x1050, 1920x1200, 720x480 (480p), 720x576 (576p), 1280x720 (720p30), 1280x720 (720p50), 1280x720 (720p60), 1920x1080 (1080p24), 1920x1080 (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080 (1080p60), 1920x1200, 3840x2160 (4Kp24), 3840x2160 (4Kp30)

Output resolutions: 640x480, 720x480 (480p), 720x576 (576p), 800x600, 1024x768, 1280x720 (720p50), 1280x720 (720p60), 1280x800, 1280x1024, 1366x768, 1440x900, 1600x1200, 1680x1050, 1920x1080 (1080p24), 1920x1080 (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080 (1080p60), 1920x1200, 3840x2160 (4Kp24), 3840x2160 (4Kp30)

AUDIO

Compression standard: MPEG4 AACLC

Channels: 2 channels (stereo), HDMI with LPCM/AAC stereo audio

Sampling frequency: 48 kHz, Bit rate: 1.6 Mbps (LPCM), ≤240 Kbps (AAC)

POWER SUPPLY

Source: PoE or 12V DC power supply (not included)

Consumption: 5.6 W

ENVIRONMENTAL CONDITIONS

Operating temperature: 0 to +45°C (32 to +113°F), 10% to 90%, non-condensing

Storage temperature: –20 to +70°C (–4 to +158°F), 10% to 90%, non-condensing

Humidity: 10% to 90%, non-condensing

PRODUCT DIMENSIONS

21.90 cm x 13.50 cm x 2.50 cm (8.62" x 5.31" x 0.98") W, D, H

PRODUCT WEIGHT

0.8 kg (1.7 lbs) approx.
