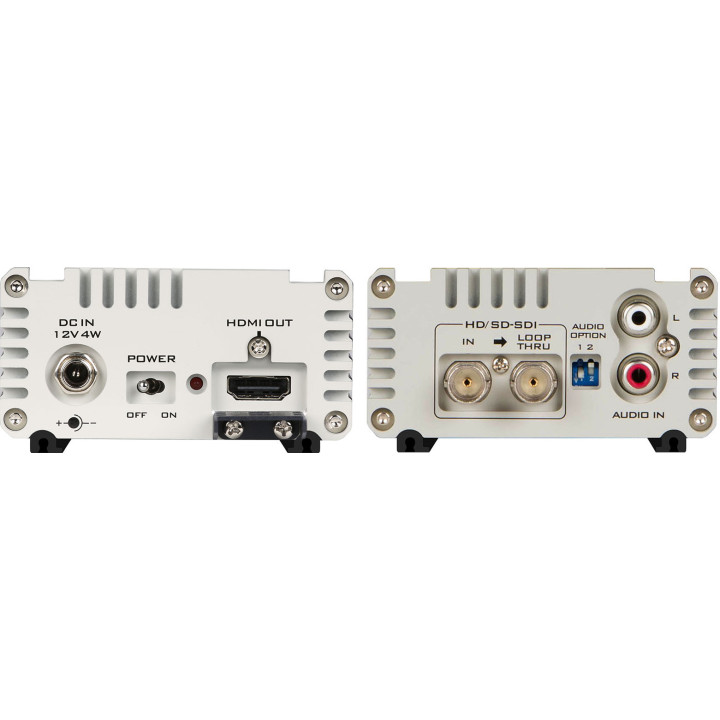

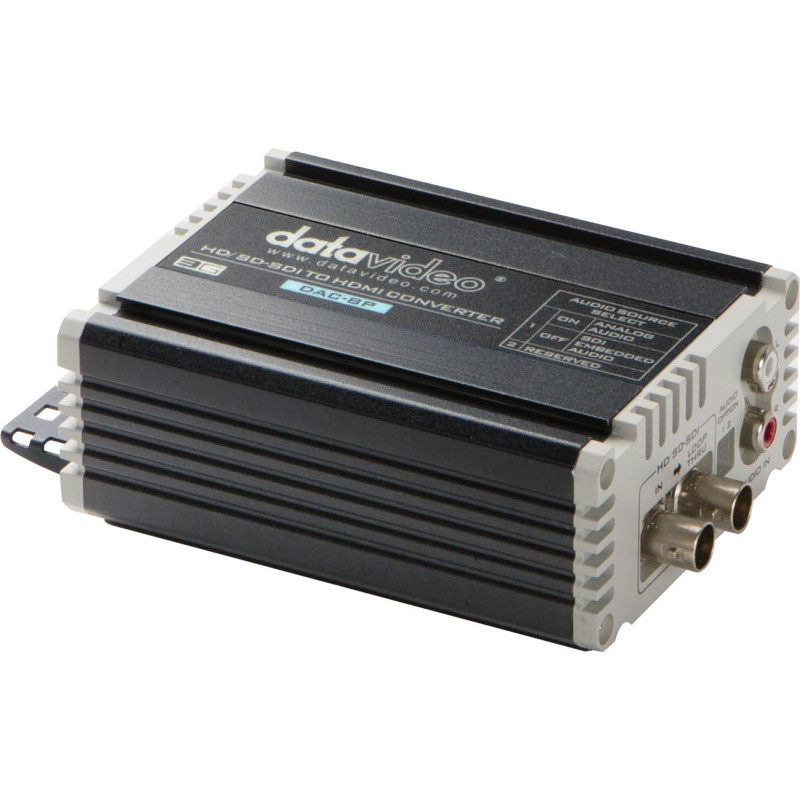

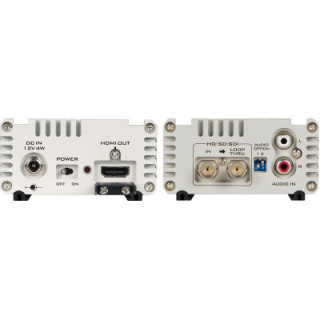

Datavideo - DAC-8PA - HD/SD-SDI to HDMI converter w audio de-embedding
Datavideo 2000-2282 - DAC-8PA - HD/SD-SDI to HDMI converter w audio de-embedding
1018431
0672255008614
HD/SD-SDI to HDMI converter & audio de-embedding
Visuals Price
249.90 CHF
VAT excl.
270.14 CHF Inc. VAT
Manufacturer price 294,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Datavideo DAC-8PA - HD/SD-SDI to HDMI Converter with Audio De-embedding
The DAC-8P allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to embed audio from a stereo RCA connection, or you can retain the embedded audio from the SDI source.
|
|
Specifications |
|
|
Conversion |
3G / HD / SD-SDI to HDMI |
|
|
Video inputs |
1x 3G / HD / SD-SDI |
|
|
Loop |
1 |
|
|
Video outputs |
1x HDMI with Embedded Audio |
|
|
Audio inputs |
2 x RCA (Stereo pair) 2x SDI Embedded Audio |
|
|
Audio outputs |
2x HDMI Embedded Audio |
|
|
Supported input video formats |
1080p (23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60Hz), 1080i (50 / 59.94 / 60Hz), 720p (50 / 59.94 / 60Hz), 576i (PAL), 480i (NTSC) |
|
|
Output resolutions |
Automatically adapts to video input SD, HD and 3G SDI |
|
|
Equalizer |
Yes |
|
|
Resynchronization |
Yes |
|
|
SDI cable driving |
Yes |
|
|
Dimensions (LxWxH) |
112 x 85 x 45 mm |
|
|
Weight |
0.3 kg |
|
|
Operating temperature range |
0 ~ 40 ° C |
|
|
Power supply |
DC 12V, 4W |
HD/SD-SDI to HDMI converter & audio de-embedding
