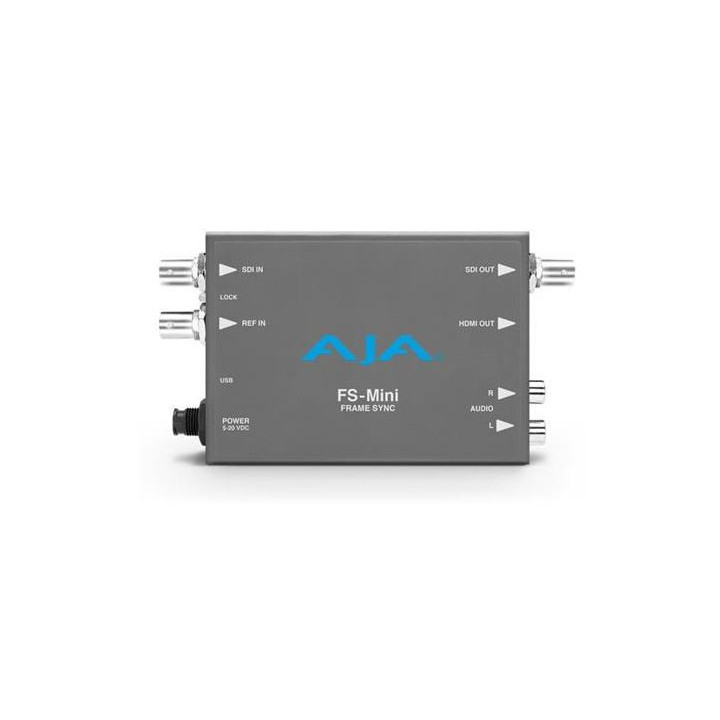

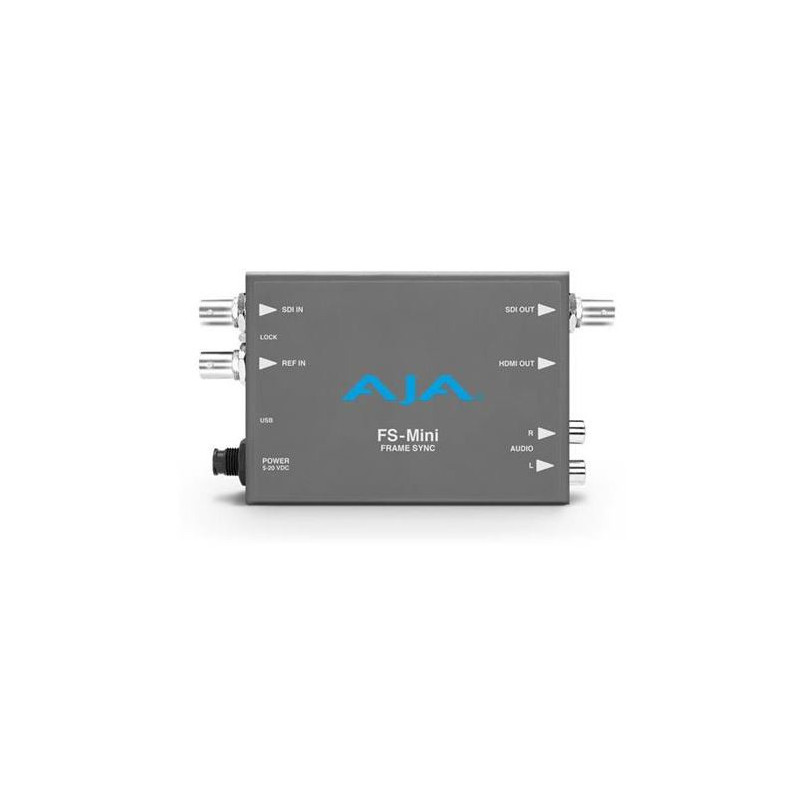

AJA FS-Mini-R0 - 3G-SDI Utility Frame Sync

1018491
0812321031973
AJA FS-Mini-R0 - 3G-SDI Utility Frame Sync
AJA FS-Mini-R0 - 3G-SDI Utility Frame Sync
3G-SDI Utility Frame Sync, SDI and HDMI simultaneous outputs
... learn more
Visuals Price
825.79 CHF VAT excl.

892.68 CHF Inc. VAT

Manufacturer price 869,25 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

AJA 3G SDI utility frame synchroniser
The FS-Mini is a broadcast-quality utility frame synchroniser that incorporates the proven reliability of AJA's FS frame synchronisation technology into a portable Mini-Converter supporting frame synchronisation of unsynchronised 3G-SDI, HD and SD video signals at an affordable price.
The FS-Mini allows users to synchronise and convert a wide range of video formats to their internal standard with 3G-SDI input and output, HDMI output and 2-channel RCA audio output. The FS-Mini also provides high-quality up-conversion, down-conversion and cross-conversion. The device also features a reference input that can be used to lock to a local reference. It can be simply controlled via local DIP switches or USB with AJA's Mini-Config application.
The FS-Mini is designed to meet the demands of broadcast engineering and live event production whilst offering incredible flexibility. It receives an unsynchronised signal, synchronises it, processes it and automatically routes it to the SDI output for production use and to the HDMI output for monitoring. The user selects the 2 audio channels that are routed to the RCA-type monitoring audio outputs.
USB and Mini-Config support
AJA's free Mini-Config software can be used with any USB-compatible AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information on current input and output formats. Control all settings of any supported AJA Mini-Converter and load firmware updates from AJA that add new features.
AJA Mini-Matrix
Information on the complete range of AJA Mini-Converters is now available as a mobile application on iOS. The Mini-Converter product range is extensive and this application helps you find the right converter for any situation, wherever you are.
Universal power supply
All AJA Mini-Converters are supplied with a universal power supply that includes international plug connections for worldwide use.
Compact and portable
AJA Mini-Converters are small enough to fit behind a monitor, at the back of a rack or directly on a camera mount. A locking power connector cannot be accidentally disconnected and an optional P-TAP power cable allows battery power in remote locations.




Specifications



Video formats

(2K) 2048 x 1080P
(2K) 2048 x 1080PsF
(HD) 1920 x 1080p
(HD) 1920 x 1080Psf
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 625i
(SD) 525i
YCbCr, 4:2:2, 10-bit

Digital video input

1x 3G-SDI input, 1x BNC
3G/HD/SD, SMPTE-259/292/424: 3G-SDI Level A single link, SMPTE-425-1
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Digital video output

1x 3G-SDI output, 1x BNC
3G/HD/SD, SMPTE-259/292/424: 3G-SDI Level A single link, SMPTE-425-1
(HD) 1080p 23.98 (for 23.98 video inputs)
(HD) 1080p 24 (for 24 video inputs)
(HD) 1080p 25 (for 50 video inputs)
(HD) 1080p 29.97 (for 59.94 video inputs)
(HD) 1080p 30 (for 60 video inputs)
(HD) 1080p 50 (for 50 video inputs)
(HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
(HD) 1080p 60 (for 24, 30 or 60 video inputs)
(HD) 1080PsF 23.98 (for 23.98 video inputs)
(HD) 1080PsF 24 (for 24 video inputs)
(HD) 1080PsF 25 (for 50 video inputs)
(HD) 1080PsF 29.97 (for 59.94 video inputs)
(HD) 1080Psf 30 (for 30 or 60 video inputs)
(HD) 1080i 59.94 (for 23.98 or 59.94 video inputs)
(HD) 1080i 60 (for 24, 30 or 60 video inputs)
(HD) 1080i 50 (for 25 or 50 video inputs)
(HD) 720p 50 (for 50 video inputs)
(HD) 720p 59.94 (for 23.98, 59.94 video inputs)
(HD) 720p 60 (for 24, 30 or 60 video inputs)
(SD) 625i 50 (for 25 or 50 fps inputs)
(SD) 525i 59.94 (for 23.98 or 59.94 video inputs)

Digital monitoring output

1x standard HDMI type A connector:
HD/SD
Colour space, YCbCr or RGB
Bit depth, 8 or 10
RGB range, SMPTE or full range

Video processing

Frame rate conversion/film cadence (3:2) removal/insertion
Freeze (on loss of input signal) on black or last valid frame
AFD input detection, down-conversion control
Nominal HD/SD video delay, 1 frame

Up-conversion

10-bit hardware
Pillar 4x3: results in a 4x3 image in the centre of the screen with black bars on the sides
Pillar 14x9: results in a slightly zoomed 4x3 image to fill a 14x9 image with black bars on the sides
Full screen: results in a 4x3 image stretched horizontally to fill a 16x9 screen
Letterbox to full screen: results in a zoomed image to fill the full screen
Zoom wide: results in a combination of zoom and horizontal stretch to fill a 16x9 screen; this setting will introduce a slight change in aspect ratio

Down-conversion

10-bit hardware
Crop: The image is cropped to fit the new screen size
Anamorphic: The HD image is converted to full-screen SD with a 16x9 aspect ratio
14x9: The image is slightly reduced whilst preserving the aspect ratio, black is added at the top and bottom and the left and right sides are cropped
Auto AFD: Automatically selects the best down-conversion mode based on the Active Format Description (AFD) code of the input video

Letterbox: The image is reduced with black added at the top and bottom of the image area, with the aspect ratio preserved

Cross-conversion

10-bit hardware
1080i to 720p
720p to 1080i
720p to 1080PsF

Aspect ratio conversion for SD to SD

Letterbox: Converts anamorphic SD material into a letterbox image
H Crop: Produces a horizontal stretch effect on the image; converts anamorphic SD to full screen
Pillarbox SD: Produces an image in the centre of the screen with black borders on the left and right and an anamorphic image in the centre
V Crop: Converts letterbox SD material into an anamorphic image
14x9: Anamorphic to 14x9 conversion

Digital audio input

48 kHz sampling rate
1x embedded SDI input: 16 channels, 24-bit (20-bit SD), SMPTE-272/29

Digital audio output

48 kHz sampling rate
1x embedded SDI output: 16 channels, 24-bit (20-bit SD), SMPTE-272/299

Audio inputs/outputs

16-channel embedded SDI audio input
16-channel embedded SDI audio output
2 or 8-channel HDMI audio output
2x RCA-type analogue outputs at -10 dBu (nominal)

Reference input

External, 1x BNC
Black burst or tri-level sync
75 ohm termination

Synchronisation

Lock to external reference
Lock to SDI input
Free-run operation

HDCP

The FS-Mini does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the FS-Mini are not encrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs

User interface

USB port used with supplied cable and Mini-Config software application to configure the device via PC or Mac
External DIP switches

Power supply

+5VDC regulated, 9 Watts, power supply required

Environment

Safe operating temperature range: 0 to 40 °C (32 to 104 °F)
Safe storage temperature (power off): -40 to 60 °C (-40 to 140 °F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3000m (<10000')

Dimensions (W x D x H)

5.8 x 3.1 x 1.0" (14.73 x 7.87 x 2.54 cm)

Weight

0.7 lb (0.32 kg)
