Single-channel AJA SMPTE ST 2110 IP decoder for video and audio
Monitor ST 2110 video and audio from anywhere on the network
The IPR-10G2-SDI is a SMPTE ST 2110 to SDI Mini-Converter suited for point-of-use applications, particularly for source monitoring and 3G-SDI output to compatible devices. With two 3G-SDI outputs mirroring the source video, you can feed a display and simultaneously connect in 3G-SDI.
With 3G/1.5G-SDI routers often at maximum capacity whilst installations await their transition to IP, there is enormous advantage in being able to send video sources from a stream, camera, router or edit bay via IP and provide SDI monitoring at destination whilst feeding your video and audio further down a 3G-SDI chain.

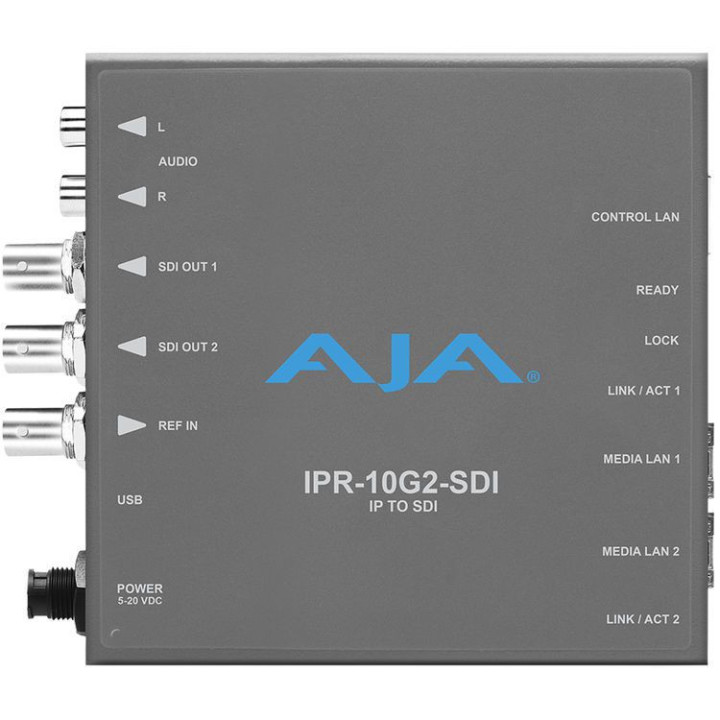

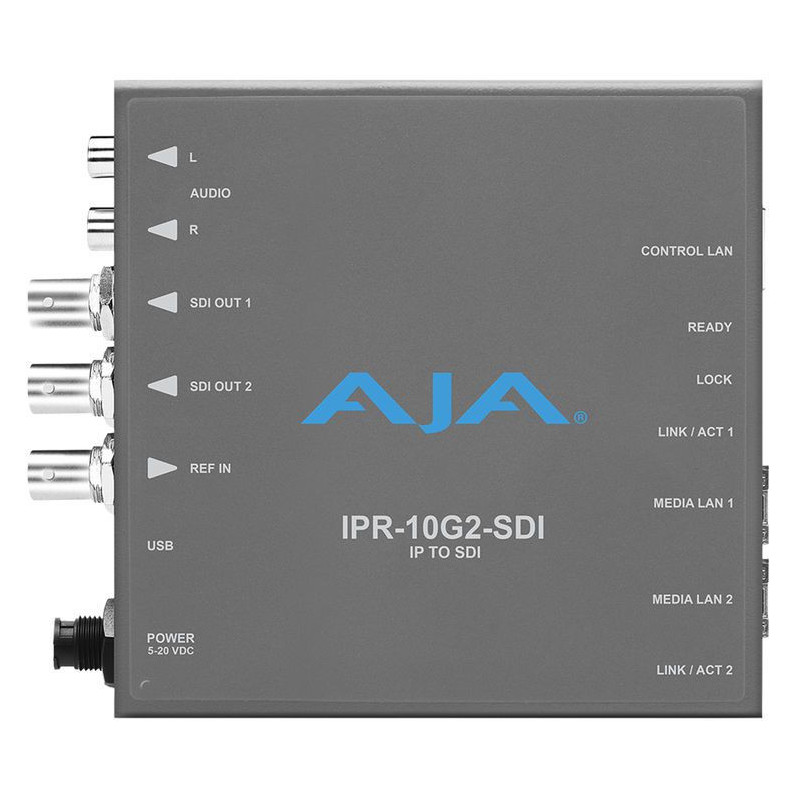

The AJA IPR-10G2-SDI receives SMPTE ST 2110 IP video and audio, then formats the data for 3G-SDI output.
Audio associated with the video stream is extracted, synchronised, then embedded into the SDI interface as well as on an analogue RCA output.
Workflow
The IPR-10G2-SDI provides two SDI outputs from SMPTE ST 2110 video and audio over IP compatible devices. Combine your IPR-10G2-SDI units with AJA KONA IP (I/O card for workstations) to instantly create a true ST 2110 workflow for IP video production and monitoring.
User control
The IPR-10G2-SDI offers two main control methods. The Ethernet Control LAN port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, as well as firmware updates.
- 1x RJ-45 (IEC 60603-7) for Ethernet 10/100/1000 Base-T (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
- Web and REST clients supported
- 1x USB 2.0 Mini-B connector (IEC 62680-1)
- AJA eMini network configuration
Universal power supply
All AJA Mini-Converters are supplied with a universal power supply that includes international connectors for worldwide use.
Compact and portable
AJA Mini-Converters are compact enough to be installed behind a monitor, at the back of a rack or directly on a camera mount. A lockable power connector cannot accidentally disconnect and an optional P-TAP power cable enables battery power in remote locations.
|
|
Specifications
|
|
|
Video formats
|
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
|
|
Video quality
|
10-bit, 4:2:2, uncompressed
|
|
Discovery, registration and control
|
NMOS
Ember Plus (no discovery, control only)
|
|
Media transport interfaces
|
SMPTE ST 2110
2x SFP+ cages - SFPs not included
Recommended 10 GigE SFP+ modules:
Arista Networks SFP-10G-SR Compatible 10GBASE-SR
Fiberstore SFP-10GSR-85 10G SFP+ 850nm
Finisar FTLX1471D3BCL (for single mode 1310nm)
Mellanox MFM1T02A-SR 850nm 10G
|
|
IP video input
|
SMPTE ST 2110
Single-channel input
Dual channel input for seamless switching (based on SMPTE ST 2022-7)
|
|
Digital video output
|
2x BNC 3G SDI (single source, mirrored output)
4:2:2 10-bits/pixel (embedded audio)
|
|
Digital audio output
|
Up to 8 channels, embedded SDI audio, 24-bit per channel, 48 kHz synchronous
|
|
Analogue audio output
|
2x RCA analogue audio
Levels at -10 dBu (nominal)
|
|
Reference
|
1x BNC
Analogue black reference signal or HD tri-level sync
Reference input terminated at 75 ohms
|
|
User controls
|
1x RJ-45 for Ethernet 10/100/1000 Base-T
Web and REST clients supported
1x USB 2.0 Mini-B connector
AJA eMini network configuration via local computer
|
|
Dimensions (w x d x h)
|
5.07" x 0.94" x 5.06" (128.78 x 23.88 x 128.52 mm)
|
|
Weight
|
0.6 lb (0.3 kg)
|
|
Power supply
|
5-20VDC regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)
|
|
Environment
|
Safe operating temperature: 0 to 40 °C (32 to 104 °F)
Safe storage temperature (power off): -40 to 60 °C (-40 to 140 °F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3,000 metres (<10,000 feet)
|
