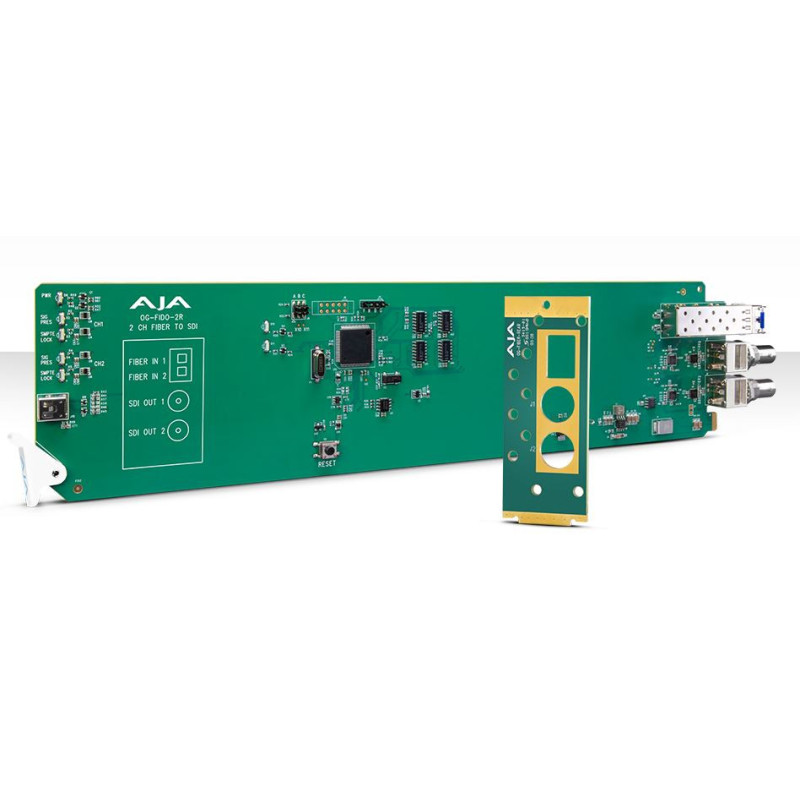

Aja 2-channel single-mode fibre LC to 3G SDI receiver
The OG-FiDO-2R is a state-of-the-art, openGear-compatible, 2-channel fibre to 3G-SDI converter, allowing 3G-SDI signals to be extended up to 10 km (32,808 feet) over standard single-mode fibre optic cable. The two fibre inputs are completely independent, allowing different 3G-SDI rates on each channel.
Connectivity
The fibre inputs are resynchronised with the best input jitter tolerance in its class. 3G-SDI rates of 270 Mb, 1.5 Gb and 3 Gb are supported. The fibre connector is fixed to the main board for increased reliability and cost savings.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of chassis-based products.
Flexible I/O
The modular rear panel allows for customised I/O connections per card (included with individual cards).
Built-in safety
The optional redundant power supply provides a secondary power source in case of main power supply failure.
Ethernet Access
A standard Ethernet connection allows access to the chassis via the Dashboard application for overall chassis communication.
Features
- Video formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 2x Single-mode LC Fibre
- Outputs: 2x BNC 3G-SDI
- Monitoring via openGear DashBoard
- Input presence and SMPTE lock LEDs
- Automatic detection and resynchronisation
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic selection
- Nominal wavelength: 1260-1620 nm
- Power: 2.5 watts
- Hot-swap compatible
- Compatible with openGear OGX, OG3 and DFR-8321 chassis
|
|
Specifications
|
|
|
Video formats
|
150 Mbps - 3 Gbps, format agnostic
|
|
Digital video input
|
2 independent multi-mode LC fibre inputs, SMPTE-297
Nominal wavelength: 850 nm
Optical sensitivity: -15dBm (min)
Overload power: 0dBm
|
|
Digital video output
|
2 independent 3G-SDI BNC outputs, SMPTE-259/292/424
|
|
Resynchronisation
|
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic selection
All other rates are passed through without resynchronisation
|
|
Dimensions (W x D x H)
|
4.6 x 1.71 x 0.85 inches (117 x 43.5 x 21.6 mm)
|
|
Weight
|
0.5 lb (0.3 kg)
|
|
Power supply
|
3 watts max
Uses 5-20VDC power supply
|
|
Environment
|
Safe operating temperature: 0 to 40°C (32 to 104°F)
Safe storage temperature (power off): -40 to 60°C (-40 to 140°F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3,000 metres (<10,000 feet)
|
