Aja 2-channel 3G SDI to single-mode LC fibre transmitter

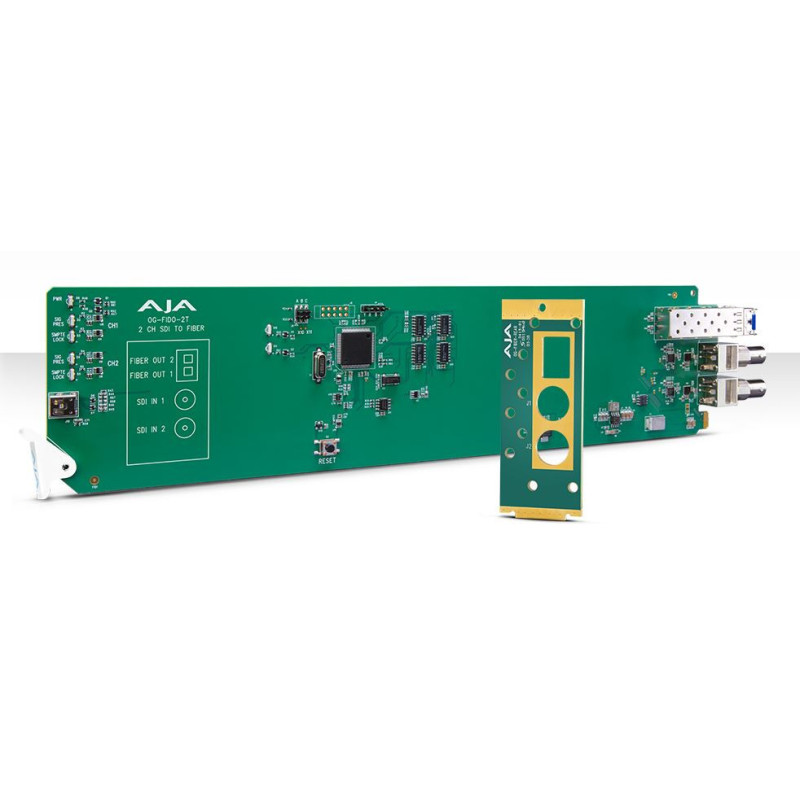

The OG-FiDO-2T is a state-of-the-art 2-channel 3G-SDI to fibre converter, openGear compatible, allowing 3G-SDI signals to be extended up to 10 km (32,808 feet) over standard single-mode fibre optic cable. The two 3G-SDI inputs are completely independent, allowing different 3G-SDI data rates to be carried on each channel.
Connectivity
The 3G-SDI inputs are resynchronised with first-class input jitter tolerance. 270 Mb, 1.5 Gb and 3 Gb 3G-SDI data rates are supported. The fibre connector is fixed to the main card for increased reliability and cost savings.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear represents the future of chassis-based products.
Flexible I/O
The modular rear panel allows for custom I/O connections per card (included with individual cards).
Built-in security
The optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet access
A standard Ethernet connection provides access to the chassis via the Dashboard application for global chassis communication.




Specifications



Video formats

150 Mbps - 3 Gbps, format independent

Digital video input

2-channel independent 3G-SDI BNC inputs, SMPTE-259/292/424

Digital video output

2-channel independent single-mode LC fibre outputs, SMPTE-297
Nominal wavelength: 1310 nm
Optical power: -5dBm (min), 0dBm (max)
Extinction ratio: 7.5dB (Typ)

Resynchronisation

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto-selection

All other data rates are transmitted without resynchronisation

User interface

openGear DashBoard network control software via Windows, macOS or Linux

Dimensions (W x D x H)

Standard openGear format, front and rear card. Two slots required per card

Weight

0.5 lb (0.3 kg)

Power supply

Compatible with openGear chassis, 2.5 watts max per card

Environment

Safe operating temperature: 0 to 40°C (32 to 104°F)
Safe storage temperature (powered off): -40 to 60°C (-40 to 140°F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: < 3,000 metres (< 10,000 feet)
