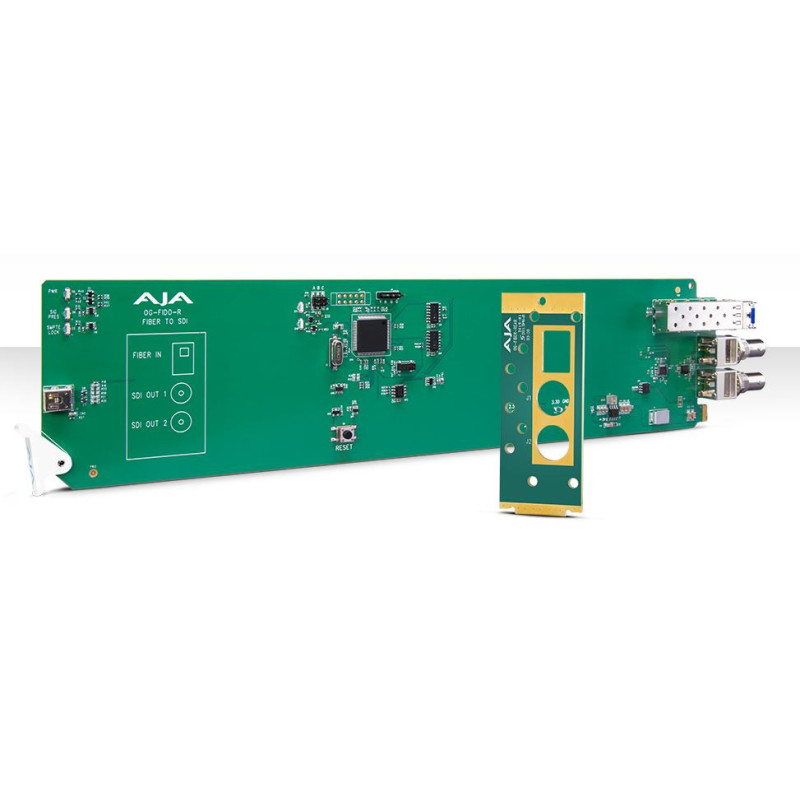

Aja single-channel LC single-mode fibre optic receiver to 3G SDI
The OG-FiDO-R is a state-of-the-art openGear-compatible converter, from fibre to 3G-SDI, enabling extension of 3G-SDI signals up to 10 km (32,808 feet) over standard single-mode fibre optic cable. The fibre input is resynchronised with best-in-class input jitter tolerance.
Connectivity
The fibre input is resynchronised with best-in-class input jitter tolerance. 3G-SDI data rates of 270Mb, 1.5Gb and 3Gb are supported. Supports single-mode fibre optic cables.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of frame products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Built-in redundancy
The optional redundant power supply provides a secondary power source in the event of primary power supply failure.
Ethernet access
A standard Ethernet connection provides access to the frame via the Dashboard application for global frame communication. Features
Features
- Video formats: 150 Mbps - 3 Gbps, format independent
- Input: 1x LC single-mode fibre
- Outputs: 2x BNC 3G-SDI (mirror)
- Monitoring via openGear DashBoard
- Input present LED and input SMPTE lock LED
- Automatic detection and resynchronisation
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto-select
- Nominal wavelength: 1260-1620 nm
- Power: 2.5 watts
- Hot-swappable
- Compatible with openGear OGX, OG3 and DFR-8321 frames
|
|
Specifications
|
|
|
Video formats
|
150 Mbps - 3 Gbps, format independent
|
|
Digital video input
|
1-channel LC single-mode fibre connector, SMPTE-297
Nominal wavelength: 1260 - 1620 nm
Optical sensitivity: -18dBm (min)
Overload power: -3dBm (min)
|
|
Digital video output
|
Paired dual 3G-SDI BNC outputs to 1 channel, SMPTE-259/292/424
|
|
Resynchronisation
|
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto-select
All other rates are passed through without resynchronisation
|
|
User interface
|
openGear DashBoard network control software via Windows, macOS or Linux
|
|
Dimensions (w x d x h)
|
Standard openGear format, front and rear card. Two slots required for each card.
|
|
Weight
|
0.5 lb (0.3 kg)
|
|
Power supply
|
Compatible with openGear frames, 2.5 watts max per card
|
|
Environment
|
Safe operating temperature: 0 to 40°C (32 to 104°F)
Safe storage temperature (powered off): -40 to 60°C (-40 to 140°F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3,000 metres (<10,000 feet)
|
