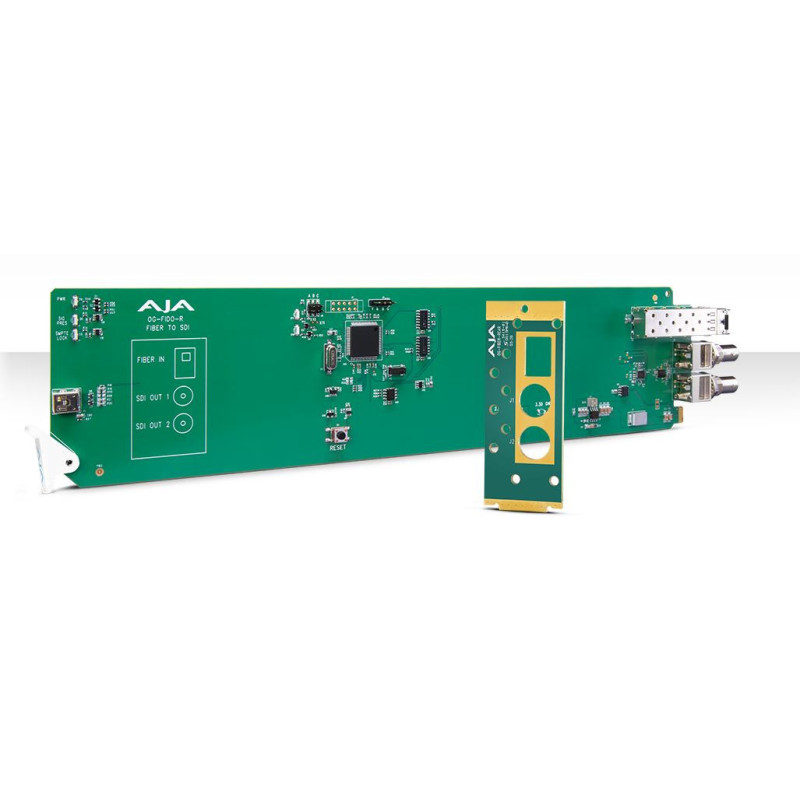

AJA - 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver

AJA OG-FIDO-R-MM - 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver

1018525
0812321031850
AJA OG-FIDO-R-MM - 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
AJA OG-FIDO-R-MM - 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver, DashBoard Support
... learn more
Visuals Price
816.76 CHF VAT excl.

882.92 CHF Inc. VAT

Manufacturer price 859,75 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

AJA 1-channel LC multimode fibre to 3G SDI receiver
The OG-FiDO-R-MM offers unrivalled flexibility and value for money for 3G-SDI fibre conversion, allowing cable lengths of up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for multimode fibre optic cables – useful for eliminating ground loop problems.
Connectivity
The fibre input is resynchronised with first-rate input jitter tolerance. 3G-SDI data rates of 270 Mb, 1.5 Gb and 3 Gb are supported. Supports multimode fibre cables.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear represents the future of chassis-based products.
Flexible I/O
The modular rear panel allows customised I/O connections per card (included with individual cards).
Integrated security
The optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet access
A standard Ethernet connection provides chassis access via the Dashboard application for global chassis communication.




Specifications



Video formats

150 Mbps – 3 Gbps, format independent

Digital video input

1-channel LC multimode fibre input, SMPTE-297

Nominal wavelength: 850 nm

Optical sensitivity: -15dBm (min)

Digital video output

Dual paired 1-channel 3G-SDI BNC outputs, SMPTE-259/292/424

Resynchronisation

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto-selection

All other data rates are transmitted without resynchronisation

User interface

openGear DashBoard network control software via Windows, macOS or Linux

Dimensions (W x D x H)

Standard openGear format, front and rear card. Two slots required for each card.

Weight

0.5 lb (0.3 kg)

Power supply

Compatible with openGear chassis, 2.5 watts max per card

Environment

Safe operating temperature: 0 to 40°C (32 to 104°F)
Safe storage temperature (powered off): -40 to 60°C (-40 to 140°F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3,000 metres (<10,000 feet)



1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver, DashBoard Support
