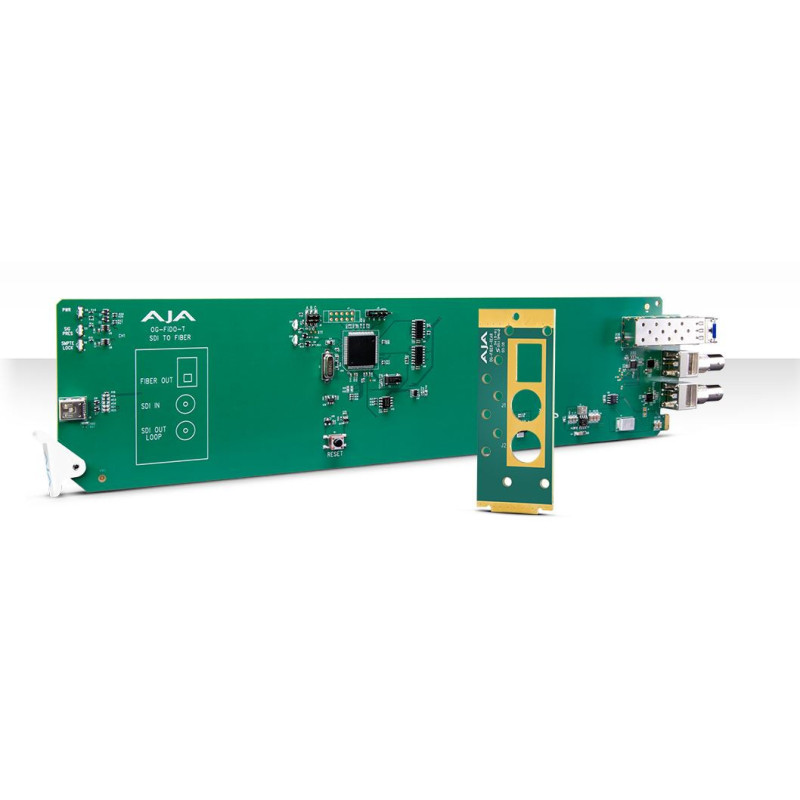

AJA - 1-Channel 3G-SDI to Single Mode LC Fiber Transmitter

AJA OG-FIDO-T - 1-Channel 3G-SDI to Single Mode LC Fiber Transmitter

1018526
0812321031843
AJA OG-FIDO-T - 1-Channel 3G-SDI to Single Mode LC Fiber Transmitter
AJA OG-FIDO-T - 1-Channel 3G-SDI to Single Mode LC Fiber Transmitter
1-Channel 3G-SDI to Single Mode LC Fiber Transmitter, DashBoard Support
... learn more
Visuals Price
527.96 CHF VAT excl.

570.73 CHF Inc. VAT

Manufacturer price 555,75 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

AJA 1-channel 3G-SDI to single-mode fibre LC transmitter
The OG-FiDO-T is a state-of-the-art openGear-compatible 3G-SDI to fibre converter, enabling 3G-SDI signals to be extended up to 10 km (32,808 feet) over standard single-mode fibre optic cable. The 3G-SDI input is resynchronised with best-in-class input jitter tolerance. A resynchronised 3G-SDI loop output is also provided.
Designed for use in openGear 2RU high-density chassis, including AJA's OG-X-FR chassis, the new DashBoard software for Windows, macOS and Linux provides remote control and monitoring of openGear architecture and offers convenient industry-standard options for configuration, monitoring and control via PC or local area network.
Connectivity
The 3G-SDI input is resynchronised with best-in-class input jitter tolerance. A resynchronised 3G-SDI loop output is also provided. 270Mb, 1.5Gb and 3Gb 3G-SDI data rates are supported. Supports single-mode fibre cables.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of chassis products.
Flexible I/O
Modular rear panel allows custom I/O connections per card (included with individual cards).
Built-in Safety
Optional redundant power supply provides a secondary power source in case of main power supply failure.
Ethernet Access
A standard Ethernet connection provides access to the chassis via the Dashboard application for overall chassis communication.
Specifications
Video formats: 150 Mbps - 3 Gbps, format agnostic
Inputs: 1x 3G-SDI with SDI loop output
Outputs: 1x 3G-SDI BNC; 1x single-mode LC fibre
Monitoring via openGear DashBoard
Input present and SMPTE lock LEDs for input
Automatic detection and resynchronisation
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic Selection
Nominal wavelength: 1310 nm
Power: 2.5 watts
Hot-swap compatible
Compatible with openGear OGX, OG3 and DFR-8321 chassis




Specifications



Video Formats

150 Mbps - 3 Gbps, format agnostic

Digital Video Input

1 independent 3G-SDI input with SDI loop output, SMPTE-259/292/424

Digital Video Output

1 independent 3G-SDI BNC output, SMPTE-259/292/424
1 multimode LC fibre connector, SMPTE-297
Nominal wavelength: 850 nm
Optical power: -7dBm (min), -2dBm (max)
Extinction ratio: 7.5dB (Typ)

Resynchronisation

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic Selection
All other data rates are transmitted without resynchronisation

User Interface

openGear DashBoard network control software via Windows, macOS or Linux

Dimensions (w x d x h)

Standard openGear format, front and rear card. Two slots required per card.

Weight

0.5 lb (0.3 kg)

Power Supply

Compatible with openGear chassis, 2.5 watts max per card

Environment

Safe operating temperature: 0 to 40°C (32 to 104°F)
Safe storage temperature (unpowered): -40 to 60°C (-40 to 140°F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: < 3,000 metres (< 10,000 feet)
