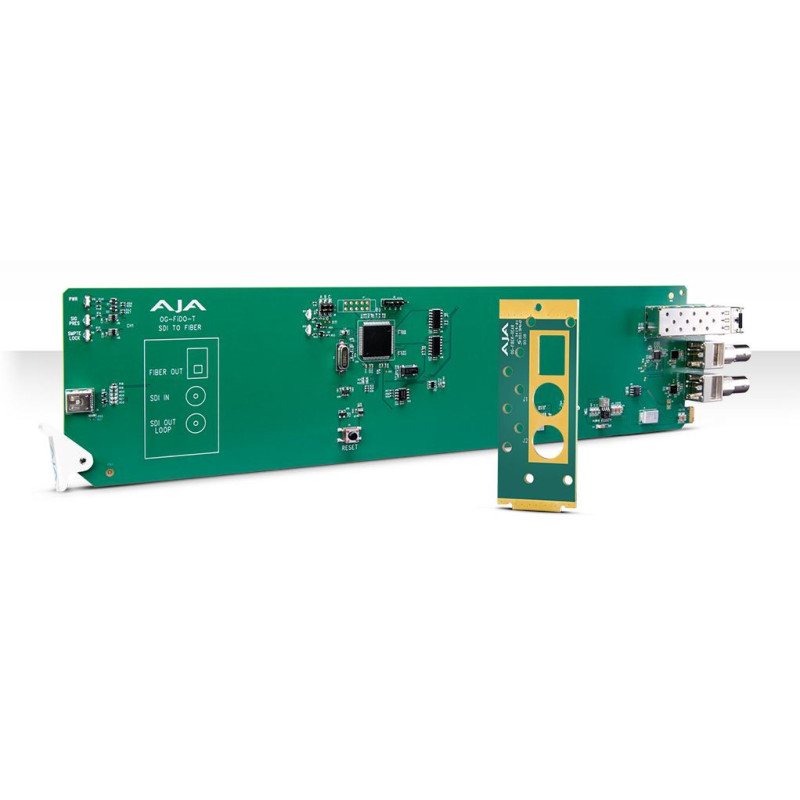

Aja 1-channel 3G SDI multimode LC fibre transmitter
OG-FiDO-T-MM offers unmatched flexibility and cost-effectiveness for 3G-SDI fibre conversion, enabling cable lengths up to 700 m (2,296 ft) for OM4 and 300 m (984 ft) for OM3 for multimode fibre optic cables* - useful for eliminating ground loop problems.
Designed for use in high-density 2RU openGear frames, including AJA's OG-X-FR frame, the new DashBoard software supported on Windows, macOS and Linux provides remote control and monitoring of openGear architecture and offers convenient, standard configuration, monitoring and control options via PC or local network.
Connectivity
The 3G-SDI input is resynchronised with first-class input jitter tolerance. A resynchronised 3G-SDI loop-through output is also provided. 270Mb, 1.5Gb and 3Gb 3G-SDI rates are supported. Supports multimode fibre optic cables.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rack products.
Flexible I/O
Modular rear panel allows custom I/O connections per card (included with individual cards).
Built-in security
Optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet access
A standard Ethernet connection provides access to the frame via the Dashboard application for overall frame communication.
|
|
Specifications
|
|
|
Video formats
|
150 Mbps - 3 Gbps, format independent
|
|
Digital video input
|
1-channel independent 3G-SDI input with SDI loop-through output, SMPTE-259/292/424
|
|
Digital video output
|
1-channel independent 3G-SDI BNC output, SMPTE-259/292/424
1-channel multimode LC fibre connector, SMPTE-297
Nominal wavelength: 850 nm
Optical power: -7dBm (min), -2dBm (max)
Extinction ratio: 7.5dB (Typ)
|
|
Resynchronisation
|
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic selection
All other rates are transmitted without resynchronisation
|
|
User interface
|
openGear DashBoard network control software via Windows, macOS or Linux
|
|
Dimensions (w x d x h)
|
Standard openGear format, front and rear card. Two slots required per card.
|
|
Weight
|
0.5 lb (0.3 kg)
|
|
Power supply
|
Compatible with openGear frames, 2.5 watts max per card
|
|
Environment
|
Safe operating temperature: 0 to 40 C (32 to 104 F)
Safe storage temperature (powered off): -40 to 60 C (-40 to 140 F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3,000 metres (<10,000 feet)
|
