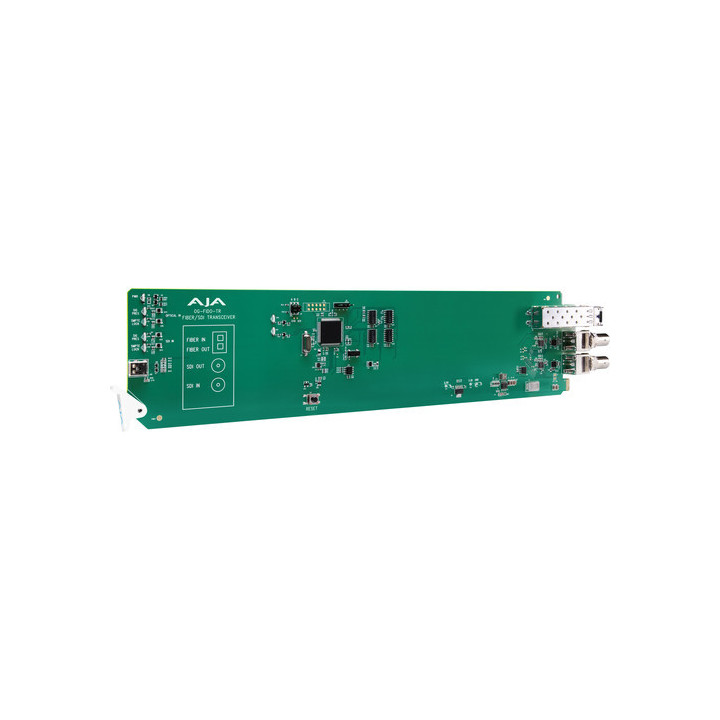

Aja 1-channel 3G SDI/LC multimode fibre LC transceiver
Connectivity
The fibre and 3G-SDI inputs are resynchronised with optimal input jitter tolerance. 3G-SDI data rates of 270Mb, 1.5Gb and 3Gb are supported. Both signal paths are independent and can have different data rates. Supports multimode fibre cables.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear represents the future of chassis-based products.
Flexible I/O
The modular rear panel allows customised I/O connections per card (included with individual cards).
Integrated security
The optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet access
A standard Ethernet connection provides chassis access via the Dashboard application for global chassis communication.
Features
– Video formats: 150 Mbps – 3 Gbps, format independent
– Inputs: 1x BNC 3G-SDI; 1x LC multimode fibre
– Outputs: 1x BNC 3G-SDI; 1x LC multimode fibre
– Monitoring via openGear DashBoard
– Input presence and SMPTE lock LEDs
– Automatic detection and resynchronisation
– 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto-selection
– Nominal wavelength: 850 nm
– Power: 2.5 watts
– Hot-swap compatible
– Compatible with openGear OGX, OG3 and DFR-8321 chassis
|
|
Specifications
|
|
|
Video formats
|
150 Mbps – 3 Gbps, format independent
|
|
Digital video input
|
1 independent 3G-SDI BNC input, SMPTE-259/292/424
1 LC multimode fibre input, SMPTE-297
Nominal wavelength: 850 nm
Optical sensitivity: -15dBm (min)
|
|
Digital video output
|
1 independent 3G-SDI BNC output, SMPTE-259/292/424
1 LC multimode fibre output, SMPTE-297
Nominal wavelength: 850 nm
Optical power: -7dBm (min), -2dBm (max)
Extinction ratio: 7.5dB (Typ)
|
|
Resynchronisation
|
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto-selection
All other data rates are transmitted without resynchronisation
|
|
User interface
|
openGear DashBoard network control software via Windows, macOS or Linux
|
|
Dimensions (W x D x H)
|
Standard openGear format, front slot and rear card. Two slots required for each card.
|
|
Weight
|
0.5 lb (0.3 kg)
|
|
Power supply
|
Compatible with openGear chassis, 2.5 watts max per card
|
|
Environment
|
Safe operating temperature: 0 to 40°C (32 to 104°F)
Safe storage temperature (powered off): -40 to 60°C (-40 to 140°F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3,000 metres (<10,000 feet)
|
