AJA - 4K HDMI to 4K 4x 3G-SDI

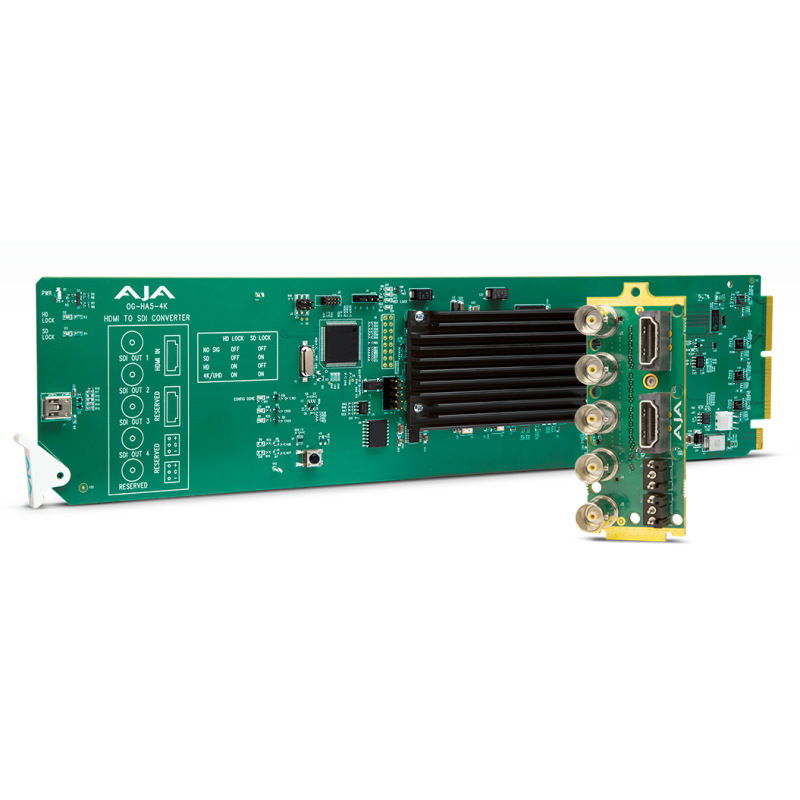

AJA OG-HA5-4K - 4K HDMI to 4K 4x 3G-SDI

1018531
0812321031416
AJA OG-HA5-4K - 4K HDMI to 4K 4x 3G-SDI
AJA OG-HA5-4K - 4K HDMI to 4K 4x 3G-SDI
4K HDMI to 4K 4x 3G-SDI, also supports HD-HDMI to HD SDI, DashBoard Support
... learn more
Visuals Price
780.66 CHF VAT excl.

843.90 CHF Inc. VAT

Manufacturer price 821,75 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Aja 4K HDMI to 4K 4X 3G SDI
Featuring four 3G-SDI outputs, the openGear-compatible OG-HA5-4K offers high-quality conversion of HDMI 2.0 video from DSLRs, mirrorless cameras, action cameras or consumer 4K camcorders to 4K/UltraHD 3G-SDI for use in professional workflows.
Connectivity
A growing number of 4K products use an HDMI output connection, which allows a full 4K signal to be transmitted over a single cable. Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to integrate these new devices. The OG-HA5-4K is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.
HDR
HDR or High Dynamic Range offers the ability to display a wider and richer range of colours, much brighter whites and much deeper and darker blacks than standard signals allow. This gives your images a more “dynamic” appearance and allows you to communicate natural and true-to-life colours to your audience.
4K and UltraHD
The OG-HA5-4K supports conversion of full 4K resolution (4096x2160) as well as UltraHD (3840x2160) from HDMI to 3G-SDI at frame rates up to 50/60 fps, providing an excellent solution for 4K cinema productions as well as UltraHD projects.
HD support
Not all work is in 4K. When not working in 4K, the OG-HA5-4K can still be a useful tool for converting HD-HDMI to HD-SDI. The OG-HA5-4K will automatically detect an incoming HDMI signal in HD resolution and convert it to a single 3G-SDI output, just like AJA's OG-HA5-Plus mini-converter.
Audio
Up to 2 channels of embedded audio in the incoming HDMI signal are transparently passed to the SDI output, ensuring your audio is always synchronised and perfectly carried with the SDI signal for use throughout your workflow.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear represents the future of frame-based products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Built-in security
Optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet access
A standard Ethernet connection provides access to the frame via the Dashboard application for overall frame communication.
Features
- openGear compatible card
- Supports HDMI 2.0 up to 60p in 4:4:4, 4:2:2 and 4:2:0
- Supports 4K/UltraHD SDI mapping in quadrant (square division) and 2SI (two sample interleave)
- 4 x 3G-SDI outputs
- Controlled by DashBoard network control software
- HD resolutions supported
- HDR infoframe analysis with AJA DashBoard
- Embedded audio support
- Compatible with openGear OGX, OG3 and DFR-8321 frames




Specifications



Video formats

(4K) 4096 x 2160p
(UltraHD) 3840 x 2160p
(2K) 2048 x 1080p
(HD) 1920 x 1080p
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576p
(SD) 720 x 576i
(SD) 720 x 480p
(SD) 720 x 480i

Digital video input

1x HDMI Type A connector, HDMI v2.0 YCbCr 4:2:2/4:4:4/4:2:0 RGB 4:4:4, SMPTE or full level 8, 10 or 12-bit (4K/UltraHD HFR 4:4:4 limited to 8-bit) HDR infoframe decoder as defined in CTA-861.3 and HDMI v2.0a (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 (SD) 720 x 576p 50 (SD) 720 x 576i 50 (SD) 720 x 480p 59.94 (SD) 720 x 480i 59.94

HDCP decryption

Not supported. By definition, SDI outputs are not encrypted.

Digital video output

4x BNC 3G-SDI, SMPTE-259/292/424 YCbCr 4:2:2/4:4:4 RGB 4:4:4, SMPTE or full level 10-bit Two Sample Interleave (2SI) or Square Division (quadrant) source mapping 4x 3 Gb SDI (Level A or B-Dual Link) (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30 (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30 4x 1.5 Gb SDI (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30 (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30 2x 3 Gb SDI (Level B-Dual Stream) (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30 (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30 (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30 1x 3 Gb SDI (Level A or B-Dual Link) (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 1x 1.5 Gb SDI (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30 (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94

Digital audio input

HDMI embedded audio, 24-bit, 8 channels

Digital audio output

SDI embedded audio, 24-bit, 8 channels

Audio input/output

8-channel SDI embedded audio output

8-channel HDMI audio input

User interface

openGear DashBoard network control software via Windows, macOS or Linux

Dimensions (w x d x h)

Standard openGear format, front and rear card. Two slots required per card.

Weight

0.3 kg / 0.5 lb

Power

Compatible with openGear frames, 10.0 watts max per card

Safe operating temperature

0 to 40°C (32 to 104°F)

Safe storage temperature (power off)

-40 to 60°C (-40 to 140°F)

Operating relative humidity

10-90% non-condensing

Operating altitude

<3,000 metres (<10,000 feet)



4K HDMI to 4K 4x 3G-SDI, also supports HD-HDMI to HD SDI, DashBoard Support
