Symetrix - 4 Channel Analog Input Card

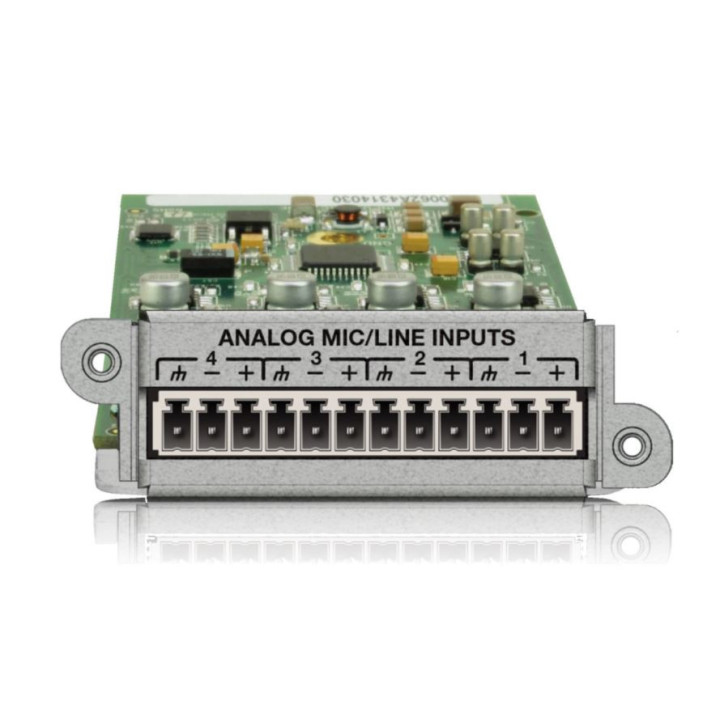

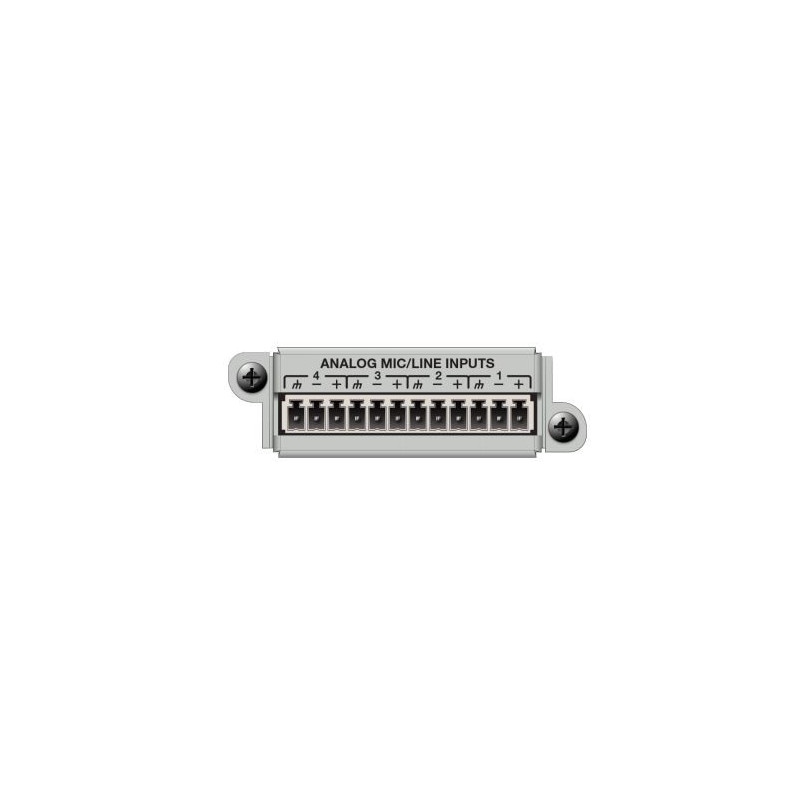

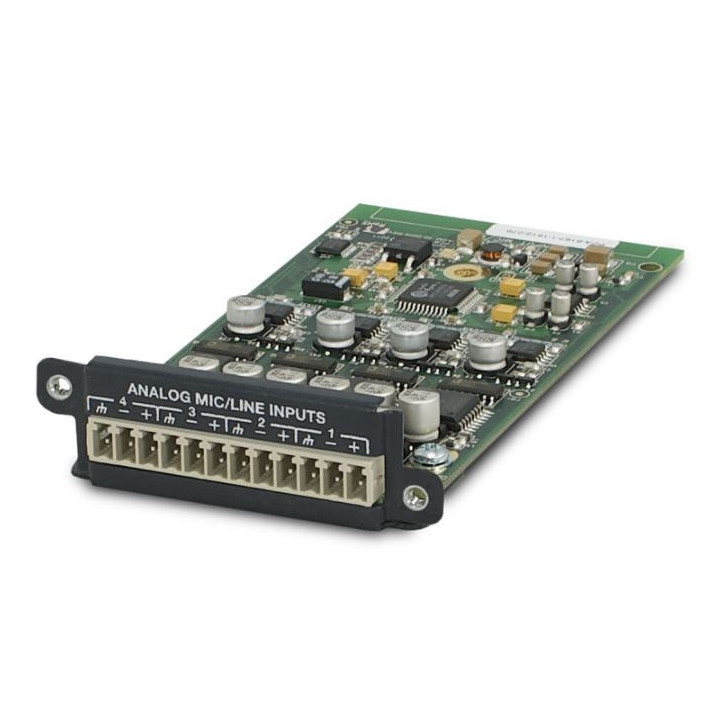

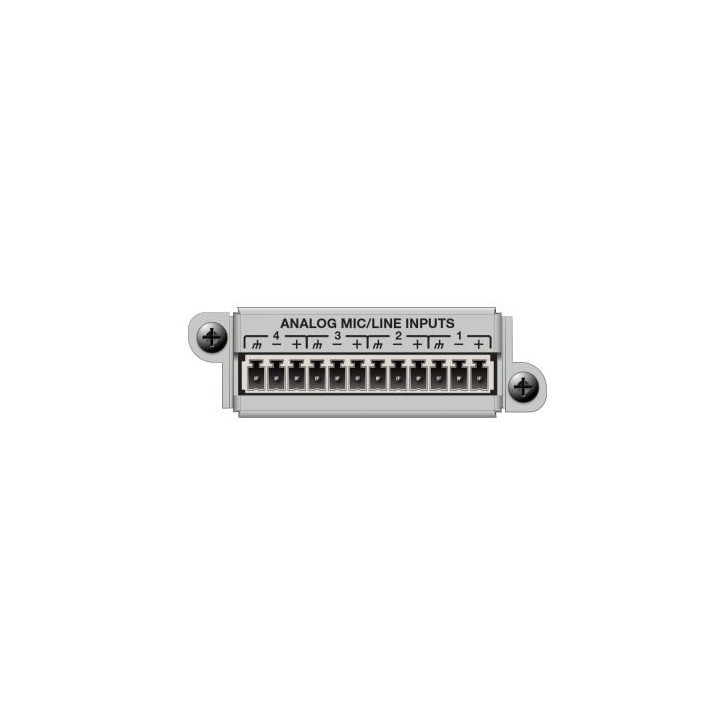

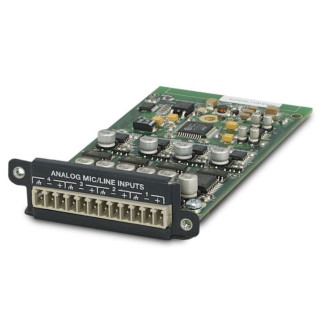

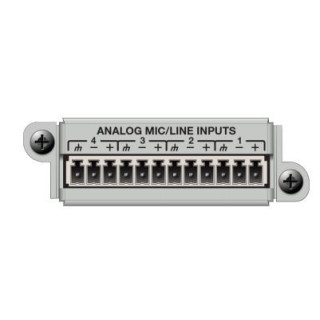

Symetrix 80-0062-B - 4 Channel Analog Input Card
1029102
Expands analog input capacity of Radius NX, Radius and Edge DSPs
Visuals Price
673.17 CHF
VAT excl.
727.70 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Symetrix 4-channel analogue input card
- Increases the analogue input capacity of the Radius NX, Radius and Edge DSPs.
- Microphone and/or line level inputs.
- +48V @10mA phantom power.
- Signal adaptation. 5 analogue gain settings with digital adjustment of +/-24dB.
- A/D converters with extended dynamic range>115 dB.
- 3.81 mm terminal blocks, 12-position connectors with strain relief tabs.
Compliance
- EN 55103-1, EN 55103-2, FCC Part 15, RoHS.
- Increases the analogue input capacity of the Radius NX, Radius and Edge DSPs.
- Microphone and/or line level inputs.
- +48V @10mA phantom power.
- Signal adaptation. 5 analogue gain settings with digital adjustment of +/-24dB.
- A/D converters with extended dynamic range>115 dB.
- 3.81 mm terminal blocks, 12-position connectors with strain relief tabs.
Compliance
- EN 55103-1, EN 55103-2, FCC Part 15, RoHS.
Expands analog input capacity of Radius NX, Radius and Edge DSPs
