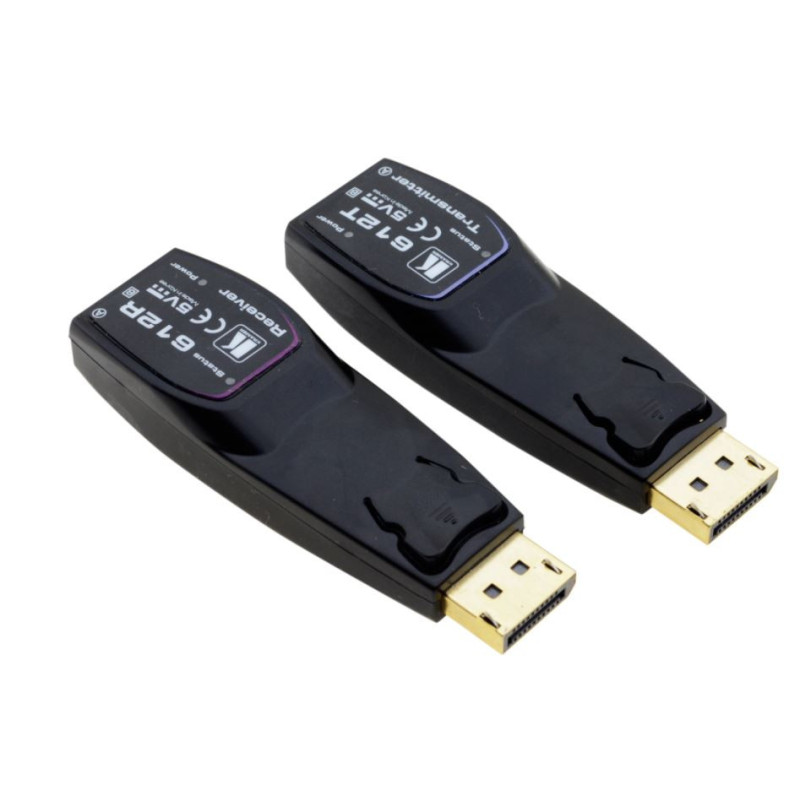

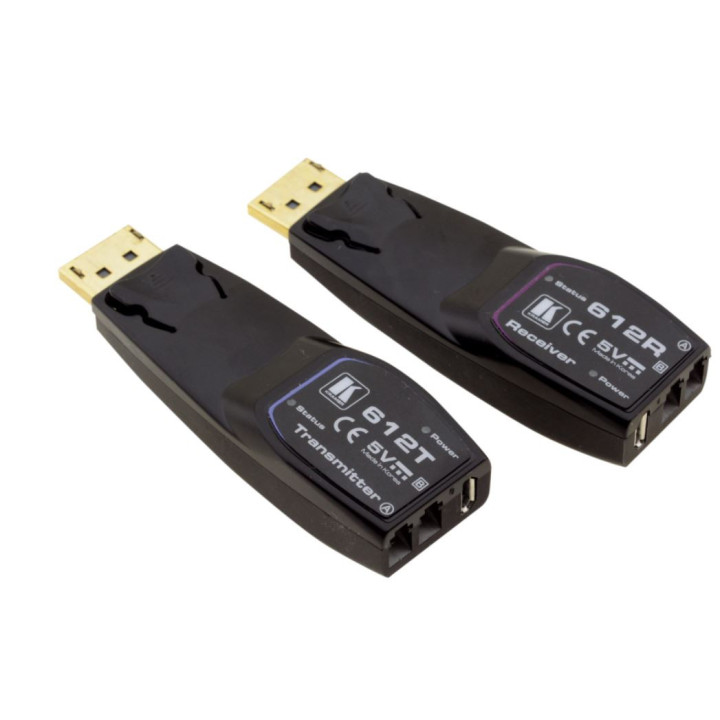

Kramer 612R/T(SET) - DisplayPort 1.2 Optical Receiver & Transmitter
2,210.75 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The 612R/T is a compact fibre optic transmitter and receiver capable of extending uncompressed DisplayPort 1.2 over fibre optic cable. This extension set supports 4K@60 (4:4:4) resolution up to 200 metres (656 feet) over dual LC multimode fibre optic cable.
Features
- Compliant with DisplayPort v1.2 specifications.
- Max. resolution — 4096x2160@60Hz.
- Max. data rate — 21.6 Gbit/s (5.4 Gbit/s per lane).
- Supports DP dual mode (DP++).
- Max. extension — 200 metres (656 feet) over dual LC OM3 multimode fibre optic cable.
- Supports auxiliary channel /I²C over fibre.
- Compact design — For easy plug and play installation.
- All-fibre connectivity for secure applications.
|
|
Specifications |
|
|
Video |
|
|
|
Max. Resolution |
4K @60Hz 4:4:4 (4096x2160) |
|
|
Data Rate |
Maximum 21.6 Gbit/s (HBR2) |
|
|
Compliance |
Supports HDCP 2.2, EDID and DPCP (DisplayPort Content Protection) |
|
|
DisplayPort Support |
DP Dual Mode (DP++) |
|
|
Ports |
|
|
|
612T (source side) |
Gold-plated Male DisplayPort |
|
|
612R (display side) |
Gold-plated Male DisplayPort |
|
|
612T (source side) |
Micro USB (for power) |
|
|
612R (display side) |
Micro USB (for power) |
|
|
Power Supply |
|
|
|
5V |
Via USB source, external source, or DisplayPort pin #20 |
|
|
Recommended Cable |
|
|
|
Structure |
OM3 Dual Multimode Fibre Optic (50/125µm) |
|
|
Optical Connectors |
LC Duplex Connectors |
|
|
Max. Fibre Optic Cable Attenuation (λ=850nm) |
2.5 dB/km |
|
|
Max. Skew |
0.4 ns |
|
|
Max. Insertion Loss |
0.5 dB |
|
|
Total Optical Attenuation |
1 dB max. @ 200 m / 656 feet extension |
|
|
Maximum Length |
200m (656ft) |
|
|
Environmental Conditions |
|
|
|
Operating Temperature |
0° to +50°C (32° to 122°F) |
|
|
Storage Temperature |
–30° to +70°C (–22° to 158°F) |
|
|
Operating Humidity |
0 to 85% |
|
|
Standards Compliance |
|
|
|
CE |
EN 55032 : 2012/AC : 2013 (Class A), EN 61000–3–2:2014, EN 61000–3–3:2013, EN 55024:2010, EN 60950–1:2006+ A11 : 2009+A1:2010+A12:2011+A2:2013 |
|
|
FCC |
CFR 47 Part 15 SUBPART B, Section 15.101 |
|
|
Environment |
RoHS (2011/65/EU) |
