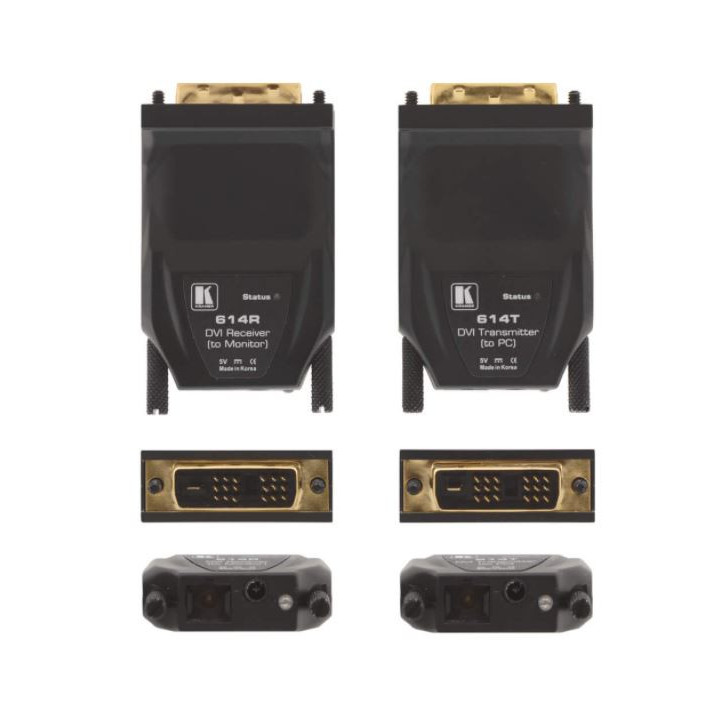

Kramer 614R/T(SET)/EU - 1-Fiber Detachable DVI Module (Rx & Tx Set)
1036099
1-Fiber Detachable DVI Module (Rx & Tx Set)
Visuals Price
1,358.30 CHF
VAT excl.
1,468.32 CHF Inc. VAT
Manufacturer price 1 598,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Kramer 1-fibre detachable DVI module (Rx and Tx kit)

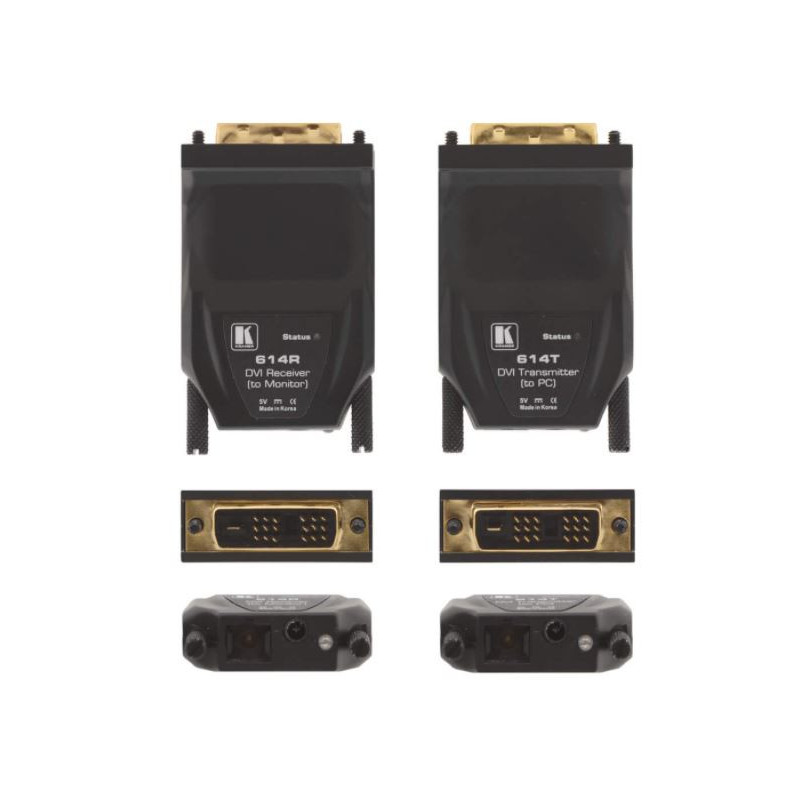

The 614T and 614R form a compact and lightweight detachable optical transmitter-receiver pair. They transmit uncompressed DVI resolutions up to 1920x1200 at 60 Hz using a single multimode fibre optic cable with SC connectors. The 614T converts the DVI signal into an optical signal which it transmits to the 614R. The 614R decodes the optical signals into a DVI signal.
Features
- Max. data rate — 4.95 Gbit/s (1.65 Gbit/s per graphic channel).
- Max. resolution — Up to WUXGA, 2K or 1080p (XGA not supported).
- HDTV compatible.
- Non-HDCP compliant.
- Standards compliance — Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
- Laser standards compliance — IEC 60825-1, FDA 21CFR1040; Class 1 Laser: laser product safety.
- System range — Up to 500 m (1640 ft) (multimode).
- EDID capture — Copies and stores the EDID from a display device (614T).
- EMI/RFI free.
- Cable — 1 SC multimode fibre optic cable.
- Power — External mains adapters (supplied) or 5 V DC from source (auto-sensing).
Applications
- Digital flat panel displays and plasma screens used in medical, commercial and travel applications
- Conference rooms and auditoriums
- Interactive kiosks with digital flat panel displays for information presentation
- LED panels in streets and stadiums
The 614T and 614R form a compact and lightweight detachable optical transmitter-receiver pair. They transmit uncompressed DVI resolutions up to 1920x1200 at 60 Hz using a single multimode fibre optic cable with SC connectors. The 614T converts the DVI signal into an optical signal which it transmits to the 614R. The 614R decodes the optical signals into a DVI signal.
Features
- Max. data rate — 4.95 Gbit/s (1.65 Gbit/s per graphic channel).
- Max. resolution — Up to WUXGA, 2K or 1080p (XGA not supported).
- HDTV compatible.
- Non-HDCP compliant.
- Standards compliance — Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
- Laser standards compliance — IEC 60825-1, FDA 21CFR1040; Class 1 Laser: laser product safety.
- System range — Up to 500 m (1640 ft) (multimode).
- EDID capture — Copies and stores the EDID from a display device (614T).
- EMI/RFI free.
- Cable — 1 SC multimode fibre optic cable.
- Power — External mains adapters (supplied) or 5 V DC from source (auto-sensing).
Applications
- Digital flat panel displays and plasma screens used in medical, commercial and travel applications
- Conference rooms and auditoriums
- Interactive kiosks with digital flat panel displays for information presentation
- LED panels in streets and stadiums
|
|
Specifications |
|
|
Inputs |
1 DVI (614T), 1 multimode fibre optic with SC connector (614R) |
|
|
Outputs |
1 multimode fibre optic with SC connector (614T), 1 DVI (614R) |
|
|
Max. data rate |
4.95 Gbit/s (1.65 Gbit/s per graphic channel), up to WUXGA, 2K or 1080p with 36-bit colour depth (does not support XGA) |
|
|
Max. range |
500 m (1640 ft) over 50/125 multimode fibre at WUXGA (1920x1200), 60 Hz refresh rate |
|
|
Power consumption |
5 V DC, 300 mA max. (614T) |
|
|
Operating temperature |
0° to +40°C (32° to 104°F) |
|
|
Storage temperature |
–40° to +70°C (–40° to 158°F) |
|
|
Humidity |
10% to 85%, RH non-condensing |
