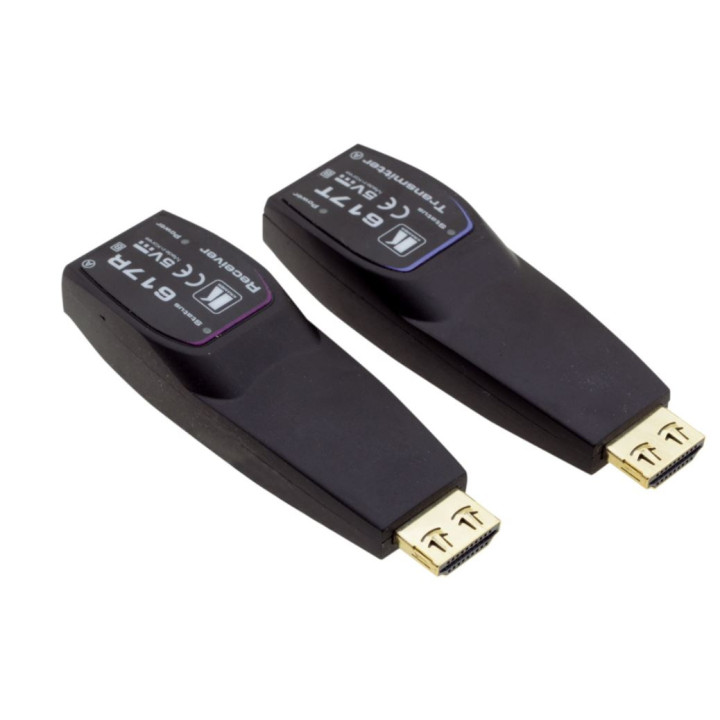

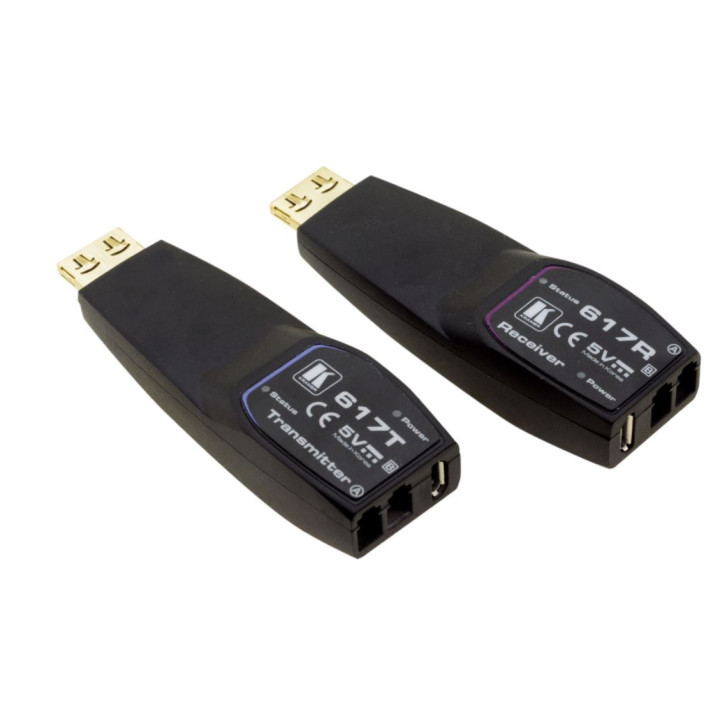

Kramer 617R/T(SET) - HDMI 2.0 Optical Receiver & Transmitter
1,545.51 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The 617R/T is a compact fibre optic transmitter and receiver capable of extending HDMI signals over fibre optic cable. This extension set supports 4K@60 (4:4:4) resolution up to 200 metres (656 feet) over dual LC multimode fibre optic cable.
Features
- Max. resolution — 4K@60(4:4:4).
- Max. data rate — 18Gbit/s.
- HDMI support — HDCP 2.2, EDID and CEC. 18Gbit/s, 3D content transmission, and HDR10 as specified in HDMI 2.0.
- High-quality connectors — 24K gold-plated and corrosion-resistant for the best possible connectivity.
- Pull-resistant K-Lock connectors — Provides 15lbs retention force for a slip-free connection.
- Max. extension — 200m (656ft) over dual LC OM3 multimode fibre optic cable.
- Compact design — For easy plug and play installation.
- All-fibre connectivity for secure applications.
|
|
Specifications |
|
|
Video |
|
|
|
Max. Resolution |
4K @60Hz 4:4:4 (4096x2160) |
|
|
Data Rate |
Maximum 6 Gbit/s per channel |
|
|
Compliance |
Supports HDMI 2.0, HDCP 2.2, EDID and CEC |
|
|
Ports |
|
|
|
617T (source side) |
HDMI male connector |
|
|
617R (display side) |
HDMI male connector |
|
|
617T (source side) |
Micro USB (for power) |
|
|
617R (display side) |
Micro USB (for power) |
|
|
Power Supply |
|
|
|
5V |
Via USB source, via external source, or HDMI PIN #18 (617T only) |
|
|
Power Consumption |
<2.5W |
|
|
Recommended Cable |
|
|
|
Structure |
Dual OM3 multimode fibre optic (50/125µm) |
|
|
Optical Connectors |
Duplex LC connectors |
|
|
Max. fibre optic cable attenuation (λ=850nm) |
2.5dB/KM |
|
|
Max. Skew |
0.4ns |
|
|
Max. Insertion Attenuation |
0.5dB |
|
|
Total optical attenuation |
1dB max at 200m (656ft) extension |
|
|
Maximum Length |
200m (656ft) |
|
|
Environmental Conditions |
|
|
|
Operating Temperature |
0° to +50°C (32° to 122°F) |
|
|
Storage Temperature |
-30° to +70°C (-22° to 158°F) |
|
|
Operating Humidity |
0 to 85% |
|
|
Standards Compliance |
|
|
|
CE |
EN 55032:2012/AC: 2013 (Class A), EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010 |
|
|
FCC |
CFR 47 Part 15 SUBPART B Class B, Section 15.101 |
|
|
Environmental |
RoHS (2011/65/EU) |
