AJA HD10AVA-R0 - HD-series Miniconverters
50_USED
- Used
295.00 CHF
VAT excl.
318.90 CHF Inc. VAT
Manufacturer price 735,00 CHF VAT excluded
1 piece(s) in stock
-
Delivery
- Available, shipped today
-
In-store pickup
- Geneva, pickup available within 1H
- Zurich, pickup available within 24H

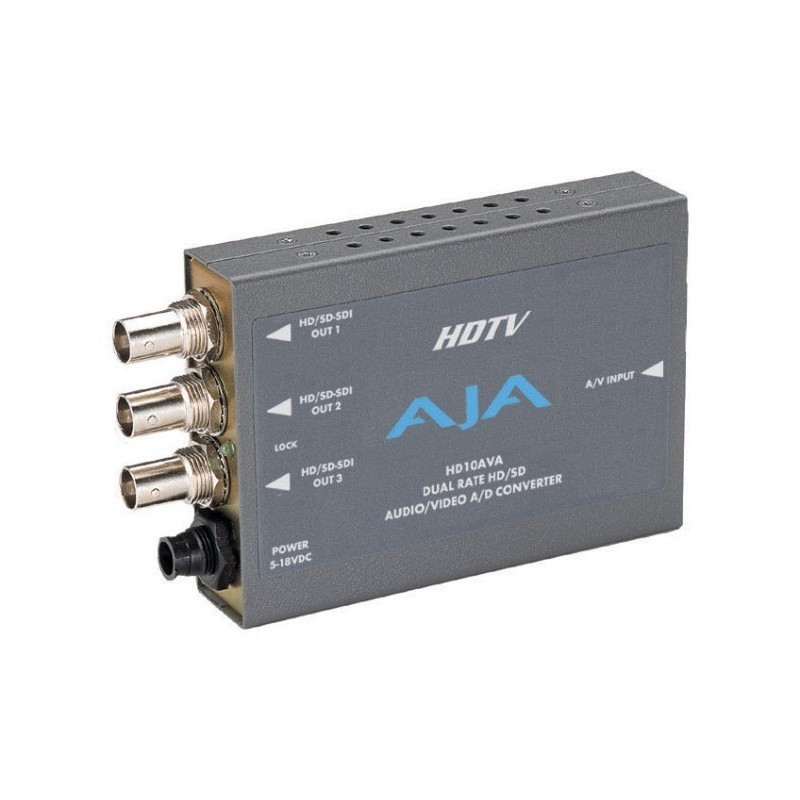

Aja HD Series Mini Converters
The HD10AVA is a miniaturised, high-quality HD/SD audio/video A/D converter. The HD10AVA automatically detects the input video format and embeds the audio inputs into the SDI/HD-SDI outputs. The HD10AVA is useful for adding an SDI/HD-SDI audio/video output to video recorders or any professional video equipment with analogue outputs. The HD10AVA is particularly useful for adding HD-SDI outputs to most HDV cameras or recorders by using the component outputs of these devices. The HD10AVA uses a breakout cable for audio/video inputs and provides 3 SDI-HD-SDI outputs via BNC.
Features
- High-quality SD/HD audio/video A/D converter
- SD component, composite or Y/C video input
- Analogue HD component video input
- Four balanced analogue audio inputs
- 3 SDI/HD-SDI outputs with embedded audio
- 12-bit video, 24-bit audio A/D converters
- Automatic multi-standard
- Configuration via external DIP switch
- 5-18V power supply
The HD10AVA is a miniaturised, high-quality HD/SD audio/video A/D converter. The HD10AVA automatically detects the input video format and embeds the audio inputs into the SDI/HD-SDI outputs. The HD10AVA is useful for adding an SDI/HD-SDI audio/video output to video recorders or any professional video equipment with analogue outputs. The HD10AVA is particularly useful for adding HD-SDI outputs to most HDV cameras or recorders by using the component outputs of these devices. The HD10AVA uses a breakout cable for audio/video inputs and provides 3 SDI-HD-SDI outputs via BNC.
Features
- High-quality SD/HD audio/video A/D converter
- SD component, composite or Y/C video input
- Analogue HD component video input
- Four balanced analogue audio inputs
- 3 SDI/HD-SDI outputs with embedded audio
- 12-bit video, 24-bit audio A/D converters
- Automatic multi-standard
- Configuration via external DIP switch
- 5-18V power supply
|
|
Specifications |
|
|
Formats |
1080i 50/59.94/60 Hz |
|
|
Video inputs |
HD Component YPbPr, (SMPTE-274), BNC |
|
|
Audio inputs |
4 channels balanced, XLR |
|
|
Outputs |
SDI, HD-SDI, SMPTE-259/292/296, 3 x BNC |
|
|
Video A/D converter |
12 bit |
|
|
Audio A/D converter |
24 bit, 48 kHz |
|
|
Audio levels |
+10 dBu, +12 dBu, +18 dBu, +24 dBu, digital full scale |
|
|
User controls |
External DIP switch |
|
|
Power supply |
+5 to 18V DC, 5 Watts, Power supply required (sold separately) |
|
|
Dimensions |
5.8 x 3.1 x 1 inches (147 x 79 x 25 mm) |
A/D, HD/SD, YPbPr to HD/SD SDI, 4-ch. analog XLR audio to embedded
