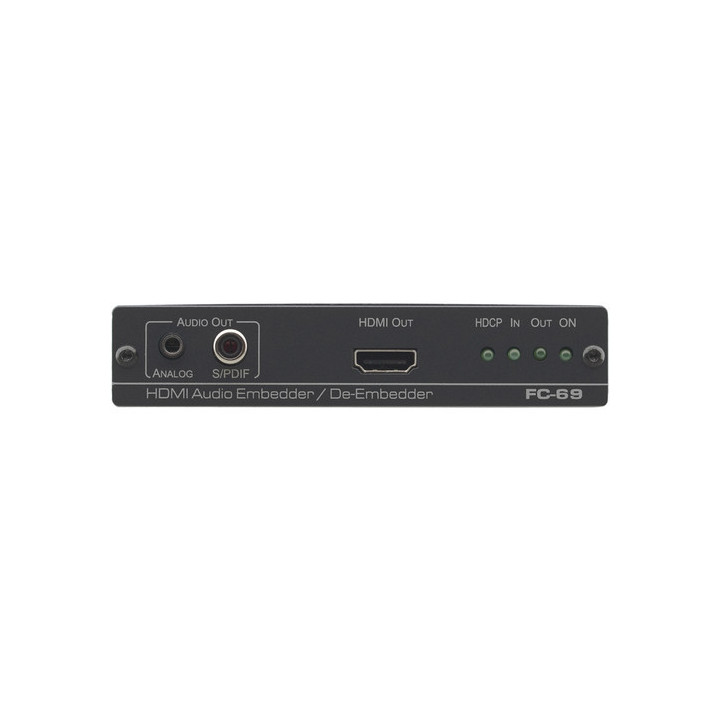

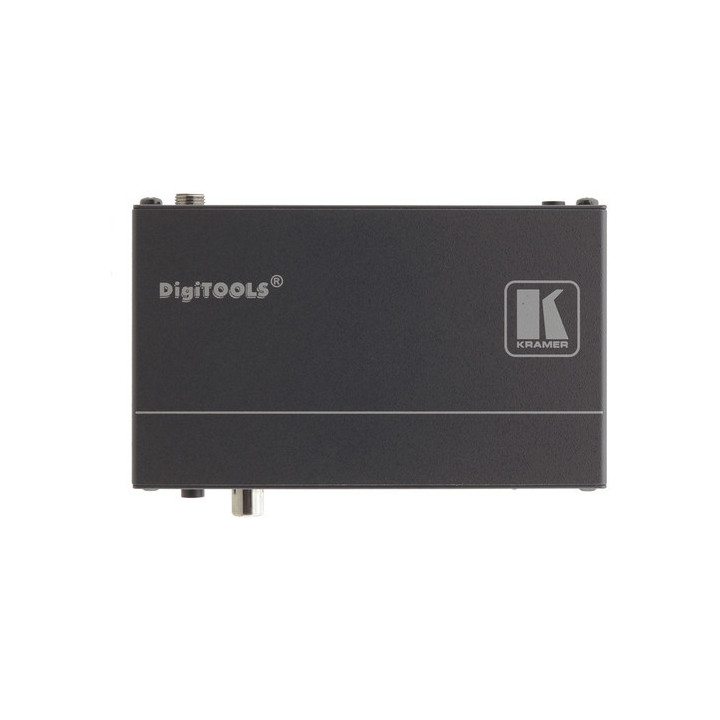

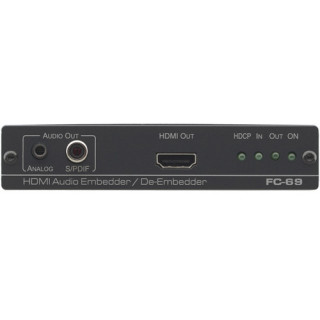

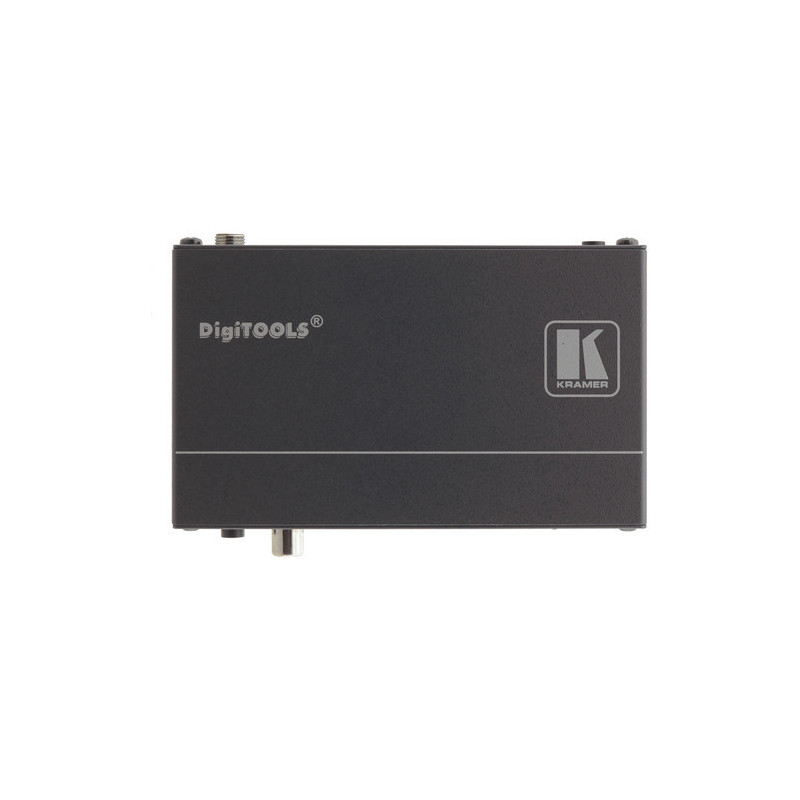

Kramer FC-69 - Ultra HD (4K) HDMI audio embedder and de-embedder
89076
The FC-69 from Kramer embeds analog (stereo) audio signals in the HDMI signal and outputs it along with the video signal from the HDMI output.
Visuals Price
712.30 CHF
VAT excl.
770.00 CHF Inc. VAT
Manufacturer price 838,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Kramer Ultra HD (4K) HDMI audio embedder and de-embedder
The Kramer UHD 4K HDMI audio embedder/de-embedder extracts the audio signal from an HDMI input and transmits it via a 3.5 mm stereo analogue audio output or RCA S/PDIF, thus allowing the signal to be routed independently to an audio system. At the same time, the complete HDMI signal is transmitted via an HDMI output. The HDMI input supports resolutions up to 4K60 with a maximum data rate of 8.91 Gb/s. A set of DIP switches controls and modifies the EDID, HDCP, embedding/de-embedding and standby mode functions. There is also a 3.5 mm stereo analogue audio input that can embed audio to the HDMI output. A 5 VDC mains adapter is included. Features - Video resolution support up to 4K60 4:2:0 with maximum data rate of 8.91 Gb/s - Audio de-embedding from HDMI input and unbalanced analogue audio output or S/PDIF - Audio embedding on HDMI output using 3.5 mm stereo analogue line input - HDCP compatible, EDID support and standby mode function controlled by DIP switches - ARC support, PCM 7.1, Deep Colour - Kramer's equalisation and re-synchronisation technology rebuilds the digital signal to travel longer distances - 5 VDC mains adapter included
The Kramer UHD 4K HDMI audio embedder/de-embedder extracts the audio signal from an HDMI input and transmits it via a 3.5 mm stereo analogue audio output or RCA S/PDIF, thus allowing the signal to be routed independently to an audio system. At the same time, the complete HDMI signal is transmitted via an HDMI output. The HDMI input supports resolutions up to 4K60 with a maximum data rate of 8.91 Gb/s. A set of DIP switches controls and modifies the EDID, HDCP, embedding/de-embedding and standby mode functions. There is also a 3.5 mm stereo analogue audio input that can embed audio to the HDMI output. A 5 VDC mains adapter is included. Features - Video resolution support up to 4K60 4:2:0 with maximum data rate of 8.91 Gb/s - Audio de-embedding from HDMI input and unbalanced analogue audio output or S/PDIF - Audio embedding on HDMI output using 3.5 mm stereo analogue line input - HDCP compatible, EDID support and standby mode function controlled by DIP switches - ARC support, PCM 7.1, Deep Colour - Kramer's equalisation and re-synchronisation technology rebuilds the digital signal to travel longer distances - 5 VDC mains adapter included
|
|
Specifications |
|
|
Video input |
1 x HDMI |
|
|
Audio input |
1 x 3.5 mm stereo |
|
|
Video output |
1 x HDMI |
|
|
Audio output |
1 x RCA S/PDIF 1 x 3.5 mm stereo |
|
|
Bandwidth |
Total bandwidth of 8.91 Gb/s 2.97 Gb/s per channel |
|
|
Resolutions |
Up to UHD 4K60 |
|
|
Power input |
5 VDC, 500 mA |
|
|
Audio distortion |
THD+N: -75 dB |
|
|
Operating temperature |
0 to 40 °C / 32 to 104 °F |
|
|
Storage temperature |
-40 to 70 °C / -40 to 158 °F |
|
|
Relative humidity |
10 to 90%, non-condensing |
|
|
Compliance |
RoHS, CE, WEEE |
|
|
Construction material |
Aluminium |
|
|
Dimensions |
4.72 x 2.81 x 0.96" / 12 x 7.15 x 2.44 cm |
|
|
Weight |
200 g / 7.1 oz |
The FC-69 from Kramer embeds analog (stereo) audio signals in the HDMI signal and outputs it along with the video signal from the HDMI output.
