AJA - 4-channel 3G-SDI to Optical Fiber-LC fiber connectors

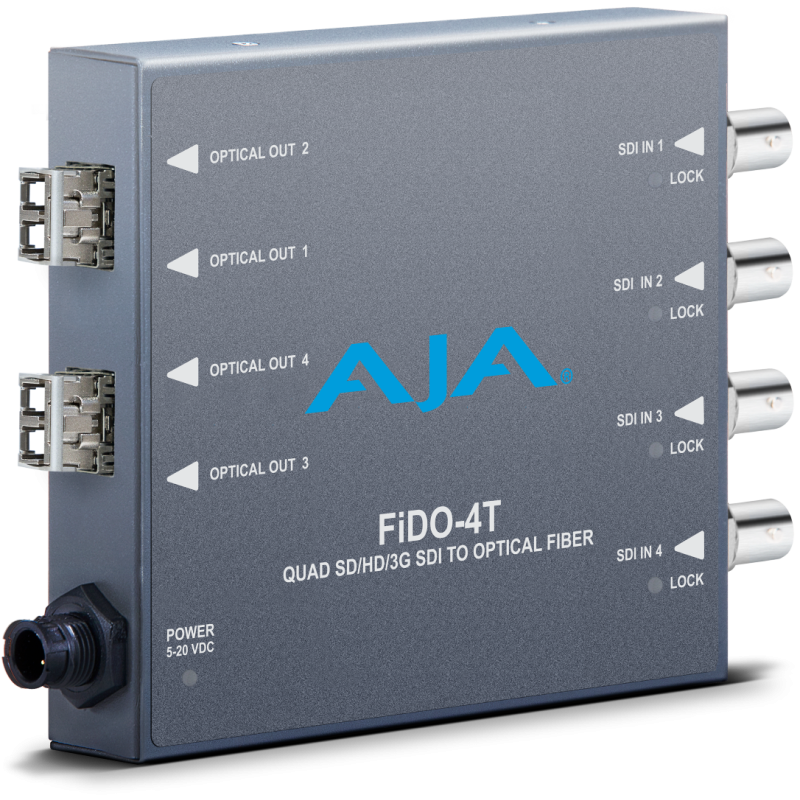

AJA FiDO-4T-R0 - 4-channel 3G-SDI to Optical Fiber-LC fiber connectors
1,897.55 CHF Inc. VAT
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
FiDO mini-converters offer unrivalled flexibility and value for money for SDI-Fibre conversion, enabling cable lengths up to 10 km with electrical isolation - useful for eliminating ground loop problems. FiDO converters use a compact, space-saving housing that works well in confined spaces around and behind equipment racks, trucks and on camera.
FiDO is a family of SDI/Fibre optic converters. FiDO enables transport of SD-SDI, HD-SDI and 3G-SDI over distances up to 10 km using standard single-mode fibre optic cable. FiDO converters also provide useful electrical isolation to eliminate ground loop problems. Models are available with LC, SC or ST connectors.
FiDO converters meet all relevant SMPTE specifications and are robust, versatile and suitable for indoor or outdoor use. With 11 models, FiDO offers unrivalled flexibility and value for money. Two-channel FiDO models enable conversion of two channels - perfect for 3D, dual-link SDI or two completely independent SDI channels (e.g. SD, HD and 3G can be mixed in any combination).
Four-channel FiDO models enable conversion of a complete quad-link 4K signal (or four independent 3G-SDI signals) using a single converter. FiDO converters come in a compact, space-saving housing for use in confined spaces around and behind equipment racks, trucks and crowded installations.
Universal power supply
All AJA mini-converters come with a universal power supply that includes international connections for worldwide use.
Compact and portable
AJA mini-converters are small enough to be placed behind a monitor, at the rear of a rack or directly on a camera mount. A locking power connector cannot be accidentally unplugged and an optional P-TAP power cable enables battery power in remote locations.
AJA quality - Warranty
All AJA mini-converters are covered by a 5-year warranty and AJA's advance replacement policy. If a replacement is required, AJA will immediately ship a new unit without the need to send the original unit first, ensuring you're back up and running as quickly as possible.
AJA Mini-Matrix
Information on the complete range of AJA mini-converters is now available as a mobile app on iOS. The mini-converter product range is extensive and this app helps you find the right converter for any situation, wherever you are.
Individual products have links to AJA's main website for more details and you can send product information directly by email from the app. The free AJA Mini-Matrix app for iPad and iPhone is available now from the Apple iTunes Store.
Features
- Transport 3G-SDI over single-mode fibre optic
- Automatic video format detection
- LC, SC or ST fibre connectors
- Simplex or duplex models available
- All inputs, SDI or fibre, are equalised and re-synchronised
- ASI compatible
- Uses AJA external universal +5V power supply model DWP-U-R1 (included)
|
|
Specifications |
|
|
Video input and output |
|
|
|
Formats |
3Gb, 1.5Gb, 270Mb, Auto-select, SDI (SMPTE 259/292/424) |
|
|
Connectors |
4x BNC, 4x single-mode fibre optic, ST connectors |
|
|
BNC |
|
|
|
Cable equalisation (coaxial 1694) |
270Mb, 400m |
|
|
Input/output return loss |
15dB, 5MHz to 1.5GHz |
|
|
Fibre optic output |
|
|
|
Output power |
-2dBm typical |
|
|
Wavelength (non-CWDM) |
1310 nm single-mode |
|
|
Physical characteristics |
|
|
|
Power supply |
AJA external power supply model DWP-U-R1 (included) |
|
|
Dimensions |
147 mm x 99 mm x 20 mm |
|
|
Environment |
|
|
|
Operating temperature |
0 to 40 degrees C |
|
|
Operating relative humidity |
10-90% non-condensing |
|
|
Operating altitude |
2,500 metres |
|
|
Safe storage temperature (powered off) |
-40 to 60 degrees C |
