Enclosure - Black Sand Blasted Anodized Aluminum Top
... learn more
Visuals Price
254.15 CHF VAT excl.

274.74 CHF Inc. VAT

Manufacturer price 299,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

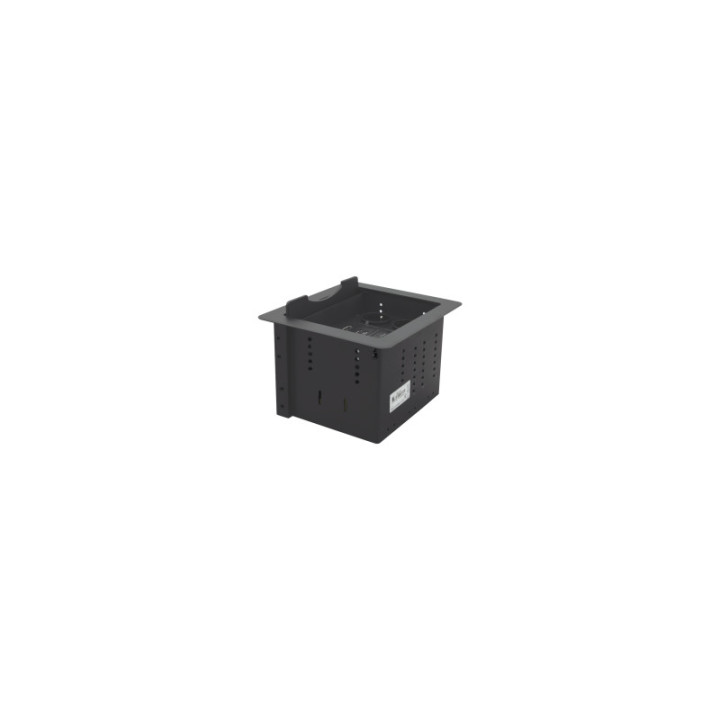

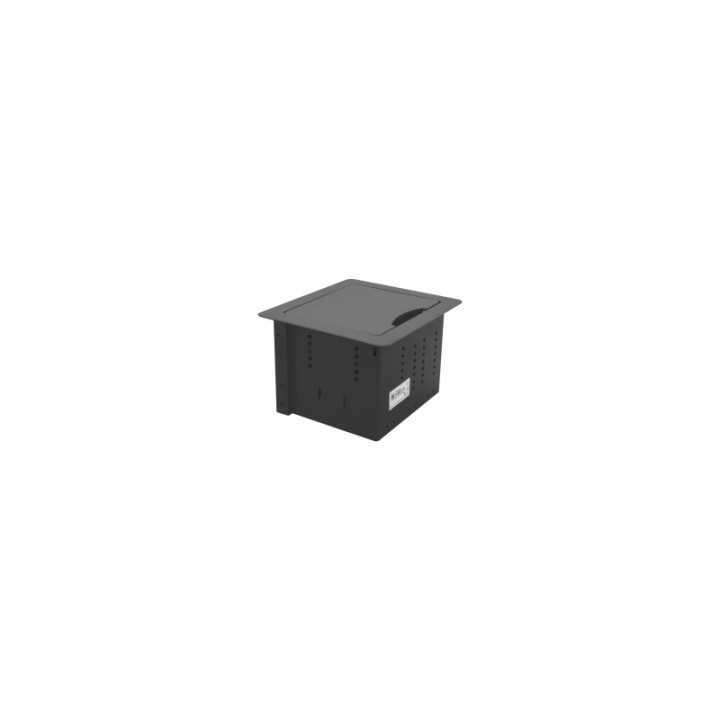

Kramer housing - Black sandblasted anodised aluminium
The TBUS-1N is a modular furniture-mounted connectivity box that installs easily on a table or lectern. Once assembled, the TBUS-1N allows you to connect any equipment to the room's presentation system via cable access or passive interfaces. When cables are not in use, they can be stored inside the unit, concealed by the cover.
NOTE: The TBUS housing, power socket, power lead and inserts are sold separately.
- Modular design - Adapts to your needs.

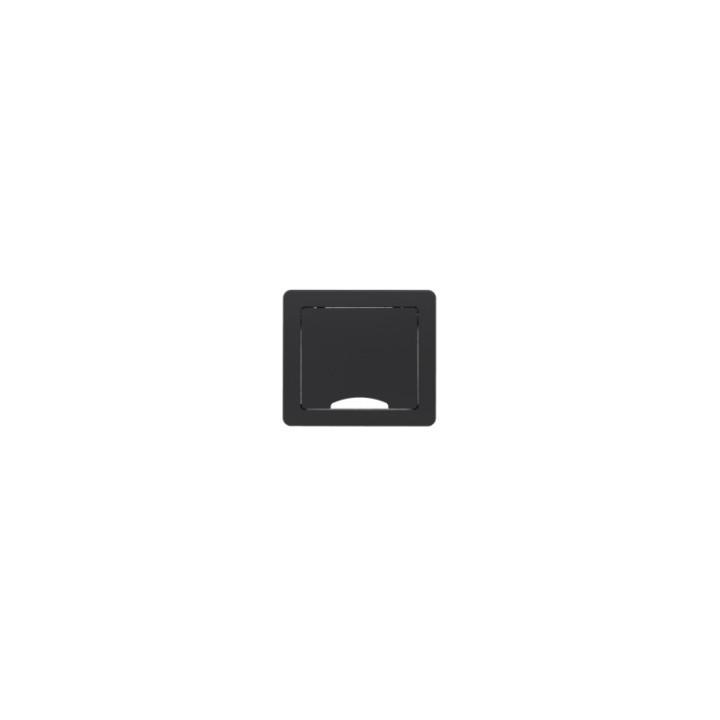

- Cover - Black or silver sandblasted anodised aluminium cover with a special opening for cable passage.
- Height adjustment - Use the screw holes to adjust the inner frame (ordered separately) to the desired height.

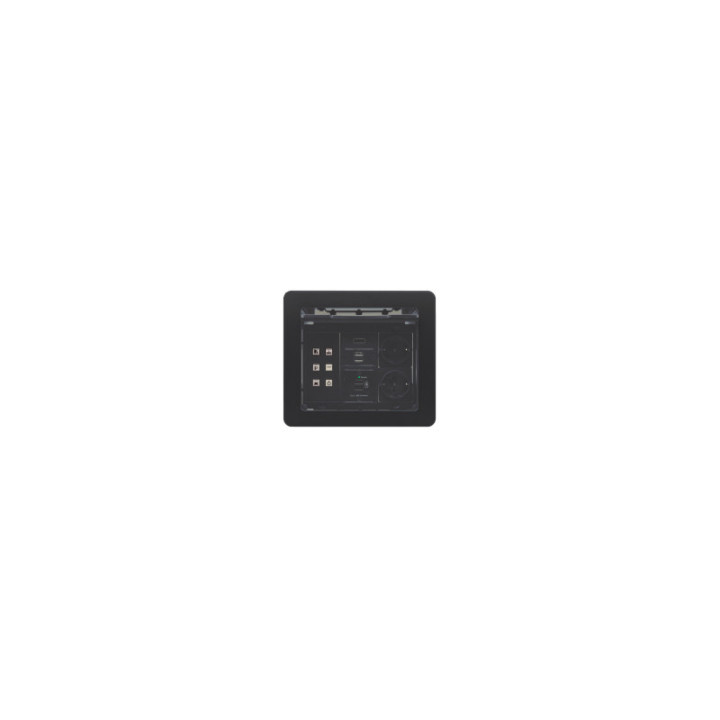

- Power sockets - Openings for single or double sockets suitable for the following plugs: USA, UK, Switzerland, Germany (Europlug), Belgium-France, Italy, Australia, Israel, Brazil, South Africa or "Universal" for worldwide use.
- Cut-out dimensions - 195 +2 mm x 173 +2 mm (7.68 +0.08 in x 6.82 +0.08 in).
Applications
- Conference rooms.
- Meeting rooms.
- Classrooms.
- Training centres.
- Laboratory tables.
- Lecterns.



Specifications



POWER SUPPLY

Single socket: 100–240V AC 50/60Hz, 5A (Universal, USA, Germany and EU, Belgium and France, Italy, Australia) or 220V AC 50/60Hz, 5A (Israel, South Africa)

Dual power supply kits: 100–240V AC 50/60Hz, 5A (Universal, USA, Germany and EU, France) or 220V AC 50/60Hz, 5A (Israel, South Africa)

FUSE RATING

T 6.3A 250V

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RH non-condensing

STORAGE HUMIDITY RANGE

5 to 95% RH, non-condensing

DIMENSIONS

21.4 cm x 19.2 cm x 13.6 cm (8.42" x 7.56" x 5.35") L, W, H

WEIGHT

TBUS–1N: approx. 2 kg (4.4 lbs)

accessories (table clamps, metal template, etc.): 0.89 kg (1.96 lbs)

ACCESSORIES

Six self-locking fasteners, metal template

OPTIONS

Inner frames, passive wall plates and interfaces, power socket kits, power lead
