Audinate - Dante AVIO 2x2 AES3/EBU I/O Adapter for Dante Audio Network
Audinate ADP-AES3-AU-2X2 - Dante AVIO 2x2 AES3/EBU I/O Adapter for Dante Audio Network
1028795
9353345000060
Dante AVIO 2x2 AES3/EBU I/O Adapter for Dante Audio Network
Visuals Price
241.41 CHF
VAT excl.
260.96 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Audinate Dante AVIO 2x2 AES3/EBU I/O Adapter for Dante Audio Network

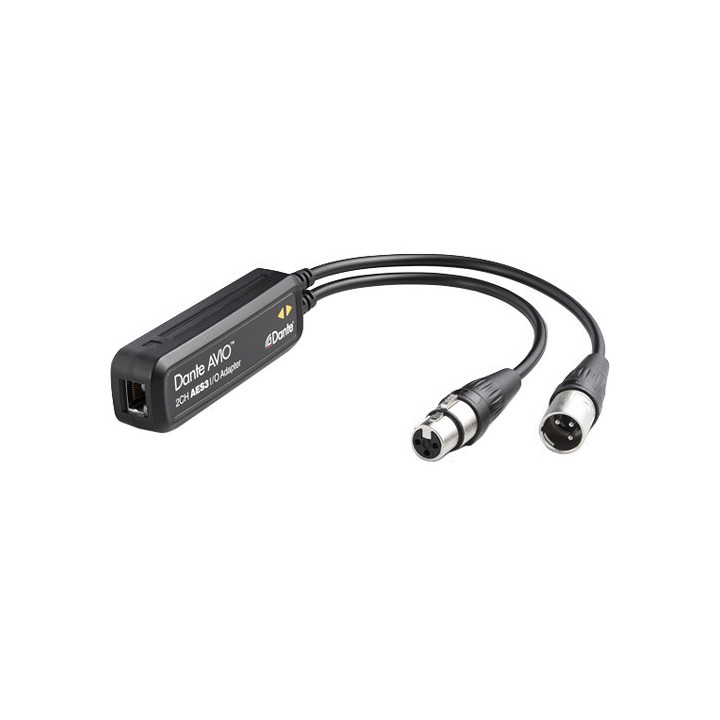

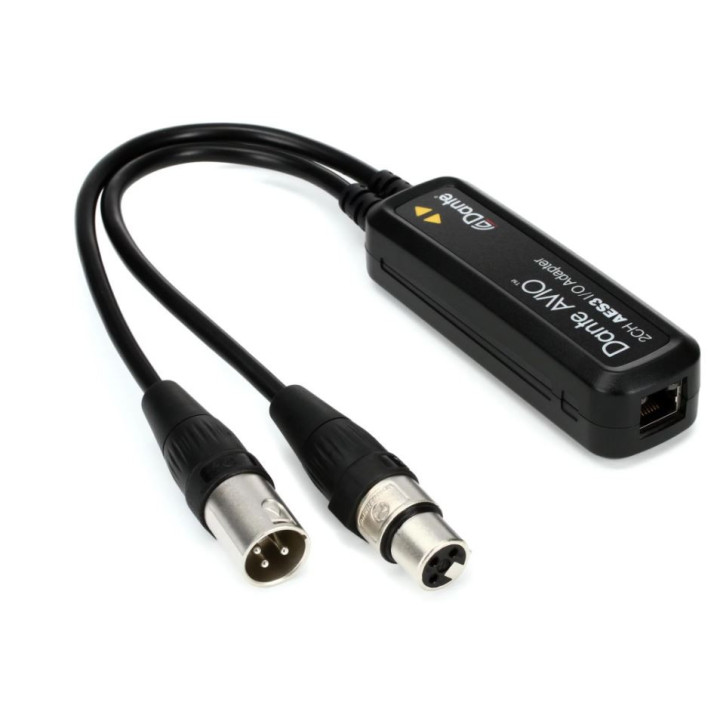

The Audinate ADP-AES3-AU-2X2 with RJ45 and male and female XLR connectors. Dante AVIO AES3/EBU adapters allow you to use your preferred digital audio equipment on a Dante audio network. Don't give up your excellent AES3-connected amplifiers, DSPs and mic preamps - adapt them to the world of audio networking with Dante AVIO. The Dante AVIO AES3/EBU adapter supports 2x2 channels, with high-quality XLR input and output connectors and built-in asynchronous sample rate conversion. Use Dante AVIO AES3 adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more. Features - Send audio to analog power amplifiers and powered speakers via a Dante audio network. - Integrate DSPs, analog compressors and equalizers into a Dante system using a combination of input and output Dante AVIO adapters. - Create easy connection points for linking listening rooms and overflow areas to a Dante network. - Plug & play operation. - Built for the road. - Sample rates up to 96 kHz (48 kHz for USB). - Excellent performance in terms of dynamic range, signal-to-noise ratio and total harmonic distortion. - Configurable gain/attenuation (analog input and output models only). - Asynchronous sample rate conversion (AES3 model only). - Dante Audio over IP and AES67 RTP transport formats. - Power over Ethernet (PoE) support. - Compatible with Dante Domain Manager.
The Audinate ADP-AES3-AU-2X2 with RJ45 and male and female XLR connectors. Dante AVIO AES3/EBU adapters allow you to use your preferred digital audio equipment on a Dante audio network. Don't give up your excellent AES3-connected amplifiers, DSPs and mic preamps - adapt them to the world of audio networking with Dante AVIO. The Dante AVIO AES3/EBU adapter supports 2x2 channels, with high-quality XLR input and output connectors and built-in asynchronous sample rate conversion. Use Dante AVIO AES3 adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more. Features - Send audio to analog power amplifiers and powered speakers via a Dante audio network. - Integrate DSPs, analog compressors and equalizers into a Dante system using a combination of input and output Dante AVIO adapters. - Create easy connection points for linking listening rooms and overflow areas to a Dante network. - Plug & play operation. - Built for the road. - Sample rates up to 96 kHz (48 kHz for USB). - Excellent performance in terms of dynamic range, signal-to-noise ratio and total harmonic distortion. - Configurable gain/attenuation (analog input and output models only). - Asynchronous sample rate conversion (AES3 model only). - Dante Audio over IP and AES67 RTP transport formats. - Power over Ethernet (PoE) support. - Compatible with Dante Domain Manager.
|
|
Specifications |
|
|
Channels |
2 inputs 2 outputs |
|
|
Impedance |
110 Ohm balanced |
|
|
Signal-to-noise ratio |
> 135dB |
|
|
Connectors |
RJ45, 1 XLR-M, 1 XLR-F |
|
|
Power supply |
PoE 802.3af Class 1 |
|
|
Sample rate conversion |
Yes |
|
|
Sampling rates |
44.1, 48, 96 kHz |
|
|
Bit depth |
24 |
|
|
Network transport |
Dante Audio over IP AES67 RTP |
Dante AVIO 2x2 AES3/EBU I/O Adapter for Dante Audio Network
