Symetrix - White Adaptive Remote Control
Symetrix 80-0056-A - White Adaptive Remote Control
1029101
Affordable management of basic audio functions or complex logicbased events. 24 menus each with up to 16 items. 3 navigation buttons, 8 character back-lit display, and 31 scrolling characters.
Visuals Price
385.33 CHF
VAT excl.
416.54 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks

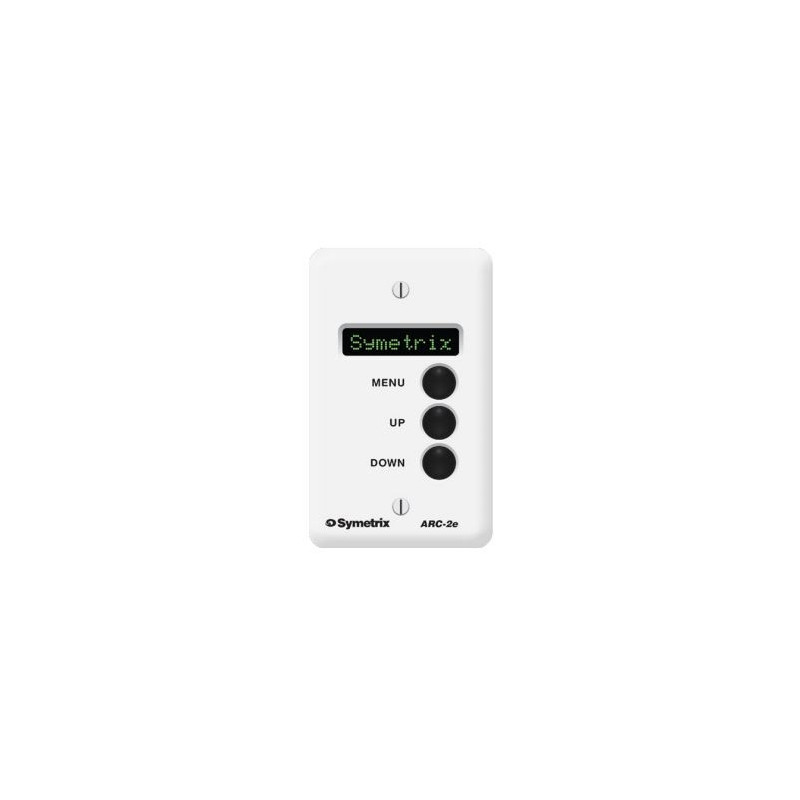

Symetrix white adaptive remote control
The ARC-2e adaptive remote control wall panel harnesses the full power of the Symetrix DSP system with twenty-four menus each containing up to sixteen enumerations, managing multiple functions or triggering complex logic-based control events.
Functions include
Triggering gain presets, source selection, room combining and volume control.
Intuitive navigation
Pressing the menu button navigates through menu names. The menu button also acts as a preset trigger when scrolling through a preset list. The up/down arrow buttons allow parameter adjustment and scrolling through preset lists. Holding the menu button and using the up/down arrow keys allows navigation forwards or backwards through the menus.
Programmable configuration
Menu brightness in the "active" and "inactive" states is set independently, so that the display will go into "sleep" mode in light-sensitive environments such as theatres. If the ARC-2e is inactive, it can scroll a message and return to the top of its menu tree. Upper and lower parameter limits help contain the adjustment range, and button lock will prevent unauthorised tampering.
The ARC-2e adaptive remote control wall panel with menu is used with Symetrix and SymNet products and controls up to 24 parameters in a system.
Features
- 8-character backlit display supporting up to thirty-one scrolling characters.
- Instant user feedback for control assignments, default parameters and actions.
- Three buttons enable navigation through menus, value adjustment and enabling or disabling the remote control.
- All control assignments, including item labelling, parameter limits and firmware version upgrades, are managed by the software supplied with the Symetrix DSP hardware.
The ARC-2e adaptive remote control wall panel harnesses the full power of the Symetrix DSP system with twenty-four menus each containing up to sixteen enumerations, managing multiple functions or triggering complex logic-based control events.
Functions include
Triggering gain presets, source selection, room combining and volume control.
Intuitive navigation
Pressing the menu button navigates through menu names. The menu button also acts as a preset trigger when scrolling through a preset list. The up/down arrow buttons allow parameter adjustment and scrolling through preset lists. Holding the menu button and using the up/down arrow keys allows navigation forwards or backwards through the menus.
Programmable configuration
Menu brightness in the "active" and "inactive" states is set independently, so that the display will go into "sleep" mode in light-sensitive environments such as theatres. If the ARC-2e is inactive, it can scroll a message and return to the top of its menu tree. Upper and lower parameter limits help contain the adjustment range, and button lock will prevent unauthorised tampering.
The ARC-2e adaptive remote control wall panel with menu is used with Symetrix and SymNet products and controls up to 24 parameters in a system.
Features
- 8-character backlit display supporting up to thirty-one scrolling characters.
- Instant user feedback for control assignments, default parameters and actions.
- Three buttons enable navigation through menus, value adjustment and enabling or disabling the remote control.
- All control assignments, including item labelling, parameter limits and firmware version upgrades, are managed by the software supplied with the Symetrix DSP hardware.
|
|
Specifications |
|
|
Processor |
Atmel ATmega 128 |
|
|
Upgradeable firmware on-site |
Yes |
|
|
Number of menus |
24 |
|
|
Menu enumerations |
16 |
|
|
Menu range limits |
Yes |
|
|
Maximum number of characters per menu name |
31 |
|
|
Maximum number of channels |
255 (One "channel" equals eight characters.) |
|
|
Maximum operating voltage |
30VDC |
Affordable management of basic audio functions or complex logicbased events. 24 menus each with up to 16 items. 3 navigation buttons, 8 character back-lit display, and 31 scrolling characters.
