PreSonus - Precision Reference Measurement Microphone

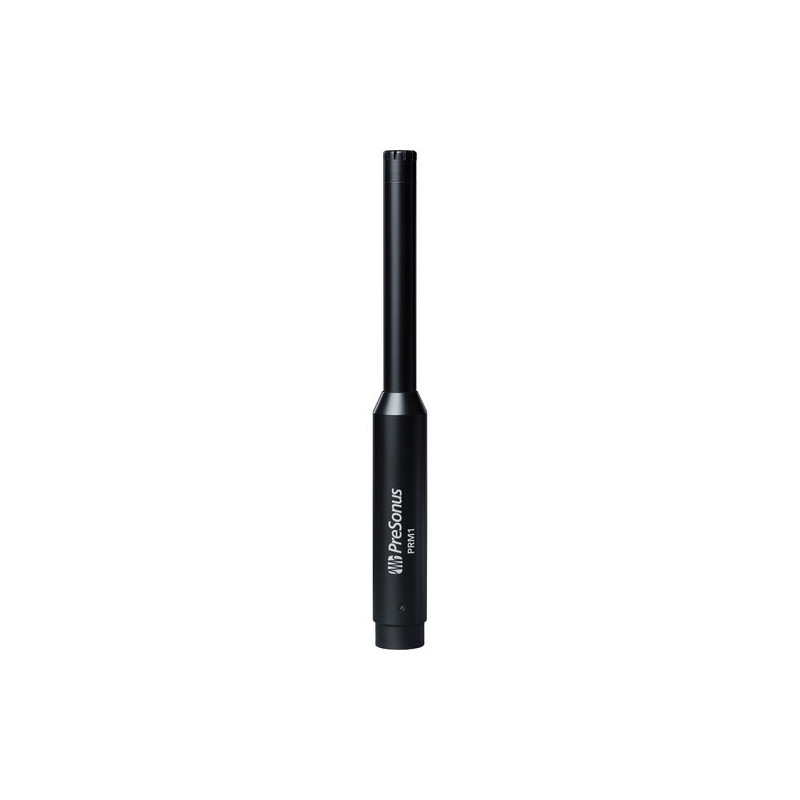

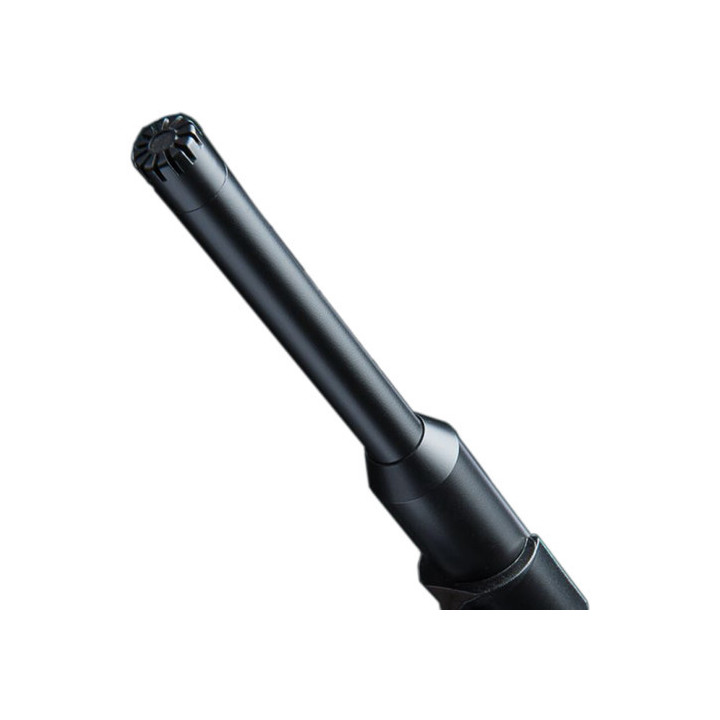

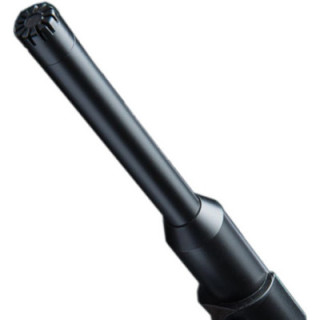

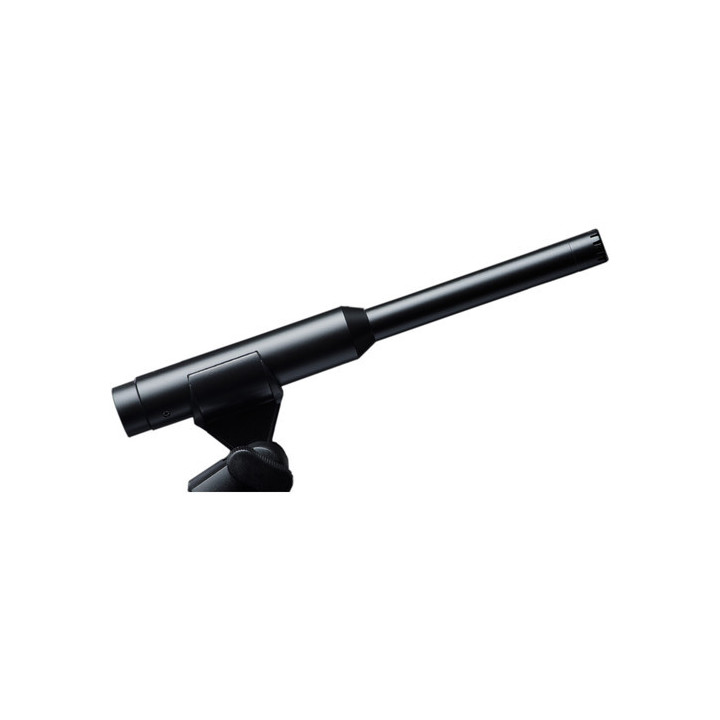

PreSonus PRM1 - Precision Reference Measurement Microphone
1028999
0673454001918
The PRM1 from PreSonus is a precision reference microphone that is designed specifically for use with audio-analysis tools for sound system optimization and room tuning.
Visuals Price
57.57 CHF
VAT excl.
62.23 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
PreSonus precision reference measurement microphone
The PreSonus PRM1 is a precision reference microphone specially designed for use with audio analysis tools for sound system optimisation and room tuning.
The PRM1 uses a pre-polarised 1/4" electret condenser capsule with an omnidirectional pickup pattern. This is particularly advantageous when tuning your sound system in a specific acoustic space or room as it allows the microphone to pick up both reflections and direct signals from the sound source. Additionally, the microphone is designed to achieve a flat frequency response with a relatively narrow dynamic range. These characteristics contribute to accurate readings of test frequencies by your spectral analysis software or devices.

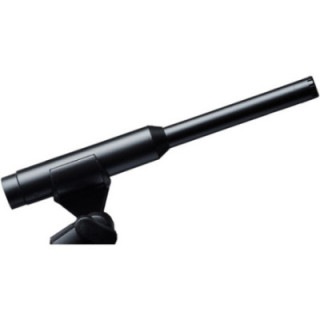

The microphone comes with a microphone clip, a windscreen for use in outdoor acoustic environments, and a hard case for transport and storage.
Recommended for use with PreSonus StudioLive mixing consoles and VSL with Smaart Measurement Technology analysis tools.
The PreSonus PRM1 is a precision reference microphone specially designed for use with audio analysis tools for sound system optimisation and room tuning.
The PRM1 uses a pre-polarised 1/4" electret condenser capsule with an omnidirectional pickup pattern. This is particularly advantageous when tuning your sound system in a specific acoustic space or room as it allows the microphone to pick up both reflections and direct signals from the sound source. Additionally, the microphone is designed to achieve a flat frequency response with a relatively narrow dynamic range. These characteristics contribute to accurate readings of test frequencies by your spectral analysis software or devices.
The microphone comes with a microphone clip, a windscreen for use in outdoor acoustic environments, and a hard case for transport and storage.
Recommended for use with PreSonus StudioLive mixing consoles and VSL with Smaart Measurement Technology analysis tools.
|
|
Technical specifications |
|
|
Type |
Black electret condenser |
|
|
Element |
Pressure, FET preamplifier |
|
|
Pickup pattern |
Omnidirectional |
|
|
Polarity |
Pin 2 delivers a positive voltage (relative to pin 3) when the diaphragm receives positive pressure (inward movement) |
|
|
Connector |
3-pin male XLR |
|
|
Frequency response |
20 Hz to 20 kHz |
|
|
Sensitivity |
-37 dB/Pa (14 mV/Pa) 1 Pa=94 dB SPL |
|
|
Impedance |
200 Ω |
|
|
Minimum load impedance |
1,000 Ω |
|
|
Equivalent input noise |
26 dB |
|
|
Maximum SPL |
132 dB SPL (THD ≤ 1%, 1 kHz) |
|
|
Dynamic range |
106 dB |
|
|
Signal-to-noise ratio |
70 dB |
|
|
Phantom power |
9-52 V |
|
|
Current consumption |
2 mA |
|
|
Weight |
5.3 oz (150 g) |
|
|
Dimensions |
7.56 x 0.83" (192 mm x 21 mm) |
The PRM1 from PreSonus is a precision reference microphone that is designed specifically for use with audio-analysis tools for sound system optimization and room tuning.
