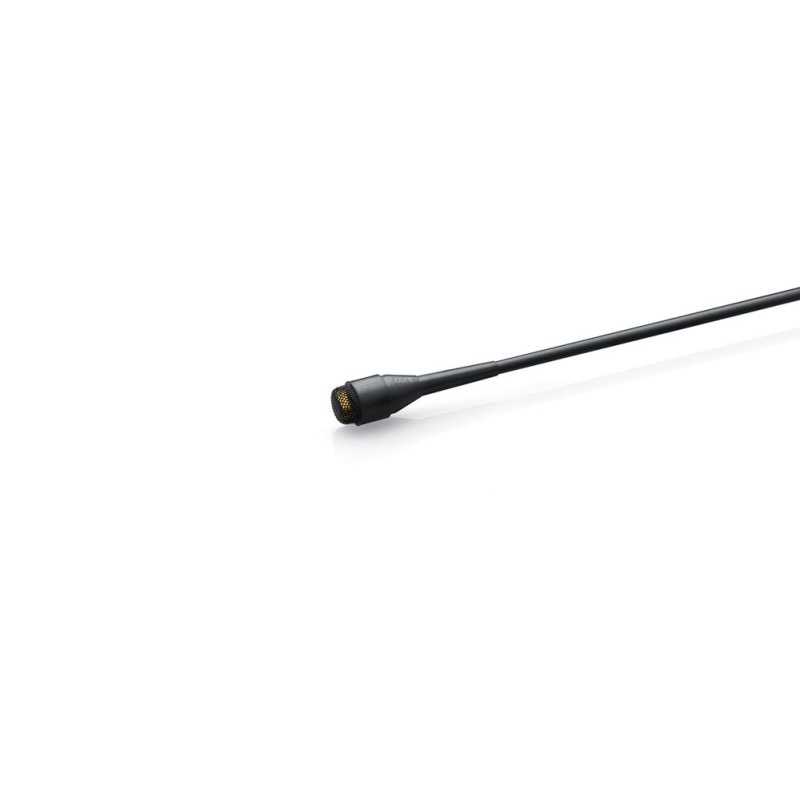

DPA - CORE 4063 Omni Mic, Loud SPL & DC, Black, MicroDot

DPA Microphones 4063-OC-C-B00 - CORE 4063 Omni Mic, Loud SPL & DC, Black, MicroDot

1042400
5713055011734
DPA Microphones 4063-OC-C-B00 - CORE 4063 Omni Mic, Loud SPL & DC, Black, MicroDot
DPA Microphones 4063-OC-C-B00 - CORE 4063 Omni Mic, Loud SPL & DC, Black, MicroDot
The loud SPL and low DC, black d:screet Core 4063 Miniature Omnidirectional Microphone with Hardwired MicroDot Connector from DPA is designed for use with wireless systems giving only 3V bias voltage and used in performance and theatrical presentations.
... learn more
Visuals Price
396.85 CHF VAT excl.

428.99 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Specifications of the DPA Microphones 4063-OC-C-B00

Operating principle Pressure gradient
Capsule type Pre-polarised condenser
Frequency response 20 Hz - 20 kHz
Dynamic range Typ. 109 dB
Colour Black
Effective frequency range ±2 dB Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 38 dB (max. 40 dB)
Distortion, THD < 1% 132 dB SPL RMS, 135 dB SPL peak
Max. SPL, THD 10% 138 dB SPL peak
Nominal output impedance 30 - 40 Ohms
Cable transmission capacity Up to 300 m with XLR adapter DAD6001-BC
Power supply (for optimum performance) For wireless systems Min. 3 V - max. 10 V
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with XLR adapter DAD6001-BC
Polarity An increasing positive acoustic pressure produces a positive voltage on the MicroDot pin
Weight 7.5 g including cable and MicroDot connector
Microphone diameter 5.4 mm
Microphone length 12.7 mm
Cable length 1.8 m
Temperature range -40°C to 45°C
Relative humidity (RH) Up to 90%
The loud SPL and low DC, black d:screet Core 4063 Miniature Omnidirectional Microphone with Hardwired MicroDot Connector from DPA is designed for use with wireless systems giving only 3V bias voltage and used in performance and theatrical presentations.
