DPA - Stereo Pair with Clips and Windshield in Peli Case

DPA Microphones ST4006A - Stereo Pair with Clips and Windshield in Peli Case

1042616
5713055000202
DPA Microphones ST4006A - Stereo Pair with Clips and Windshield in Peli Case
DPA Microphones ST4006A - Stereo Pair with Clips and Windshield in Peli Case
DPA Microphones ST4006A - Stereo Pair with Clips and Windshield in Peli Case
DPA Microphones ST4006A - Stereo Pair with Clips and Windshield in Peli Case

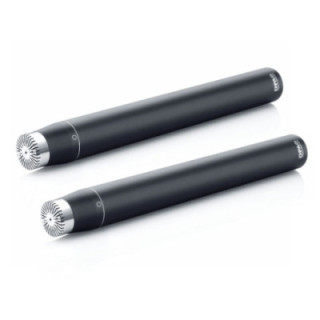

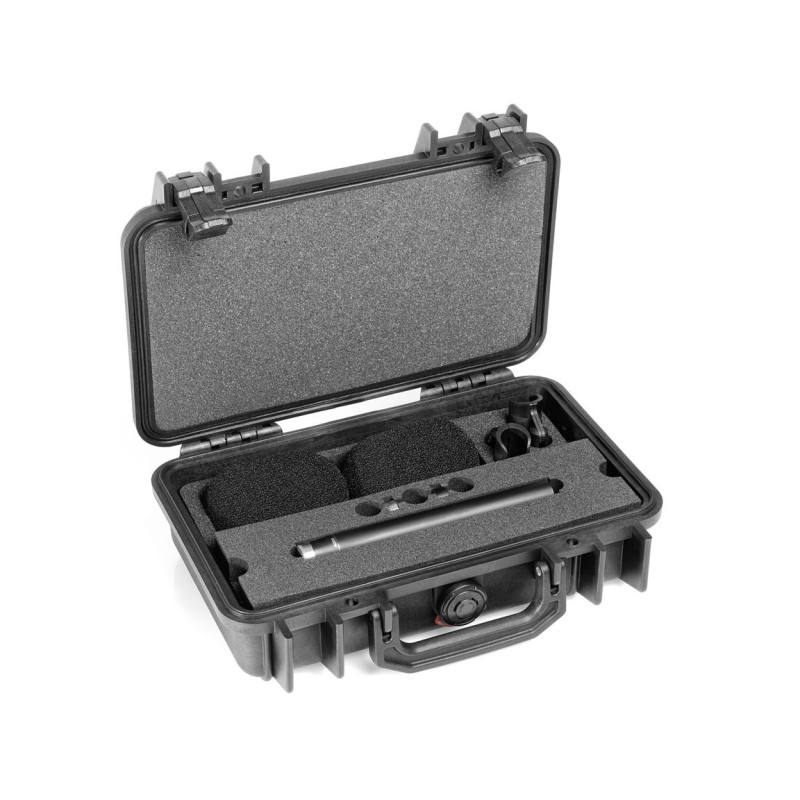

The ST4006A Stereo Pair with 4006A Omnidirectional Microphones from DPA is a kit that consists of two 4006A Omnidirectional Microphones, two microphone holders, two grids, two windscreens, and a Peli carrying case.
... learn more
Visuals Price
4,161.89 CHF VAT excl.

4,499.00 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

DPA Microphones ST4006A Specifications

Polar pattern Omnidirectional
Operating principle Pressure
Capsule type Pre-polarised condenser
Frequency range 10 Hz - 20 kHz
Frequency range, ± 2 dB 10 Hz - 20 kHz
Sensitivity, nominal, ± 2 dB at 250 Hz 40 mV/Pa ; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 79 dB(A)
Total harmonic distortion (THD) < 1% up to 139 dB SPL peak
Dynamic range Typ. 124 dB
Max. SPL, peak before clipping 147 dB
Switchable attenuator 0 dB / -20 dB
Output impedance < 200 ohm
Minimum load impedance 2 kohm
Cable transmission capacity 100 m (328 ft)
Output balancing principle Impedance balancing with active amplification
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full specifications) 48 V phantom power (± 4 V)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase
Colour Matte black
Weight 163 g (5.7 oz)
Microphone diameter 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter 16 mm (0.6 in)
Microphone length 170 mm (6.7 in)
Output voltage, RMS > 5 V
Polarity +V at pin 2 for positive acoustic pressure
Temperature range -40 °C to 50 °C (-40 °F to 122 °F)
Relative humidity (RH) Up to 90%
Classification Compliant with IEC 61672 Class I (with close-field grid DD0251)
Matching tolerance ± 0.5 dB
Phase deviation for the kit < 5°
The ST4006A Stereo Pair with 4006A Omnidirectional Microphones from DPA is a kit that consists of two 4006A Omnidirectional Microphones, two microphone holders, two grids, two windscreens, and a Peli carrying case.
