DPA - Stereo Pair with Clips and Windshield in Peli Case

DPA Microphones ST4015C - Stereo Pair with Clips and Windshield in Peli Case

1042621
5713055003272
DPA Microphones ST4015C - Stereo Pair with Clips and Windshield in Peli Case
DPA Microphones ST4015C - Stereo Pair with Clips and Windshield in Peli Case

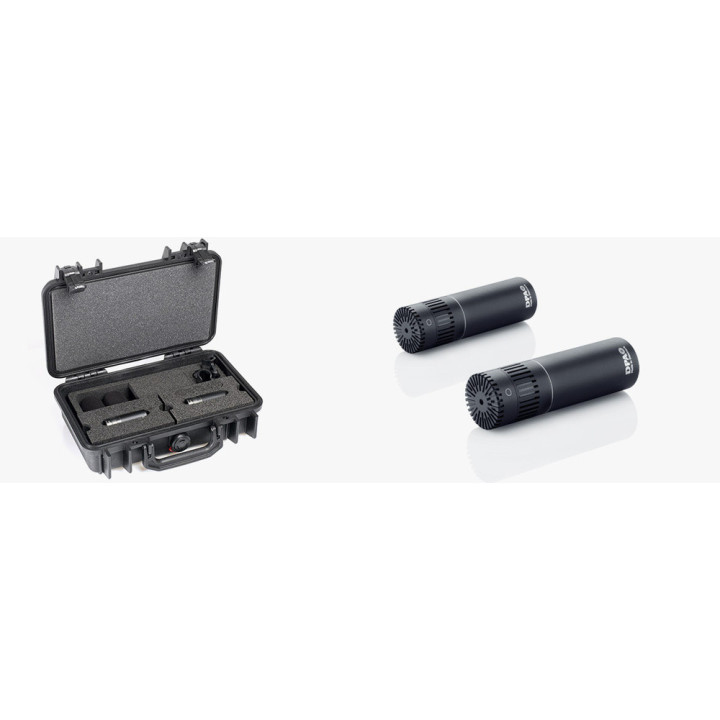

The ST4015C Stereo Pair with 4015C Compact Wide Cardioid Microphones from DPA consists of two matched 4015C Wide Cardioid Microphones, two holders, two windscreens, and a Peli Carrying Case.
... learn more
Visuals Price
3,014.80 CHF VAT excl.

3,259.00 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

DPA Microphones ST4015C specifications

Polar pattern: Wide cardioid
Operating principle: Pressure gradient
Capsule type: Pre-polarised condenser
Frequency response: 20 Hz - 20 kHz
Dynamic range: Typical 121 dB
Effective frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa ; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typical 25 dB
Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
Max. SPL, THD 10%: 152 dB SPL peak
Minimum load impedance: 2 kΩ
Nominal output impedance: 100 Ω
Cable transmission capability: 100 m (328 ft)
Output balancing principle: Impedance balancing with active amplification
Common mode rejection ratio (CMRR): > 50 dB
Power supply (for optimum performance): P48 (phantom power)
Current consumption: 2.8 mA
Maximum output voltage, RMS: > 4V
Polarity: +V at pin 2 for positive acoustic pressure
Matching tolerance (frequency response and sensitivity): ±1 dB
Phase deviation for the kit: < 10°
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 64 mm (2.5 in)
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
The ST4015C Stereo Pair with 4015C Compact Wide Cardioid Microphones from DPA consists of two matched 4015C Wide Cardioid Microphones, two holders, two windscreens, and a Peli Carrying Case.
