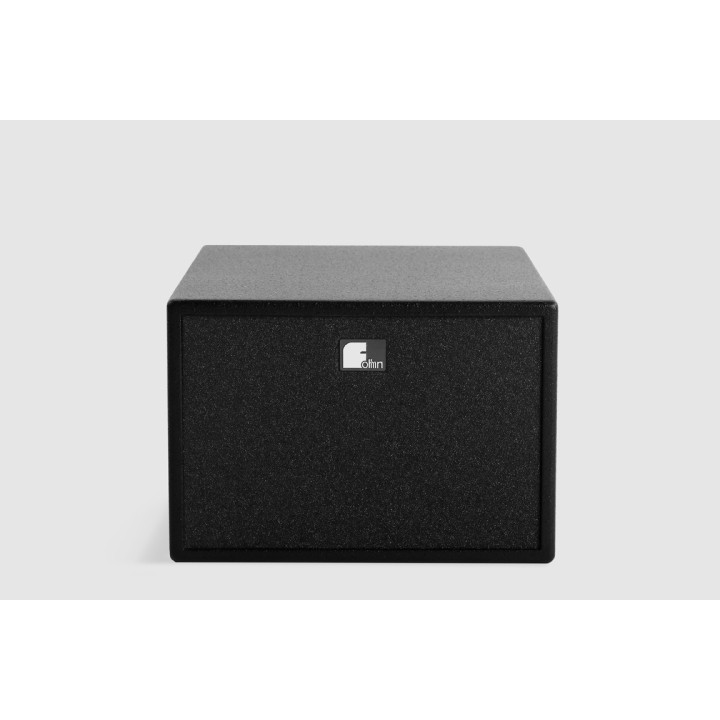

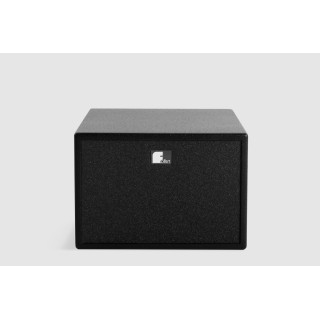

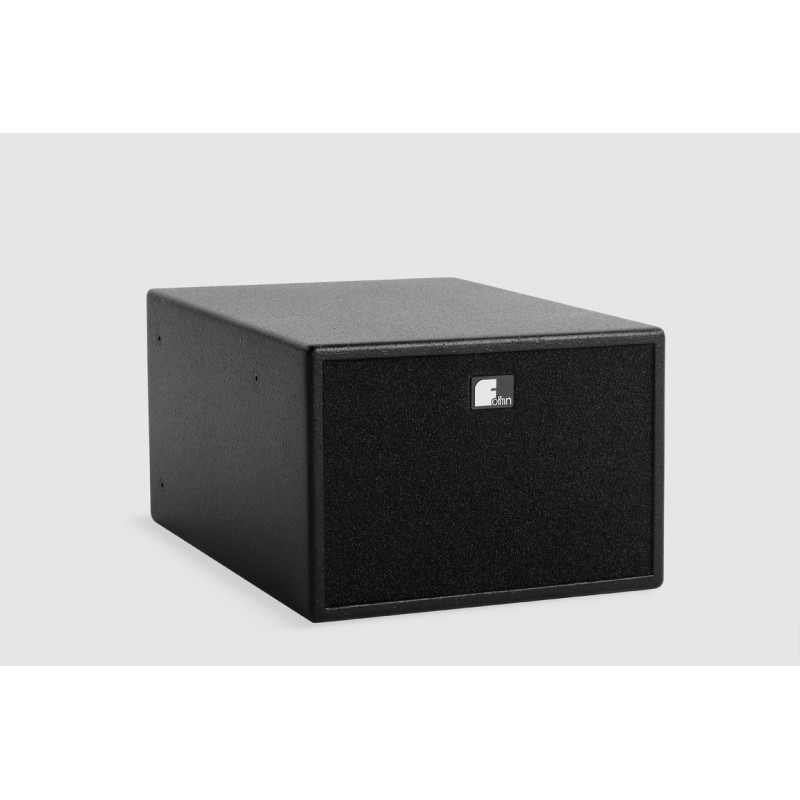

Fohhn - Active subwoofer with DSP, black
Fohhn AS-10 ASX - Active subwoofer with DSP, black
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

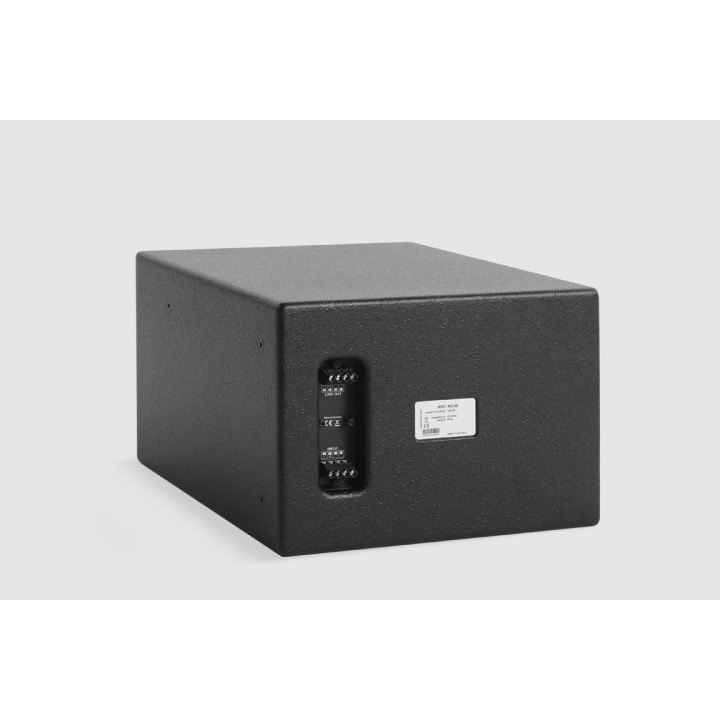

Compact active system subwoofer with integrated 2-channel amplifier and DSP technology, equipped with two 6.5" long-excursion speakers. With a capacity of up to 200 W, the subwoofer can generate a maximum SPL of 115 dB. The high-quality birch plywood cabinet is available as standard with a black textured finish. All standard RAL colours are available as an option. Other colour catalogues are also possible on request. To protect the speakers and electronics, the cabinet is equipped with a high-end, impact-resistant and acoustically transparent powder-coated steel front grille. Six integrated M6 threaded inserts are designed to accommodate mounting brackets. The subwoofer has been developed for dedicated use in a digital audio network system that includes active speakers with integrated digital amplifiers and DSP technology, master modules and other system components. Connections: Input via RJ-45 (Neutrik etherCON) for AES/EBU digital signals, control signals and electrical power. The output via RJ-45 link out (Neutrik etherCON) allows series connection (Daisy Chain) to other system components.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Ultra-compact subwoofer, bass reflex |
|
|
Components |
2 x 6.5" long excursion |
|
|
Total rated power |
300 W |
|
|
Operating mode |
Active, DSP amplifier 2x Class-D |
|
|
Maximum SPL |
115dB |
|
|
Low-frequency cut-off |
42Hz |
|
|
Upper cut-off frequency |
90Hz / 110Hz / 130Hz |
|
|
Features |
|
|
|
Cabinet |
Birch multiplex wood |
|
|
Protective grille |
Impact-resistant steel grille, powder coating |
|
|
Mounting points |
6x M6 thread |
|
|
Standard colours |
Black, textured finish |
|
|
Front design |
Acoustic foam in cabinet colour |
|
|
Dimensions (W x H x D) |
430 x 250 x 380 mm |
|
|
Weight |
14 kg |
|
|
Remote control, monitoring and simulation |
||
|
Remote control |
AIREA-Net, Fohhn Audio Soft |
|
|
Remote monitoring |
Temperature, protection, signals, power supply, Fohhn-Net, Fohhn Audio Soft, AES/EBU available |
|
|
Fault contact |
- |
|
|
Beam simulation |
Bass array |
|
|
Electronic performance |
|
|
|
Amplifier output |
2 x 300W |
|
|
Amplifier type |
Pure Path Digital PWM |
|
|
Audio inputs |
2 independent audio channels, AES/EBU 32 kHz -96 kHz, 16/24 Bit |
|
|
Audio outputs |
2 x 300W internal |
|
|
DSP channels |
Fohhn Audio DSP |
|
|
Amplification |
30 dB (Ref 1V) |
|
|
Input sensitivity |
-6 dB Fullscale |
|
|
Frequency response |
20 Hz - 20 kHz |
|
|
S/N ratio |
>105 dB/A |
|
|
THD |
< 0.05% typ. , < 0.01% 1kHz -6dB |
|
|
Protection circuit |
Soft start, thermal protection, short circuit, overload |
|
|
Power supply |
Airea Net 50V |
|
|
Handling capacity |
Standby 5 W, Airea Net load 200W |
|
|
Power factor (PFC) |
> 90 % |
|
|
Protection |
Integrated semiconductor fuse |
|
|
Low consumption |
Green Power standby mode |
|
|
Emergency power possible |
With external UPS |
|
|
Temperature range |
0 – 40°C |
|
|
Cooling |
Passive |
|
|
Electronic weight |
0.3 kg |
|
|
Controllers |
|
|
|
Digital signal processors |
2 |
|
|
Independent limiters |
4 |
|
|
3-band selective limiting |
Bass/mid/treble |
|
|
Band-specific time constants |
Yes |
|
|
Filtering technology |
Double precision 56 bits |
|
|
Input |
AES/EBU 32kHz – 96kHz, 16/24 Bit |
|
|
FIR filter |
Yes |
|
|
Gain |
-80 dB - +12 dB |
|
|
Volume |
-80 dB - +12 dB |
|
|
EQ |
10-band parametric EQ, Gain, +/-12 dB, Frequency 10 -20 kHz, Q 0.1 – 100 |
|
|
Limiter Compressor |
Yes |
|
|
Noise Gate |
Yes |
|
|
Active filter |
Linkwitz-Riley 4th order, 24 dB/octave, high-pass 10 Hz -20 kHz, low-pass 10 Hz - 20 kHz |
|
|
Delay |
0 - 145 ms (0 - 50 m) |
|
|
User presets |
100 |
|
|
System latency |
0.95 ms |
|
|
Connections |
|
|
|
AIREA-Net |
1 x RJ-45 input, 1 x RJ-45 link output |
|
|
AIREA Net load |
200W |
|
|
Displays |
|
|
|
On/off (standby) |
Green = on, red = standby, red/green flashing = fault |
|
|
Signal, identification |
Blue, blue flashing |
|
|
Front identification LED |
Blue, blue flashing |
|
|
Network control |
Remote control receive/transmit LED |
|
