Fohhn - Active subwoofer with DSP, white

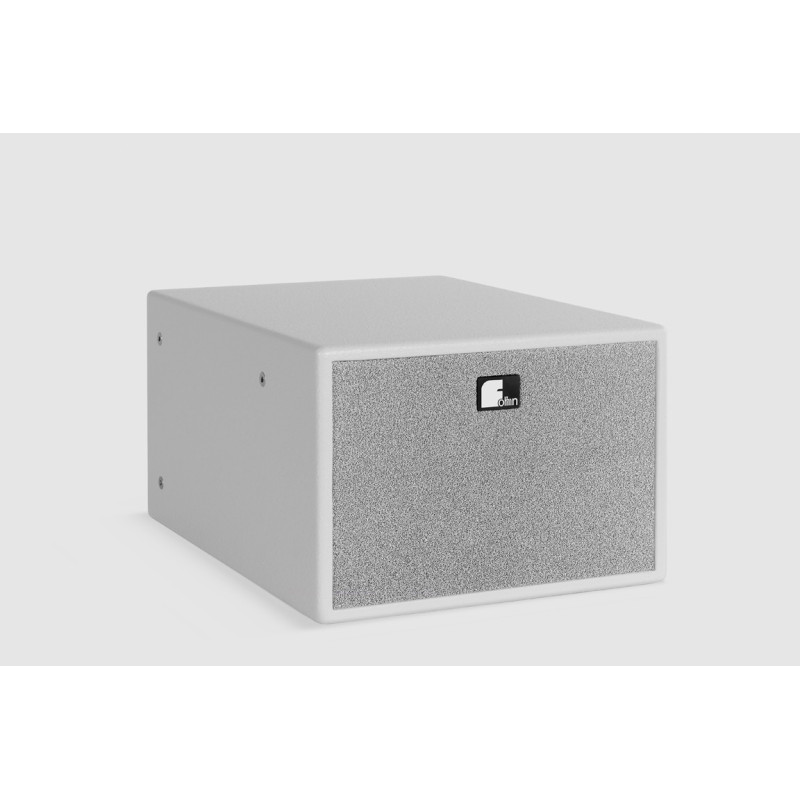

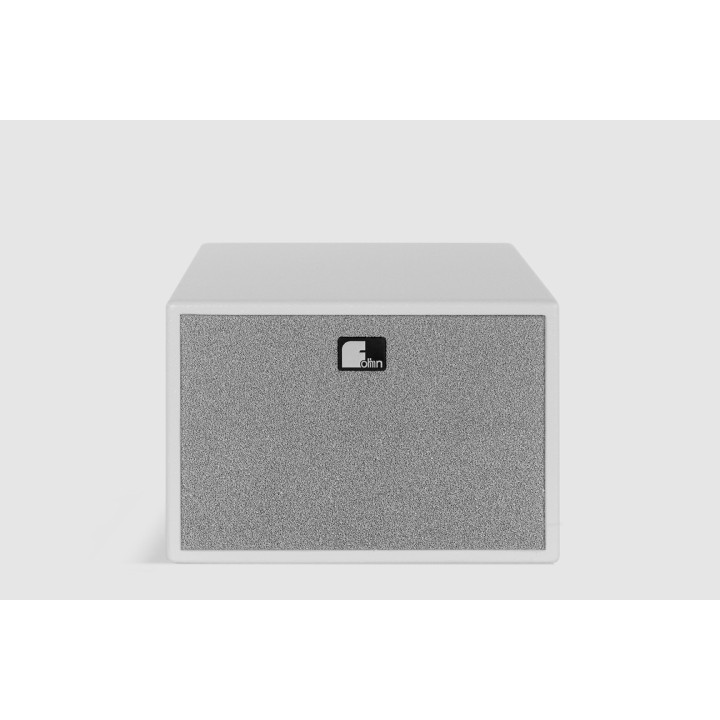

Fohhn AS-10 ASX - Active subwoofer with DSP, white
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

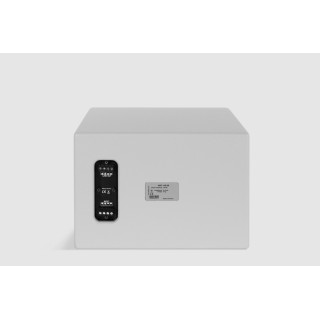

Compact active subwoofer with integrated 2-channel amplifier and DSP technology, equipped with two 6.5" long-excursion loudspeakers. With a capacity of up to 200 W, the subwoofer can generate a maximum sound pressure level of 115 dB. The high-quality birch plywood cabinet is available as standard with a white textured finish. All standard RAL colours are available as an option. Other colour catalogues are also possible on request. To protect the loudspeakers and electronics, the cabinet is equipped with a high-quality, bullet-impact resistant, sound-permeable, powder-coated steel front grille. Six integrated M6 threaded inserts are designed to accommodate mounting brackets. The subwoofer has been developed for dedicated use in a digital audio network system comprising active loudspeakers with integrated digital amplifiers and DSP technology, master modules and other system components. Connections: Input via RJ-45 (Neutrik etherCON) for digital AES/EBU signals, control signals and power supply. Output via RJ-45 link out (Neutrik etherCON) enables series connection (Daisy Chain) to other system components.
|
|
Specifications |
|
|
Electro-acoustic Characteristics |
|
|
|
Acoustic Design |
Ultra-compact subwoofer, bass-reflex |
|
|
Components |
2 x 6.5" long excursion |
|
|
Total Rated Power |
300 W |
|
|
Operating Mode |
Active, DSP amplifier 2x Class D |
|
|
Maximum SPL |
115 dB |
|
|
Lower Cut-off Frequency |
42Hz |
|
|
Upper Cut-off Frequency |
90Hz / 110Hz / 130Hz |
|
|
Characteristics |
|
|
|
Cabinet |
Birch plywood |
|
|
Protective Grille |
Bullet-impact resistant steel grille, powder-coated |
|
|
Mounting Points |
6x M6 thread |
|
|
Standard Colours |
White, textured finish |
|
|
Front Design |
Acoustic foam in cabinet colour |
|
|
Dimensions (W x H x D) |
430 x 250 x 380 mm |
|
|
Weight |
14 kg |
|
|
Remote Control and Monitoring and Simulation |
||
|
Remote Control |
AIREA-Net, Fohhn Audio Soft |
|
|
Remote Monitoring |
Temperature, protection, signals, power supply, Fohhn-Net, Fohhn Audio Soft, AES/EBU available |
|
|
Fault Contact |
- |
|
|
Simulation Beam |
Bass Network |
|
|
Electronic Performance |
|
|
|
Amplifier Output |
2 x 300W |
|
|
Amplifier Type |
Digital Pure Path PWM |
|
|
Audio Inputs |
2 independent audio channels, AES/EBU 32 kHz -96 kHz, 16/24 Bit |
|
|
Audio Outputs |
2 x 300W internal |
|
|
DSP Channels |
Fohhn Audio DSP |
|
|
Amplification |
30 dB (Ref 1V) |
|
|
Input Sensitivity |
-6 dB full scale |
|
|
Frequency Response |
20 Hz - 20 kHz |
|
|
Signal-to-Noise Ratio |
>105 dB/A |
|
|
THD |
< 0.05% typ., < 0.01% 1kHz -6dB |
|
|
Protection Circuit |
Soft start, thermal overload, short circuit, overload |
|
|
Power Supply |
Airea Network 50V |
|
|
Power Handling |
Standby 5 W, Airea network load 200W |
|
|
Power Factor (PFC) |
> 90 % |
|
|
Protection |
Integrated semiconductor fuse |
|
|
Low Power Consumption |
Green Power standby mode |
|
|
Emergency power possible |
With external UPS |
|
|
Temperature Range |
0 – 40°C |
|
|
Cooling |
Passive |
|
|
Electronic Weight |
0.3 kg |
|
|
Controllers |
|
|
|
Digital Signal Processors |
2 |
|
|
Independent Limiters |
4 |
|
|
3-band selective limiting |
Bass/Mid/Treble |
|
|
Band-specific time constants |
Yes |
|
|
Filter Technology |
56-bit double precision |
|
|
Input |
AES/EBU 32kHz – 96kHz, 16/24 Bit |
|
|
FIR Filter |
Yes |
|
|
Gain |
-80 dB - +12 dB |
|
|
Volume |
-80 dB - +12 dB |
|
|
EQ |
10-band parametric EQ, Gain, +/-12 dB, Frequency 10 -20 kHz, Q 0.1 – 100 |
|
|
Limiter Compressor |
Yes |
|
|
Noise Gate |
Yes |
|
|
Passive Filter |
Linkwitz-Riley 4th order, 24 dB/octave, high-pass 10 Hz -20 kHz, low-pass 10 Hz - 20 kHz |
|
|
Delay |
0 - 145 ms (0 - 50 m) |
|
|
User Presets |
100 |
|
|
System Latency |
0.95 ms |
|
|
Connections |
|
|
|
AIREA Network |
1 x RJ-45 in, 1 x RJ-45 link out |
|
|
AIREA Network Load |
200W |
|
|
Displays |
|
|
|
On/Off (Standby) |
Green = on, red = standby, red/green flashing = fault |
|
|
Identification, Signalling |
Blue, blue flashing |
|
|
Front identification and signalling LED |
Blue, blue flashing |
|
|
Network Control |
Remote control receive/send LED |
|
