Fohhn - 500W Subwoofer, black

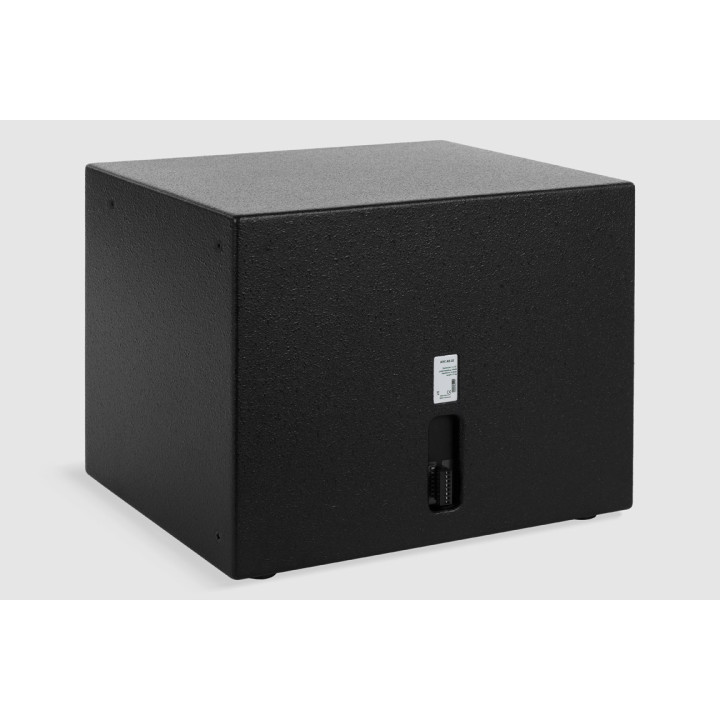

Fohhn AS-22 Sub - 500W Subwoofer, black
1003223
The Fohhn® AS-22 is a compact subwoofer system, 500 W, 1x 12, vented design, approx. 21 kg, without crossover for 2-channel active operation
PRICE ON REQUEST
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Fohhn 500W subwoofer, black
High-performance subwoofer system with vented enclosure for precise and powerful reproduction of low frequencies. With a power capacity of 500 W, the subwoofer can generate a maximum sound pressure level of 127 dB. The system features a high-quality multi-layer birch plywood enclosure with a robust black textured paint finish and compact dimensions. Available on request in all RAL Classic colours.To protect the chassis and electronics of the subwoofer, the enclosure features a high-quality, impact-resistant, sound-permeable front grille made of powder-coated steel, with moisture and dust-repelling acoustic foam at the rear. The system also has 6 M8 threaded inserts for secure wall and ceiling mounting. Optionally available with weather and scratch-resistant polyurethane coating.
Connections: The system is equipped with an 8-pin screw-type and plug-in Phoenix terminal block for easy installation.
High-performance subwoofer system with vented enclosure for precise and powerful reproduction of low frequencies. With a power capacity of 500 W, the subwoofer can generate a maximum sound pressure level of 127 dB. The system features a high-quality multi-layer birch plywood enclosure with a robust black textured paint finish and compact dimensions. Available on request in all RAL Classic colours.To protect the chassis and electronics of the subwoofer, the enclosure features a high-quality, impact-resistant, sound-permeable front grille made of powder-coated steel, with moisture and dust-repelling acoustic foam at the rear. The system also has 6 M8 threaded inserts for secure wall and ceiling mounting. Optionally available with weather and scratch-resistant polyurethane coating.
Connections: The system is equipped with an 8-pin screw-type and plug-in Phoenix terminal block for easy installation.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Vented design, NTP (Non-Turbulent Port design) |
|
|
Components |
1x 12" long-excursion |
|
|
Rated power |
500 W |
|
|
Max SPL |
127 dB |
|
|
Frequency range |
38 Hz – 500 Hz |
|
|
Impedance |
4 ohms |
|
|
Features |
|
|
|
Enclosure |
Birch multiplex plywood |
|
|
Protective grille |
Steel, impact-resistant, powder-coated |
|
|
Mounting points |
6x M8 thread |
|
|
Connections |
2 x 4-pin connectors |
|
|
Standard colour |
Black, textured paint |
|
|
Front design |
Acoustically transparent foam in enclosure colour |
|
|
Dimensions (W x H x D) |
Approx. 52 x 42 x 43 cm |
|
|
Weight |
Approx. 21 kg |
|
|
Optional features |
|
|
|
Optional colours |
All RAL colours |
|
|
Weather resistance |
Scratch-resistant polyurethane coating, impregnated speaker membranes |
