Fohhn - 500W Subwoofer, white

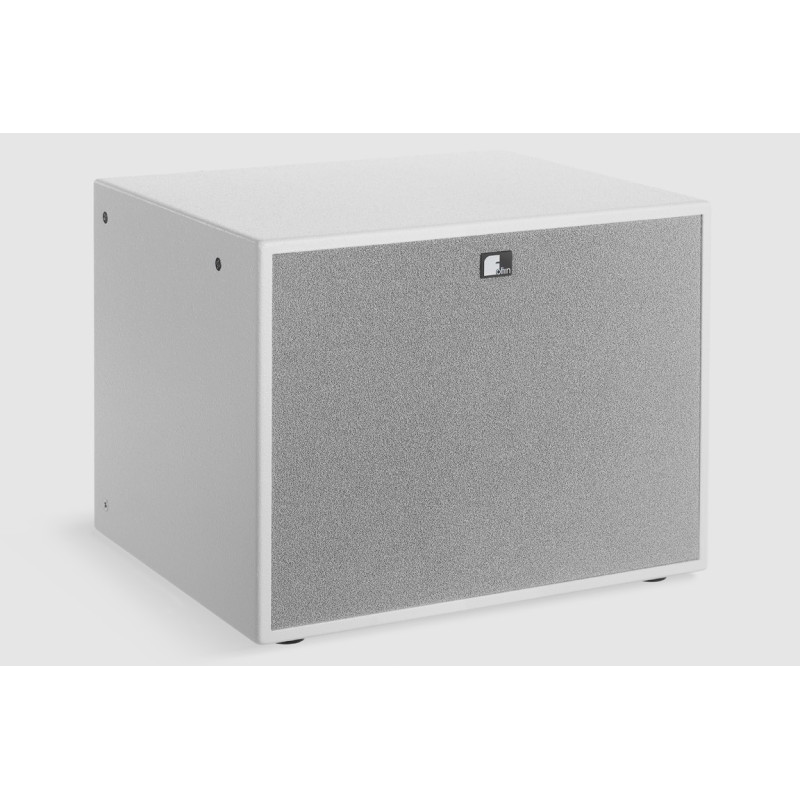

Fohhn AS-22 Sub - 500W Subwoofer, white
1003224
The Fohhn® AS-22 is a compact subwoofer system, 500 W, 1x 12, vented design, approx. 21 kg, without crossover for 2-channel active operation
PRICE ON REQUEST
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Fohhn 500W Subwoofer, white
High-performance subwoofer system with vented enclosure for precise and powerful low-frequency reproduction. With 500W power, the subwoofer can generate a maximum sound pressure level of 127 dB. The system features a high-quality birch multiplex plywood enclosure with a robust black textured paint finish and compact dimensions. Available on request in all RAL Classic colours.To protect the chassis and electronics of the subwoofer, the enclosure is equipped with a high-quality front grille that is impact-resistant and acoustically transparent, made from powder-coated steel, with moisture and dust-resistant acoustic foam. The system also includes 6 M8 threaded inserts for secure wall and ceiling mounting. Optionally available with weather and scratch-resistant polyurethane coating.
Connections: The system is equipped with an 8-pin Phoenix screw terminal for easy installation.
High-performance subwoofer system with vented enclosure for precise and powerful low-frequency reproduction. With 500W power, the subwoofer can generate a maximum sound pressure level of 127 dB. The system features a high-quality birch multiplex plywood enclosure with a robust black textured paint finish and compact dimensions. Available on request in all RAL Classic colours.To protect the chassis and electronics of the subwoofer, the enclosure is equipped with a high-quality front grille that is impact-resistant and acoustically transparent, made from powder-coated steel, with moisture and dust-resistant acoustic foam. The system also includes 6 M8 threaded inserts for secure wall and ceiling mounting. Optionally available with weather and scratch-resistant polyurethane coating.
Connections: The system is equipped with an 8-pin Phoenix screw terminal for easy installation.
|
|
Specifications |
|
|
Electro-acoustic specifications |
|
|
|
Acoustic design |
Vented design, NTP (Non-Turbulent Port design) |
|
|
Components |
1x 12" long excursion |
|
|
Rated power |
500 W |
|
|
Max. SPL |
127 dB |
|
|
Frequency range |
38 Hz – 500 Hz |
|
|
Impedance |
4 ohms |
|
|
Features |
|
|
|
Enclosure |
Birch multiplex plywood |
|
|
Protective grille |
Steel, impact-resistant, powder-coated |
|
|
Mounting points |
6x M8 threaded inserts |
|
|
Connections |
2x 4-pin connectors |
|
|
Standard colour |
White textured paint |
|
|
Front design |
Acoustically transparent foam matched to speaker colour |
|
|
Dimensions (W x H x D) |
Approximately 52 x 42 x 43 cm |
|
|
Weight |
Approximately 21 kg |
|
|
Optional features |
|
|
|
Optional colours |
All RAL colours |
|
|
Weather resistance |
Scratch-resistant polyurethane coating, impregnated speaker membranes |
