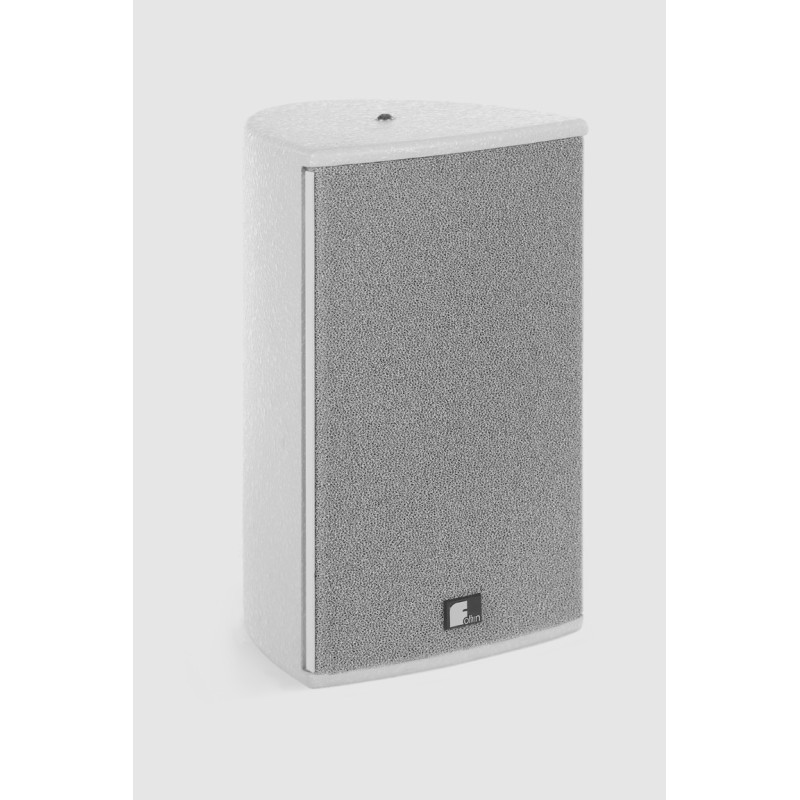

Fohhn AT-05 Top - Speaker, white
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Compact 2-way passive loudspeaker in a design housing, equipped with a 5" long-excursion mid-bass driver and a 1" dome tweeter with short horn in a time-aligned configuration. The loudspeaker can temporarily operate at 320 W and generates a maximum sound pressure of 110 dB. In a frequency range of 60 Hz to 20 kHz, the loudspeaker has a defined dispersion of 90° x 90° (h x v). Design MDF housing with rounded sides and durable textured paint, available in black or white. Optionally available in all RAL colours. For the protection of the drivers and electronics, the housing is equipped with a shock-resistant front grille, extremely permeable to sound, made of powder-coated steel and fitted with water-repellent and dust-proof acoustic foam. Five M6 threaded applications are integrated on the bottom and top sides to accept suspension rings and system brackets. The loudspeaker system is optionally available with 100V technology in different performance classes up to 25 W. Connections: 8-pin Phoenix terminal block, screw-in and plug-in, very easy to assemble. All contacts exist in duplicate, for very easy and safe connection to the next loudspeaker. Specific brackets for system assembly on ceilings, walls and crossbeams are available as options. CAAD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Compact, passive, 2-way, bass-reflex enclosure |
|
|
Components |
5" / 1" dome with horn, with HF Polyswitch auto-reset protection |
|
|
Rated power (nominal) |
80 W |
|
|
Rated power (programme) |
160 W |
|
|
Rated power (peak) |
320 W |
|
|
Sensitivity |
88 dB |
|
|
Maximum SPL |
110 dB |
|
|
Frequency range |
60 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
90° x 90° |
|
|
Nominal impedance |
8 ohms |
|
|
Characteristics |
|
|
|
Housing |
Design MDF cabinet |
|
|
Protective grille |
Shock-resistant metal, powder-coated finish |
|
|
Mounting points |
5x M6 thread |
|
|
Connections |
8-pole Phoenix connector |
|
|
Standard colours |
Black or white textured finish |
|
|
Front design |
Acoustic foam, same colour as the housing |
|
|
Dimensions (W x H x D) |
Approximately 165 x 285 x 200 mm |
|
|
Weight |
Approximately 4.5 kg |
|
|
Optional features |
|
|
|
Integrated 100V transformer |
25/12.5/6.25 W |
|
|
Optional colours |
All RAL colours |
