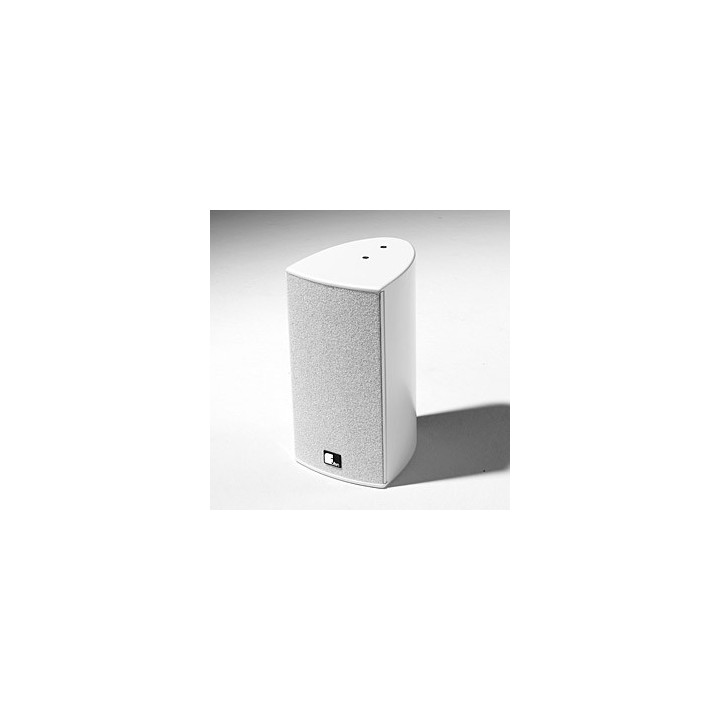

Fohhn - Speaker, white

Name: Fohhn AT-07 Top - Speaker, white
Brand: Fohhn
SKU: 1003234

Fohhn AT-07 Top - Speaker, white

SKU 1003234

The Fohhn® AT-07 impresses with its high performance capacity within such compact dimensions and extremely attractive design. It is designed for applications that require high acoustic output, but for aesthetic reasons, only allow compact dimensions

... learn more

PRICE ON REQUEST

Made to order

Delivery
- Shipped in 1 to 2 weeks
In-store pickup
- Available in 1 to 2 weeks

Please contact us

Description

Description

Fohhn loudspeaker, white The Fohhn® AT-07 impresses with its high performance in compact dimensions and extremely attractive design. It is designed for applications requiring high acoustic power, but only allowing compact dimensions for aesthetic reasons. The high-end configuration with a 6.5" mid-bass driver and a 1" compression driver with constant directivity horn ensures exceptional intelligibility. The elegant wooden enclosure is available in all RAL colours. The rounded wooden cabinet is internally reinforced with steel supports. TÜV-certified wall brackets and 8 M6 threaded inserts ensure quick and secure installation. Integral passive filter with electronic high-frequency protection. Can be combined with the AS-10 or AS-22 subwoofer.

Applications
- Conference and training rooms, 5.1 surround applications, clubs, installation under balconies or galleries, near-field sound transmission.
- Wooden enclosure, special weather-resistant plastic coating, impregnated loudspeakers, unchanged design and dimensions.

High-end 2-way passive loudspeaker in a design enclosure
High-end 2-way passive loudspeaker in a design enclosure, equipped with a 6.5" sub-mid driver and a 1" high-frequency driver on a rotatable CD horn in a time-aligned configuration. The loudspeaker can temporarily operate at 600 W and generates a maximum sound pressure of 123 dB. Over a wide frequency range from 65 Hz to 20 kHz, the loudspeaker has a defined dispersion of 90° x 60° (h x v). Design enclosure made of high-strength birch plywood with rounded sides, reinforced by internal metal supports to meet safety standards. Durable textured paint, available in black or white. Optionally available in all RAL colours. Optionally available with weather-resistant polyurethane coating and impregnated loudspeaker membranes. For protection of chassis and electronics, the enclosure is equipped with a bullet impact resistant front grille, extremely sound-permeable, made of powder-coated steel and fitted with water-repellent and dust-proof acoustic foam in the colour of the enclosure. Nine M6 threaded applications are integrated in the floor, rear and top for admission of lifting eyes and system supports. The loudspeaker system is optionally available with 100V technology in different performance classes up to 60 W. Connections: 1x Neutrik NL4 Speakon and internal four-pole terminal block. Special brackets for mounting the system to ceilings, walls and structures are available as options. CAAD simulation data for ULYSSES and EASE are available.

	Specifications
	Electro-acoustic characteristics
	Acoustic design	Passive loudspeaker, 2-way, bass reflex
	Components	6.5" / 1" on rotatable CD horn, with automatic reset HF Polyswitch protection
	Nominal power (rated)	150 W
	Nominal power (programme)	300 W
	Nominal power (peak)	600 W
	Sensitivity	96 dB
	Maximum SPL	123 dB
	Frequency range	65 Hz – 20 kHz
	Nominal dispersion (h x v)	90° x 60°
	Nominal impedance	16 ohms
	Features
	Enclosure	Design enclosure in birch plywood, metal reinforced
	Protective grille	Bullet impact resistant metal, powder-coated finish
	Mounting points	9x M6 threaded
	Connections	1x Neutrik NL4 Speakon and 4-pole connector inside
	Standard colours	Black or white textured finish
	Front design	Acoustic foam, same colour as the loudspeaker
	Dimensions (W x H x D)	Approximately 195 x 380 x 230 mm
	Weight	Approximately 7 kg
	Optional features
	Integrated 100 V transformer	60/30/15 W
	Optional colours	All RAL colours
