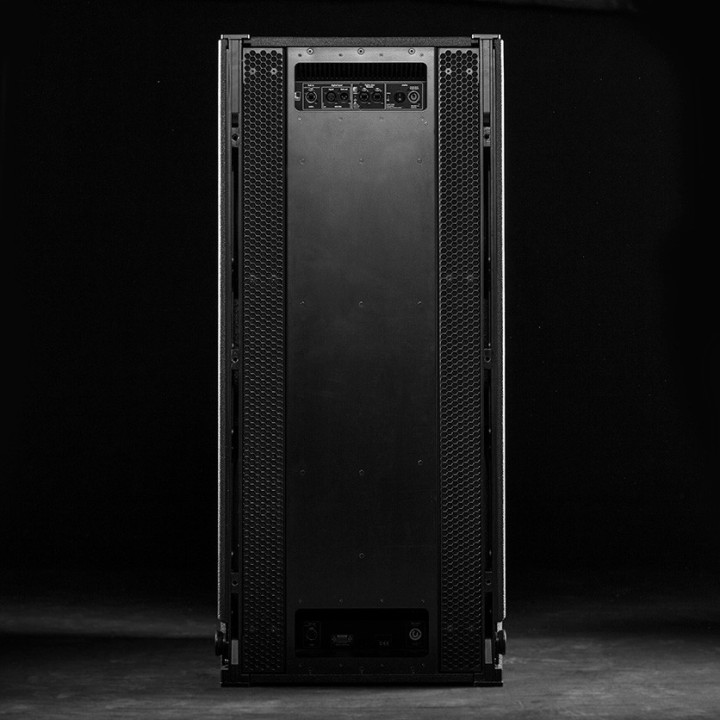

Fohhn FV-200 - Active concert sound system
1003305
Focus Venue is a fully integrated active concert sound system with built-in cutting-edge amplification, DSP and digital networking. It allows for precise control of dispersion characteristics / beams in real time, using intuitive software
PRICE ON REQUEST
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Fohhn active concert sound system
Beam steering technology for concert sound reinforcement.

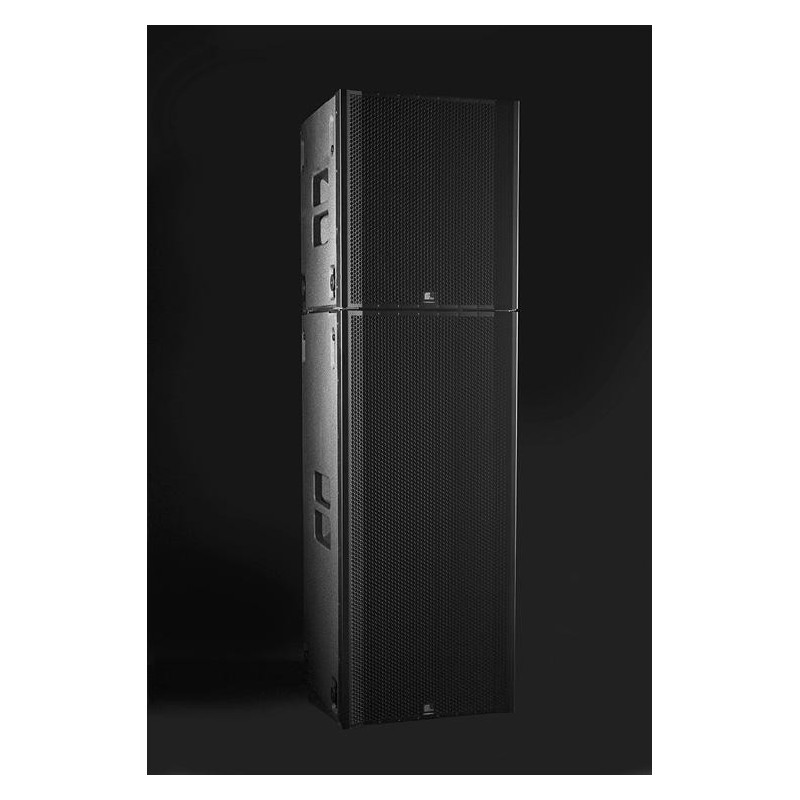

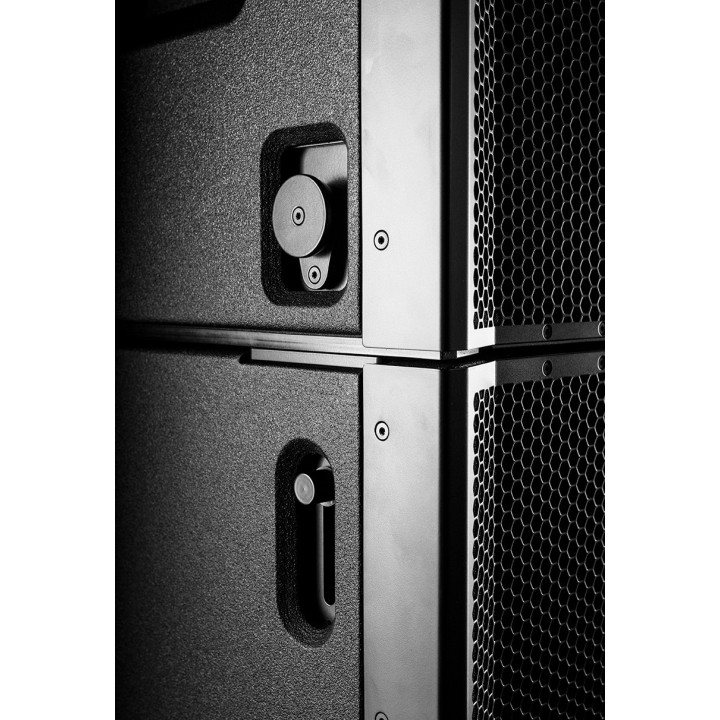

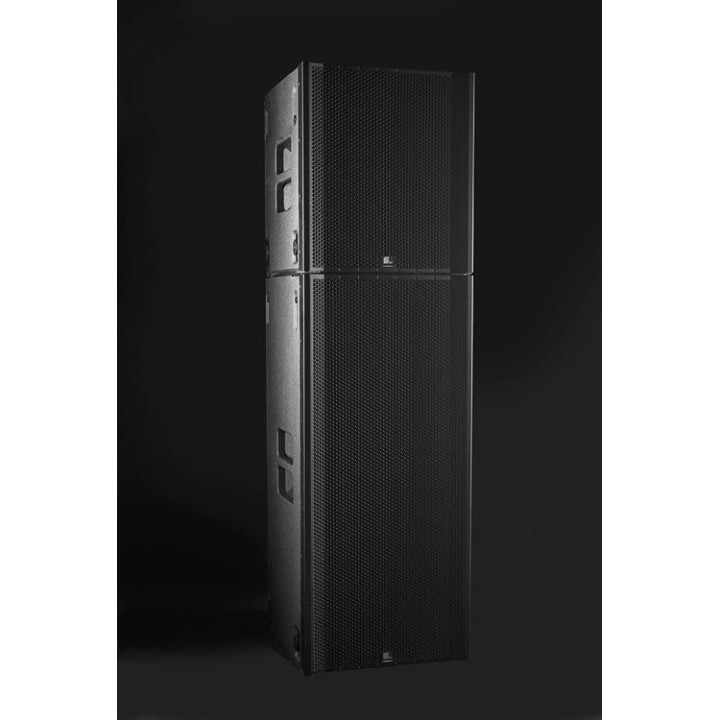

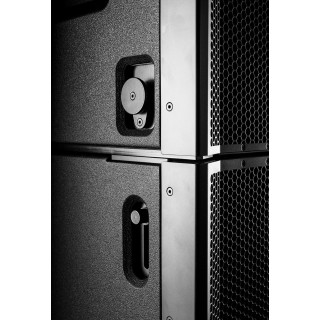

Focus Venue is a fully integrated active concert sound system with built-in amplification, DSP and state-of-the-art digital networking. It enables precise control of dispersion/beam characteristics in real time, using intuitive software. The system is always suspended and stacked straight - no mechanical curvature is required. It has a compact size and offers complete scalability, quick and safe rigging, and considerably reduced system setup time.
Overcome the acoustic restrictions of conventional line arrays.
Thanks to the proximity of the Focus Venue's high-frequency drivers and its multi-horn design, comb filter effects do not occur. (These occur, by definition, when using a conventional line array.) Therefore, natural sound and great clarity can always be guaranteed.
Fohhn Audio Soft (version 5.0) offers a complete set of features:
- Vertical dispersion: 0 – 90°
- Sound tilt angle: +/-40°
- Precise adjustment in 0.1° increments
- Two separate beams possible per module (Double Beam Technology)
- Effective suppression of unwanted side lobes (Side Lobe Free Technology)
- Mobile acoustic centre
- Asymmetric beams possible
- High-end audio tools such as parametric equaliser, dynamics, active filter, etc.
All this leads to exceptional uniformity of sound pressure levels and sound quality in every row. More direct sound. Fewer reflections in the room. Perfect intelligibility. Better results, even in difficult acoustics. Less sound pollution during outdoor events in the city.
Beam steering technology for concert sound reinforcement.
Focus Venue is a fully integrated active concert sound system with built-in amplification, DSP and state-of-the-art digital networking. It enables precise control of dispersion/beam characteristics in real time, using intuitive software. The system is always suspended and stacked straight - no mechanical curvature is required. It has a compact size and offers complete scalability, quick and safe rigging, and considerably reduced system setup time.
Overcome the acoustic restrictions of conventional line arrays.
Thanks to the proximity of the Focus Venue's high-frequency drivers and its multi-horn design, comb filter effects do not occur. (These occur, by definition, when using a conventional line array.) Therefore, natural sound and great clarity can always be guaranteed.
Fohhn Audio Soft (version 5.0) offers a complete set of features:
- Vertical dispersion: 0 – 90°
- Sound tilt angle: +/-40°
- Precise adjustment in 0.1° increments
- Two separate beams possible per module (Double Beam Technology)
- Effective suppression of unwanted side lobes (Side Lobe Free Technology)
- Mobile acoustic centre
- Asymmetric beams possible
- High-end audio tools such as parametric equaliser, dynamics, active filter, etc.
All this leads to exceptional uniformity of sound pressure levels and sound quality in every row. More direct sound. Fewer reflections in the room. Perfect intelligibility. Better results, even in difficult acoustics. Less sound pollution during outdoor events in the city.
Specifications:
FV-200 (low-mid module):
- 8 × high-excursion 10˝ bass drivers
- Horn waveguide design, Cardioid Technology (CDT)
- 4 × CLASS D 1000 W DSP amplifiers
- 4 × DSP
- Max. SPL: 145 dB
FV-200 (low-mid module):
- 8 × high-excursion 10˝ bass drivers
- Horn waveguide design, Cardioid Technology (CDT)
- 4 × CLASS D 1000 W DSP amplifiers
- 4 × DSP
- Max. SPL: 145 dB
Focus Venue is a fully integrated active concert sound system with built-in cutting-edge amplification, DSP and digital networking. It allows for precise control of dispersion characteristics / beams in real time, using intuitive software
