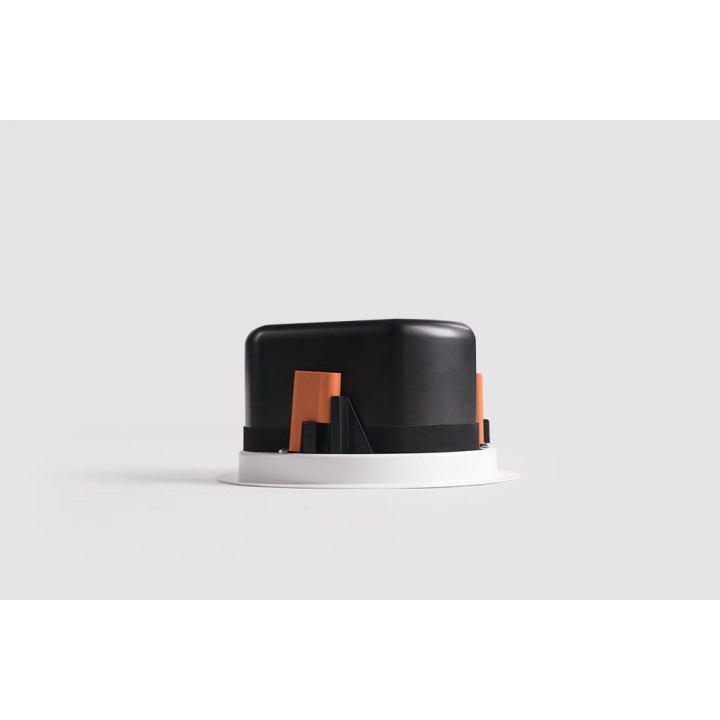

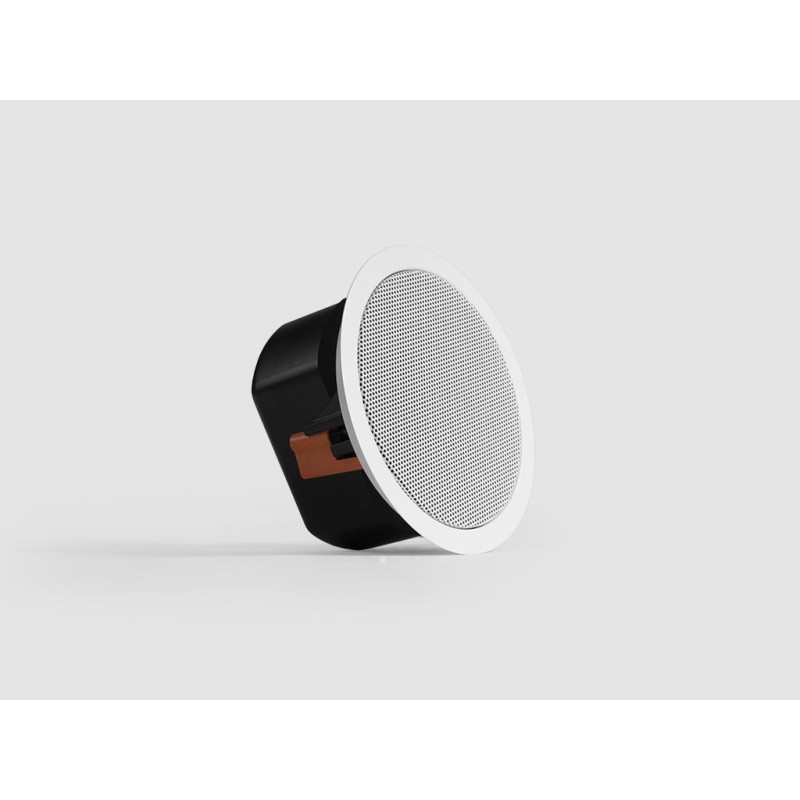

Fohhn - Compact ceiling speaker, white
Fohhn IG-100 - Compact ceiling speaker, white
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The INTEGRATO IG-100 is a compact ceiling speaker with a 2-way coaxial design: The speaker is fitted with a 4" woofer, with a 0.75" high-frequency driver positioned in front, and a filter with high-frequency driver protection. The system also offers exceptionally uniform beam dispersion (100° conical). The IG-100 features a fire-resistant metal housing, with a maximum mounting depth of 99 mm, and a flat protective grille - this grille is magnetically attached and can be easily removed. On the side of the housing there is a safety eyelet. The ceiling speaker is also equipped with an integrated 100 Volt transformer and a 5-position selector. This allows selection of a low-impedance control (16 ohms) and three settings for 100 V operation (30/15/7.5 W). During installation or calibration, the system can be completely switched off if required.
|
|
Specifications |
|
|
Electroacoustic characteristics |
|
|
|
Acoustic design |
Ceiling speaker, 2-way coaxial |
|
|
Components |
1 x weather-resistant 4" cone / 0.75" tweeter, with self-resetting HF protection |
|
|
Nominal power (16 ohms, nominal) |
50 W |
|
|
Nominal power (16 ohms, programme) |
100 W |
|
|
Nominal power (16 ohms, peak) |
200 W |
|
|
Sensitivity |
86 dB |
|
|
Maximum SPL (16 ohms) |
109 dB |
|
|
Frequency range |
85 Hz – 20 kHz |
|
|
Nominal dispersion |
100° conical |
|
|
Specifications |
|
|
|
Housing |
Steel fire dome, powder-coated |
|
|
Protective grille |
Steel grille, powder-coated |
|
|
Fixing points |
3 x rotary mounting clamp, 1 x steel safety latch |
|
|
Connections |
Tool-free quick connectors with loop-through option |
|
|
Integrated 100 V transformer |
Switchable 30/15/7.5W - OFF - 16 ohms |
|
|
Standard colours |
White (RAL 9016) |
|
|
Dimensions (D x H) |
202 Ø x 100 mm |
|
|
Front panel dimension |
Ø 202 mm |
|
|
Installation depth |
99 mm |
|
|
Ceiling cut-out diameter |
Ø 176 mm |
|
|
Weight |
1.8 kg |
|
|
Optional features |
|
|
|
Optional colours |
All RAL colours |
