Fohhn - Active 2-way loudspeaker, black
Fohhn LX-10 ASX - Active 2-way loudspeaker, black
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Ultra-compact 2-way active loudspeaker with DSP, 4" loudspeaker / 0.75" tweeter, coaxial configuration, 50 W, AIREA Net load: 50 W. Active loudspeakers with integrated digital amplifier and DSP technology. The amplifier can be considered a 2-channel device. This enables separate control of the high-frequency and mid-bass loudspeakers. Combined with multi-channel DSPs, this ensures optimal sound quality, wide dynamic range, flat frequency response and optimal loudspeaker protection. In total, three compact broadband models and three subwoofers are available.
Compact active 2-way loudspeaker with aluminium housing for use in a digital audio network system

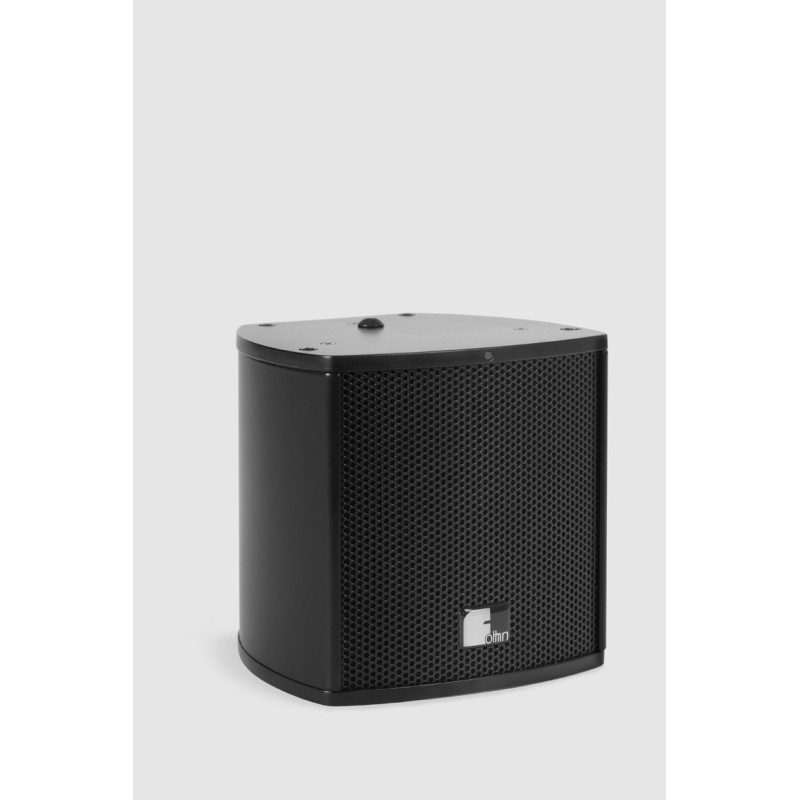

Active loudspeaker with integrated 2-channel digital amplifier and DSP technology, equipped with a 4" premium loudspeaker / 0.75" dome tweeter. The use of neodymium loudspeakers and an aluminium housing makes the loudspeaker very lightweight - approximately 1.3 kg. Ideally suited for dynamic reproduction of speech and music, its elegant design also allows perfect optical integration. With a capacity of up to 50 W, the loudspeaker can generate a maximum SPL of 110 dB. The loudspeaker has a very precise dispersion of 100° x 100° (h x v) and a wide frequency range from 80 Hz to 20 kHz. Lightweight aluminium housing with rounded sides, black or white powder coating. Optionally available in all RAL Classic colours and Fohhn Texture Design. Other colour catalogues are also possible on request. To protect the loudspeakers and electronics, the housing is equipped with a high-quality front grille, bullet-resistant, acoustically transparent, made of galvanised steel with powder coating. Two integrated M6 threaded inserts are designed to accommodate mounting brackets. CAAD simulation files for EASE are available. Developed for dedicated use in a digital audio network system comprising active loudspeakers with integrated digital amplifiers and DSP technology, master modules and other system components.

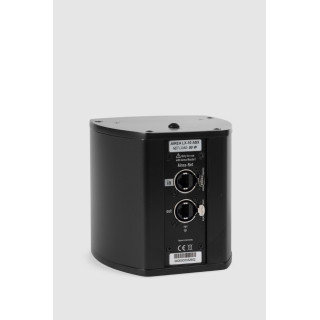

Connections: Input via RJ-45 (Neutrik etherCON) for digital AES/EBU signals, control signals and power supply. Output via RJ-45 link out (Neutrik etherCON) enabling series connection (daisy chain) to other system components.
|
|
Specifications |
|
|
Electroacoustic characteristics |
|
|
|
Acoustic design |
Compact active nearfield loudspeaker, 2-way, coaxial |
|
|
Components |
1 x 4" / 0.75" dome tweeter, full neodymium |
|
|
Total rated power |
50 W |
|
|
Operating mode |
Active, DSP amplifier 2x Class D |
|
|
Maximum SPL |
110 dB |
|
|
Frequency range |
80 Hz - 20 kHz |
|
|
Nominal dispersion (h x v) [6.1] |
100° x 100° |
|
|
Features |
|
|
|
Loudspeaker |
Aluminium housing |
|
|
Protective grille |
Bullet-resistant impact-resistant steel grille, powder coated |
|
|
Mounting points |
2x M6 thread |
|
|
Standard colours |
Black or white powder coating |
|
|
Front design |
Metal grille in housing colour |
|
|
Dimensions (W x H x D) |
130 x 130 x 120 mm |
|
|
Weight |
1.3 kg |
|
|
Optional functions |
|
|
|
Optional colours |
All RAL Classic colours, Fohhn Texture Design |
|
|
Remote control, remote monitoring and simulation |
||
|
Remote control |
AIREA-Net, Fohhn Audio Soft |
|
|
Remote monitoring |
Temperature, protection, signals, power supply, Fohhn-Net, Fohhn Audio Soft, AES/EBU available |
|
|
Fault contact |
- |
|
|
Beam simulation |
- |
|
|
Electronic performance |
|
|
|
Amplifier output |
2 x 300W |
|
|
Amplifier type |
Pure Path Digital PWM |
|
|
Audio inputs |
2 independent audio channels, AES/EBU 32 kHz -96 kHz, 16/24 bit |
|
|
Audio outputs |
2 x 300 W internal |
|
|
DSP channels |
Fohhn Audio DSP |
|
|
Amplification |
30 dB (Ref 1V) |
|
|
Input sensitivity |
-6 dB full scale |
|
|
Frequency response |
20 Hz - 20 kHz |
|
|
Signal-to-noise ratio |
>105 dB/A |
|
|
THD |
< 0.05% typ. , < 0.01% 1kHz -6dB |
|
|
Protection circuit |
Soft start, protection against overheating, short circuit, overload |
|
|
Power supply |
Airea Net 50V |
|
|
Power capacity |
Standby 5 W, Airea Net load 50W |
|
|
Power factor (PFC) |
> 90 % |
|
|
Protection |
Integrated semiconductor fuse |
|
|
Low power consumption |
Green Power standby mode |
|
|
Backup power supply possible |
With external UPS |
|
|
Temperature range |
0 – 40°C |
|
|
Cooling |
Passive |
|
|
Electronic weight |
0.3 kg |
|
|
Controllers |
|
|
|
Digital signal processors |
2 |
|
|
Independent limiters |
4 |
|
|
3-band selective limiting |
Bass/midrange/treble |
|
|
Band-specific time constants |
Yes |
|
|
Filtering technology |
56-bit double precision |
|
|
Input |
AES/EBU 32kHz – 96kHz, 16/24 bit |
|
|
FIR filter |
Yes |
|
|
Gain |
-80 dB - +12 dB |
|
|
Volume |
-80 dB - +12 dB |
|
|
EQ |
10-band parametric EQ, Gain, +/-12 dB, Frequency 10 - 20 kHz, Q 0.1 – 100 |
|
|
Compressor limiter |
Yes |
|
|
Noise gate |
Yes |
|
|
Filter |
Linkwitz-Riley 4th order, 24 dB/octave, high-pass 10 Hz -20 kHz, low-pass 10 Hz - 20 kHz |
|
|
Delay |
0 - 145 ms (0 - 50 m) |
|
|
User presets |
100 |
|
|
System latency |
0.95 ms |
|
|
Connections |
|
|
|
AIREA-Net |
1 x RJ-45 input, 1 x RJ-45 link output |
|
|
Airea Net load |
50W |
|
|
Displays |
|
|
|
On/off (standby) |
Green = on, red = standby, red / green flashing = fault |
|
|
Sign, identification |
Blue, flashing blue |
|
|
Sign, front identification LED |
Blue, flashing blue |
|
|
Network control |
Remote control receive/transmit LED |
|
