Fohhn - Active 2-way loudspeaker, white
Fohhn LX-10 ASX - Active 2-way loudspeaker, white
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Ultra-compact 2-way active loudspeaker with DSP, 4"" / 0.75"" loudspeaker, coaxial configuration, 50 W, AIREA Net Load: 50 W. Active loudspeakers with integrated digital amplifier and DSP technology. The amplifier can be considered as a 2-channel device. This allows separate control of the high-frequency and mid-bass loudspeakers. In combination with multi-channel DSPs, this ensures optimum sound quality, wide dynamic range, flat frequency response and optimum loudspeaker protection. A total of three compact wide-range models and three subwoofers are available.
Compact 2-way active loudspeaker with aluminium enclosure for use in a digital audio network system

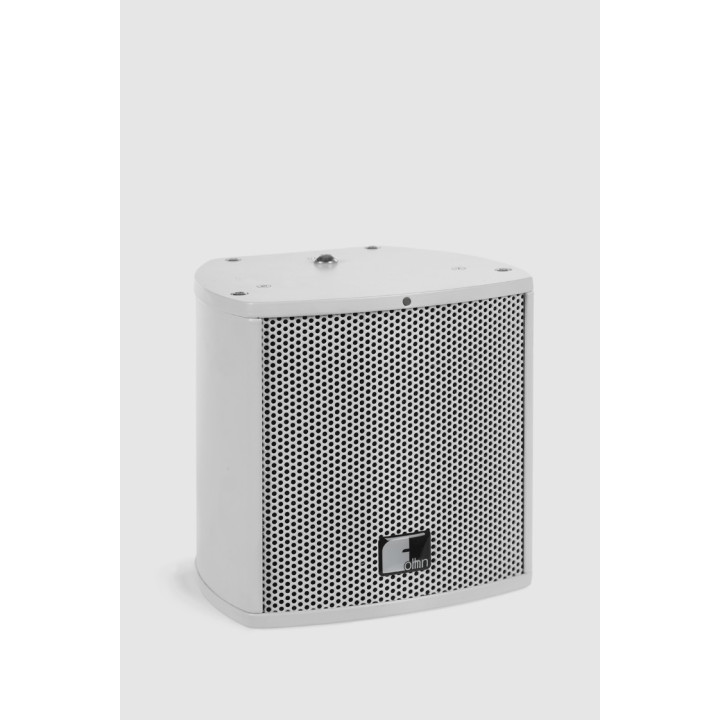

Active system loudspeaker with integrated 2-channel digital amplifier and DSP technology, equipped with a high-quality 4"" / 0.75"" dome tweeter. The use of neodymium loudspeakers and an aluminium enclosure makes the loudspeaker very lightweight - approximately 1.3 kg. Ideally suited for dynamic reproduction of speech and music, its elegant design also allows perfect visual integration. With a capacity of up to 50 W, the loudspeaker can generate a maximum SPL of 110 dB. The loudspeaker features very precise dispersion of 100° x 100° (h x v) and a wide frequency range from 80 Hz to 20 kHz. Lightweight aluminium enclosure with rounded sides, black or white powder coating. Optionally available in all RAL Classic colours and Fohhn Texture Design. Other colour catalogues are also possible on request. To protect the loudspeakers and electronics, the enclosure is equipped with a high-quality, bullet-resistant, acoustically transparent front grille made of galvanised steel with powder coating. Two integrated M6 threaded inserts are designed to accommodate mounting brackets. CAAD simulation files for EASE are available. Developed for dedicated use in a digital audio network system that includes active loudspeakers with integrated digital amplifiers and DSP technology, master modules and other system components.

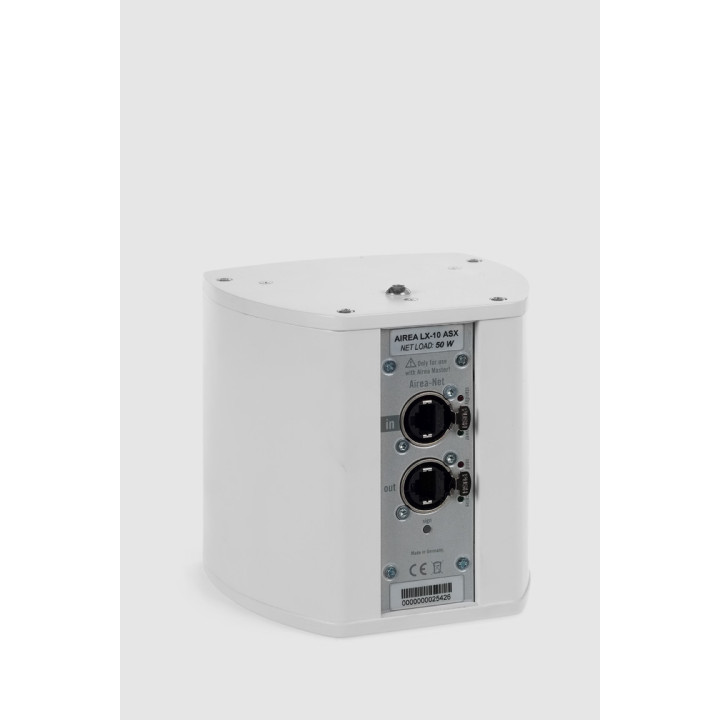

Connections: Input via RJ-45 (Neutrik etherCON) for AES/EBU digital signals, control signals and power supply. Output via RJ-45 link out (Neutrik etherCON) allowing daisy-chaining of other system components.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Compact active 2-way coaxial nearfield loudspeaker |
|
|
Components |
1 x 4"" / 0.75"" dome tweeter, full neodymium |
|
|
Total rated power |
50 W |
|
|
Operating mode |
Active, 2x Class D DSP amplifier |
|
|
Maximum SPL |
110 dB |
|
|
Frequency range |
80 Hz - 20 kHz |
|
|
Nominal dispersion (h x v) [6.1] |
100° x 100° |
|
|
Characteristics |
|
|
|
Loudspeaker |
Aluminium enclosure |
|
|
Protection grille |
Anti-tamper steel grille, powder coating |
|
|
Mounting points |
2x M6 thread |
|
|
Standard colours |
Black or white powder coating |
|
|
Front design |
Metal grille in enclosure colour |
|
|
Dimensions (W x H x D) |
130 x 130 x 120 mm |
|
|
Weight |
1.3 kg |
|
|
Optional features |
|
|
|
Optional colours |
All RAL Classic colours, Fohhn Texture Design |
|
|
Remote control, remote monitoring and simulation |
||
|
Remote control |
AIREA-Net, Fohhn Audio Soft |
|
|
Remote monitoring |
Temperature, protection, signals, power supply, Fohhn-Net, Fohhn Audio Soft, AES/EBU available |
|
|
Fault contact |
- |
|
|
Beam simulation |
- |
|
|
Electronic performance |
|
|
|
Amplifier output |
2 x 300W |
|
|
Amplifier type |
Pure Path Digital PWM |
|
|
Audio inputs |
2 independent audio channels, AES/EBU 32 kHz -96 kHz, 16/24 Bits |
|
|
Audio outputs |
2 x 300 W internal |
|
|
DSP channels |
Fohhn Audio DSP |
|
|
Amplification |
30 dB (Ref 1V) |
|
|
Input sensitivity |
-6 dB full scale |
|
|
Frequency response |
20 Hz - 20 kHz |
|
|
Signal-to-noise ratio |
>105 dB/A |
|
|
THD |
< 0.05% typ. , < 0.01% 1kHz -6dB |
|
|
Protection circuit |
Soft start, overheating protection, short circuit, overload |
|
|
Power supply |
Airea Net 50V |
|
|
Power handling |
Standby 5 W, AIREA Net Load 50W |
|
|
Power factor (PFC) |
> 90 % |
|
|
Protection |
Integrated semiconductor fuse |
|
|
Low power consumption |
Low power standby mode |
|
|
Backup power supply possible |
With external inverter |
|
|
Temperature range |
0 – 40°C |
|
|
Cooling |
Passive |
|
|
Electronics weight |
0.3 kg |
|
|
Controllers |
|
|
|
Digital signal processors |
2 |
|
|
Independent limiters |
4 |
|
|
Selective 3-band limiting |
Bass/midrange/treble |
|
|
Band-specific time constants |
Yes |
|
|
Filter technology |
56-bit double precision |
|
|
Input |
AES/EBU 32kHz – 96kHz, 16/24 Bits |
|
|
FIR filter |
Yes |
|
|
Gain |
-80 dB - +12 dB |
|
|
Volume |
-80 dB - +12 dB |
|
|
Equalisation |
10-band parametric EQ, Gain, +/-12 dB, Frequency 10 - 20 kHz, Q 0.1 – 100 |
|
|
Compressor limiter |
Yes |
|
|
Noise Gate |
Yes |
|
|
Filter |
Linkwitz-Riley 4th order, 24 dB/octave, high-pass 10 Hz -20 kHz, low-pass 10 Hz - 20 kHz |
|
|
Delay |
0 - 145 ms (0 - 50 m) |
|
|
User presets |
100 |
|
|
System latency |
0.95 ms |
|
|
Connections |
|
|
|
AIREA-Net |
1 x RJ-45 in, 1 x RJ-45 link out |
|
|
AIREA Net net load |
50W |
|
|
Displays |
|
|
|
On/off (standby) |
Green = on, red = standby, red/green flashing = fault |
|
|
Signalling, identification |
Blue, blue flashing |
|
|
Front identification LED |
Blue, blue flashing |
|
|
Network control |
Remote control receive/transmit LED |
|
