Fohhn - Active 2-way loudspeaker, black
Fohhn LX-20 ASX - Active 2-way loudspeaker, black
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
100 W. Active loudspeakers with integrated digital amplifier and DSP technology. The amplifier can be considered as a 2-channel device. This allows separate control of the high-frequency and low-mid drivers. In combination with the multi-channel DSPs, this ensures optimum sound quality, wide dynamic range, flat frequency response and optimal loudspeaker protection. A total of three compact broadband models and three subwoofers are available.
Compact 2-way active loudspeaker system with aluminium enclosure for use in a digital audio network system

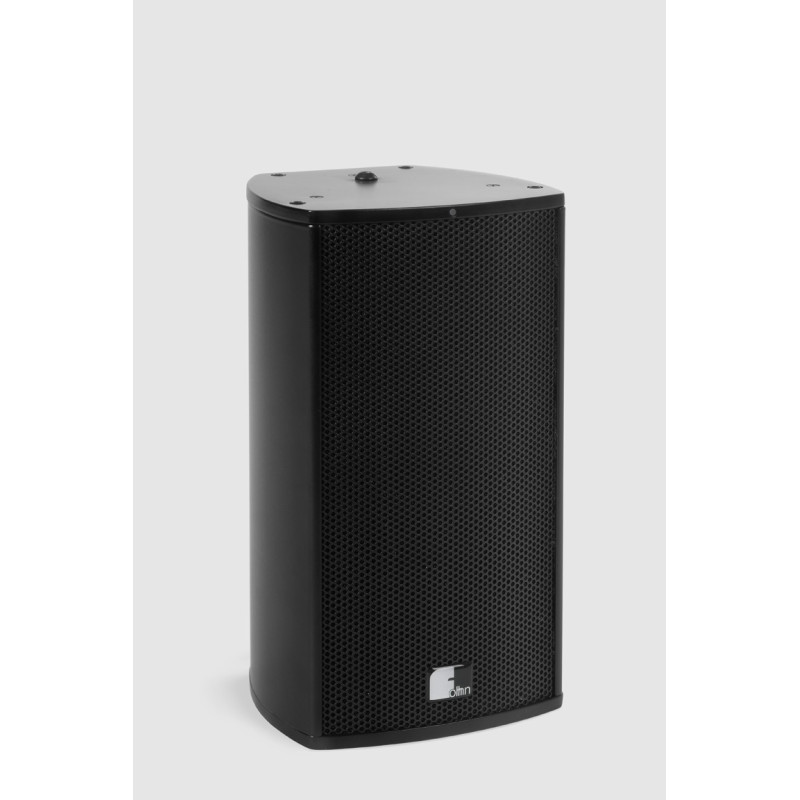

Active loudspeaker system with integrated 2-channel digital amplifier and DSP technology, equipped with high-quality 2 x 4" / 0.75" dome tweeters. The use of neodymium chassis and an aluminium enclosure makes the loudspeaker very light – approximately 1.9 kg. Ideally suited for dynamic speech and music reproduction, its elegant design also allows perfect optical integration. With a capacity of up to 100 W, the loudspeaker can generate a maximum SPL of 116 dB. The loudspeaker has a very precise dispersion of 130° x 80° (h x v) and a wide frequency range from 80 Hz to 20 kHz. Lightweight aluminium enclosure with rounded sides, black or white powder coating. Optionally available in all RAL Classic colours and Fohhn Texture Design. Other colour catalogues are also possible on request. To protect the loudspeaker chassis and electronics, the enclosure is equipped with a high-quality front grille, ball-impact resistant, acoustically transparent, made of galvanised steel with powder coating. Four M6 threaded inserts integrated into the base, rear panel and top of the unit are designed to accommodate mounting brackets. CAAD simulation files for EASE are available. Developed for dedicated use in a digital audio network system that includes active loudspeakers with integrated digital amplifiers and DSP technology, master modules and other system components.

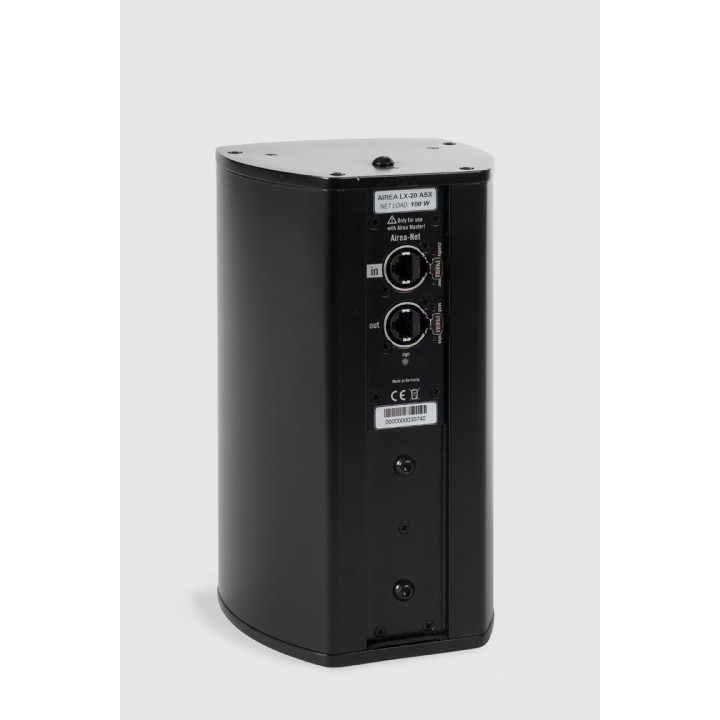

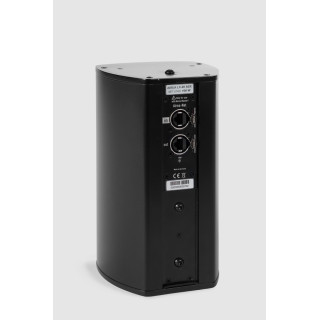

Connections: Input via RJ-45 (Neutrik etherCON) for AES/EBU digital signals, control signals and power supply. Output via RJ-45 link out (Neutrik etherCON) allowing serial connection (Daisy Chain) to other system components.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Compact active nearfield loudspeaker, 2-way |
|
|
Components |
2 x 4" dome tweeter, fully neodymium |
|
|
Total rated power |
100 W |
|
|
Operating mode |
Active, 2x Class-D DSP amplifier |
|
|
Maximum SPL |
116 dB |
|
|
Frequency range |
80 Hz - 20 kHz |
|
|
Nominal dispersion (h x v) |
130° x 80° |
|
|
Features |
|
|
|
Enclosure |
Aluminium enclosure |
|
|
Protective grille |
Ball-impact resistant steel grille, powder coated |
|
|
Mounting points |
4x M6 thread |
|
|
Standard colours |
Black or white powder coating |
|
|
Façade design |
Metal grille in enclosure colour |
|
|
Dimensions (W x H x D) |
130 x 232 x 120 mm |
|
|
Weight |
1.9 kg |
|
|
Optional features |
|
|
|
Optional colours |
All RAL Classic colours, Fohhn Texture Design |
|
|
Remote control, Remote monitoring and Simulation |
||
|
Remote control |
AIREA-Net, Fohhn Audio Soft |
|
|
Remote monitoring |
Temperature, protection, signals, power supply, Fohhn-Net, Fohhn Audio Soft, AES/EBU available |
|
|
Fault contact |
- |
|
|
Simulation file |
- |
|
|
Electronic performance |
|
|
|
Amplifier output |
2 x 300W |
|
|
Amplifier type |
Pure Path Digital PWM |
|
|
Audio inputs |
2 independent audio channels, AES/EBU 32 kHz -96 kHz, 16/24 Bit |
|
|
Audio outputs |
2 x 300W internal |
|
|
DSP channels |
Fohhn Audio DSP |
|
|
Amplification |
30 dB (Ref 1V) |
|
|
Input sensitivity |
-6 dB full scale |
|
|
Frequency response |
20 Hz - 20 kHz |
|
|
S/N ratio |
>105 dB/A |
|
|
THD |
< 0.05% typ. , < 0.01% 1kHz -6dB |
|
|
Protection circuit |
Soft start, thermal overload, short circuit, overload |
|
|
Power supply |
Airea Net 50V |
|
|
Processing capacity |
Standby 5 W, Airea Net Load 50W |
|
|
Power factor (PFC) |
> 90 % |
|
|
Protection |
Integrated semiconductor fuse |
|
|
Low power consumption |
Green Power standby mode |
|
|
Back-up power possible |
With external UPS |
|
|
Temperature range |
0 – 40°C |
|
|
Cooling |
Passive |
|
|
Electronics weight |
0.3 kg |
|
|
Controllers |
|
|
|
Digital signal processors |
2 |
|
|
Independent limiters |
4 |
|
|
3-band selective limiting |
Bass/mid/treble |
|
|
Band-specific time constants |
Yes |
|
|
Filter technology |
56-bit double precision |
|
|
Input |
AES/EBU 32kHz – 96kHz, 16/24 Bit |
|
|
FIR filter |
Yes |
|
|
Gain |
-80 dB - +12 dB |
|
|
Volume |
-80 dB - +12 dB |
|
|
EQ |
10-band parametric EQ, Gain, +/-12 dB, Frequency 10 -20 kHz, Q 0.1 – 100 |
|
|
Limiter Compressor |
Yes |
|
|
Noise Gate |
Yes |
|
|
Crossover filter |
Linkwitz-Riley 4th order, 24 dB/octave, high-pass 10 Hz -20 kHz, low-pass 10 Hz - 20 kHz |
|
|
Delay |
0 - 145 ms ( 0 - 50 m) |
|
|
User presets |
100 |
|
|
System latency |
0.95 ms |
|
