200W speaker, 8 "/ 1" CD, 8 Ohm, black finish varnish, 90 ° x 60 °
... learn more
PRICE ON REQUEST
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks
Please contact us

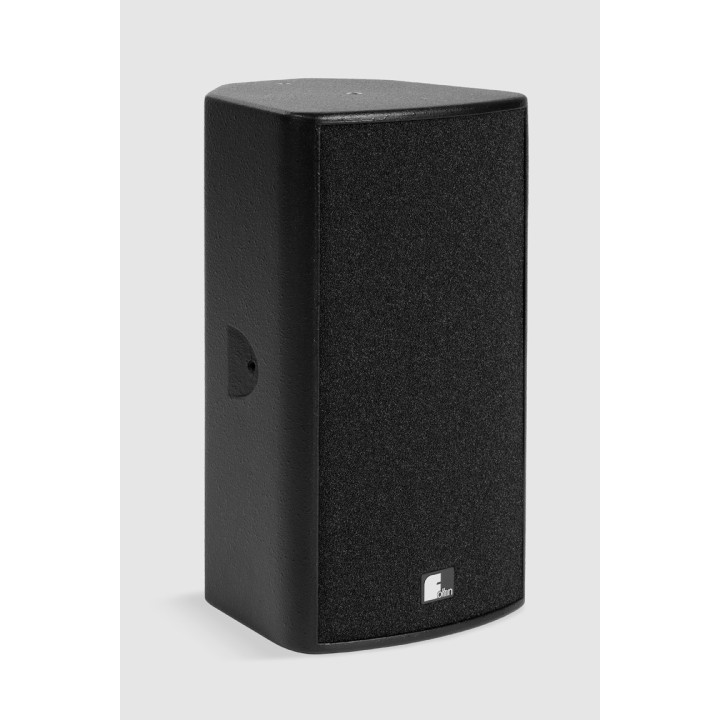

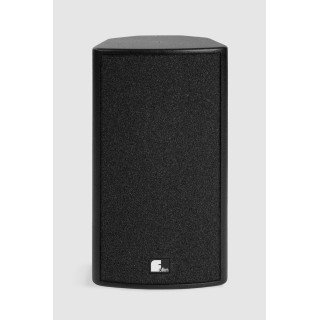

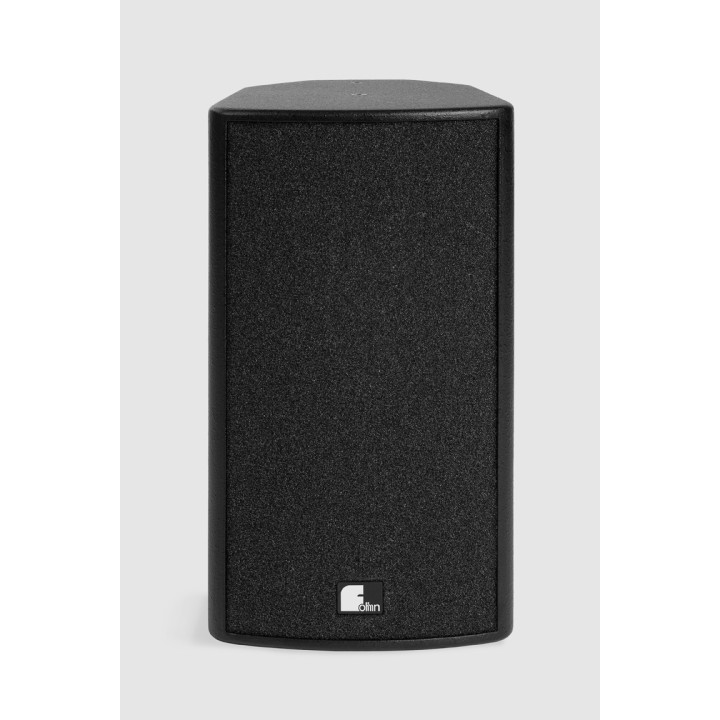

Fohhn loudspeaker, black, 90° x 60° The Fohhn® AT-10 is both a sound specialist and a flexibility expert. Efficient with compact dimensions, it can be used as a main sound system in venues with complex architecture to replace large loudspeakers. This versatile and well-designed 2-way loudspeaker system AT-10 features a powerful 8" cone loudspeaker (neodymium) and a high-quality 1" loudspeaker (neodymium). The large CD horn can be rotated through 90°. The loudspeakers are time-aligned and ensure optimised, phase-coherent sound dispersion. A filter with electronic high-frequency protection circuit is also integrated. The birch plywood cabinet is internally reinforced with steel supports. 5 M8 threaded inserts and 3 M6 threaded inserts ensure safe installation of the loudspeaker and bracket in accordance with all applicable regulations. The AT-10 can be combined with AS-22 or AS-31 subwoofers.

Applications
Conference and training rooms, sports and multipurpose halls, theatres, musicals, theme parks, nightclubs and similar venues.

Weather-resistant version (optional)
Wooden cabinet, special weather-resistant plastic coating, impregnated loudspeakers, unchanged design and dimensions.

High-performance 2-way passive loudspeaker

High-performance 2-way passive loudspeaker, equipped with an 8" neodymium mid-bass driver and a 1" neodymium tweeter on a 90° rotatable CD horn in a time-aligned loudspeaker configuration. The loudspeaker can temporarily handle 920 W and generates a maximum sound pressure level of 125 dB. Over a wide frequency range from 55 Hz to 20 kHz, the loudspeaker has a defined dispersion of 90° x 60° or 60° x 40° (h x v). High-strength birch plywood cabinet with rounded sides, reinforced by internal metal supports to meet safety standards. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated loudspeaker diaphragms. For protection of the chassis and loudspeaker electronics, the loudspeaker is equipped with an extremely sound-permeable and impact-resistant front grille made of powder-coated steel with moisture- and dust-resistant acoustic foam in the loudspeaker colour. Five M8 threaded inserts and three M6 threaded inserts in the bottom, rear and top are integrated for installation of lifting rings and system brackets. The loudspeaker system is optionally available with 100V technology in different power classes up to 120 W. Connections: 1x Neutrik NL4 Speakon and internal four-pole terminal block. Special brackets for mounting the system to ceilings, walls and structures are available. CAAD simulation data for ULYSSES and EASE are available.



Specifications



Electro-acoustic characteristics



Acoustic design

Passive loudspeaker, 2-way, bass reflex

Components

8" / 1" on rotatable CD horn, with auto-reset IPC[*]-HF protection, fully neodymium

Nominal power

230 W

Power handling (programme)

460 W

Power handling (peak)

920 W

Sensitivity

95 dB

Maximum SPL

125 dB

Frequency range

55 Hz – 20 kHz

Nominal dispersion (h x v)

90° x 60°

Nominal impedance

8 ohms

Features



Loudspeaker

Birch plywood cabinet, metal-reinforced

Protective grille

Impact-resistant metal, powder-coated finish

Mounting points

5x M8 threads and 3x M6 threads

Connections

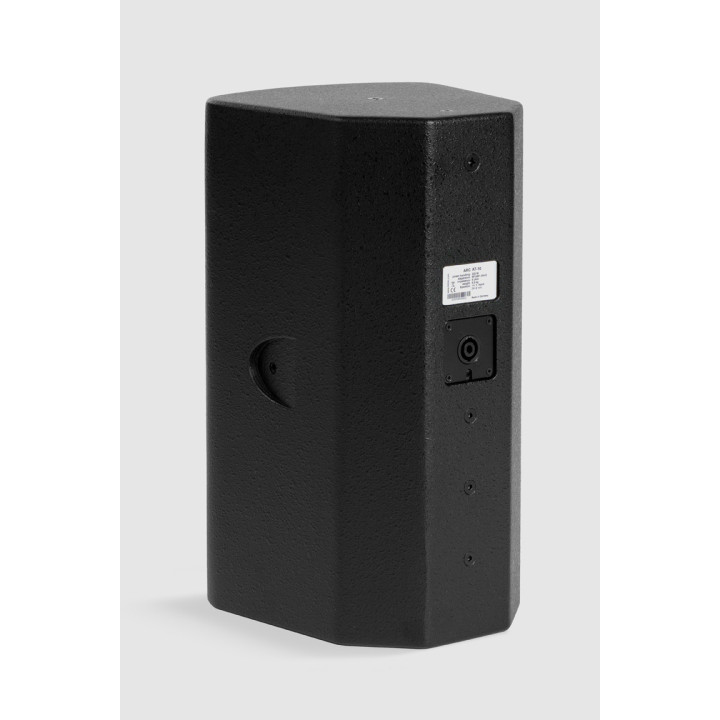

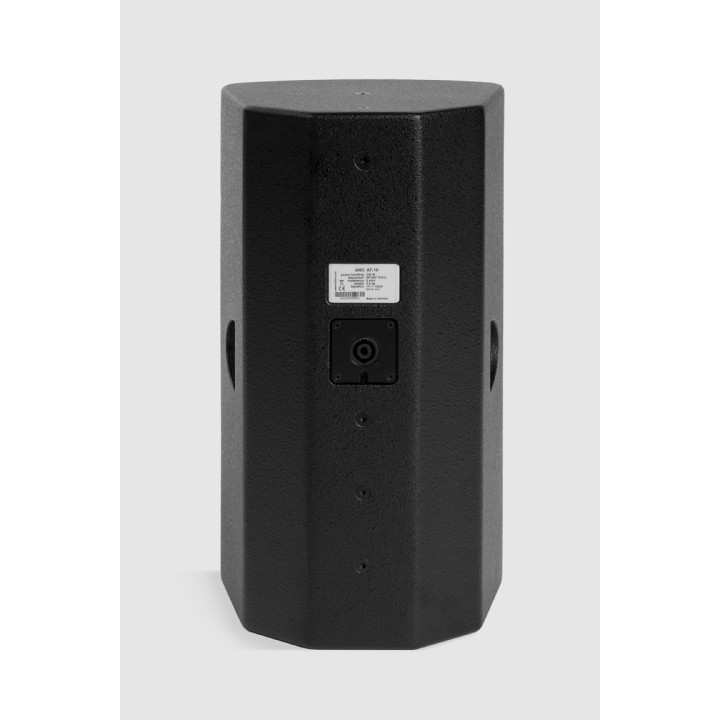

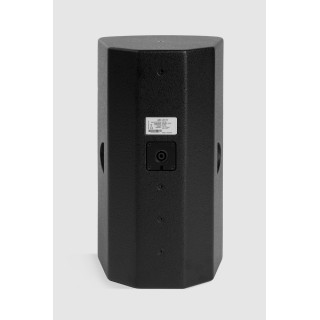

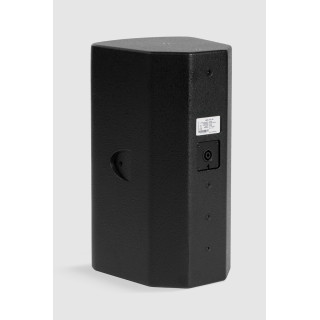

1x Neutrik NL4 Speakon and 4-pole connector inside

Standard colours

Black or white textured finish

Front panel design

Acoustic foam, in the same colour as the loudspeaker

Dimensions (W x H x D)

Approximately 244 x 440 x 250 mm

Weight

Approximately 9.5 kg

Optional features



Integrated 100V transformer

60/30/15 W or 120/60/30 W

Optional colours

All RAL colours

Weather protection

Scratch-resistant plastic coating, impregnated loudspeaker diaphragms
