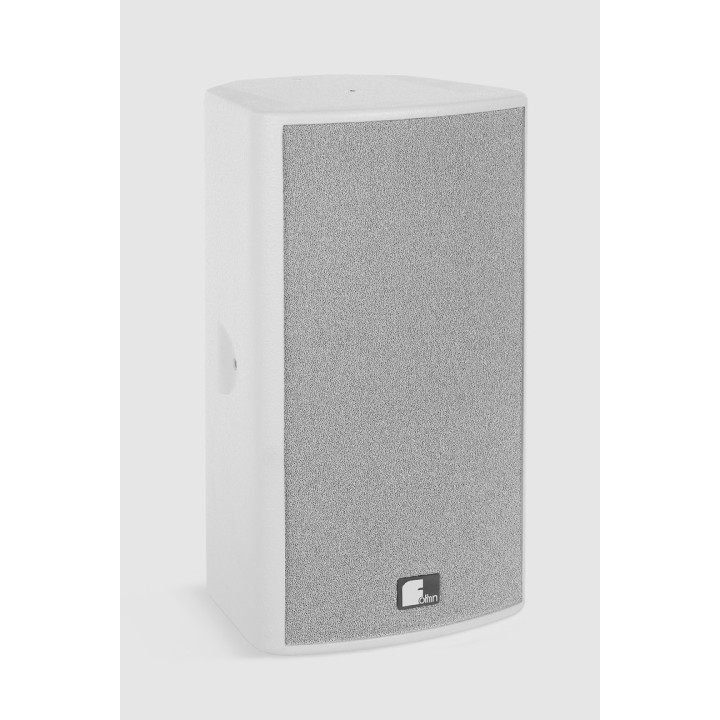

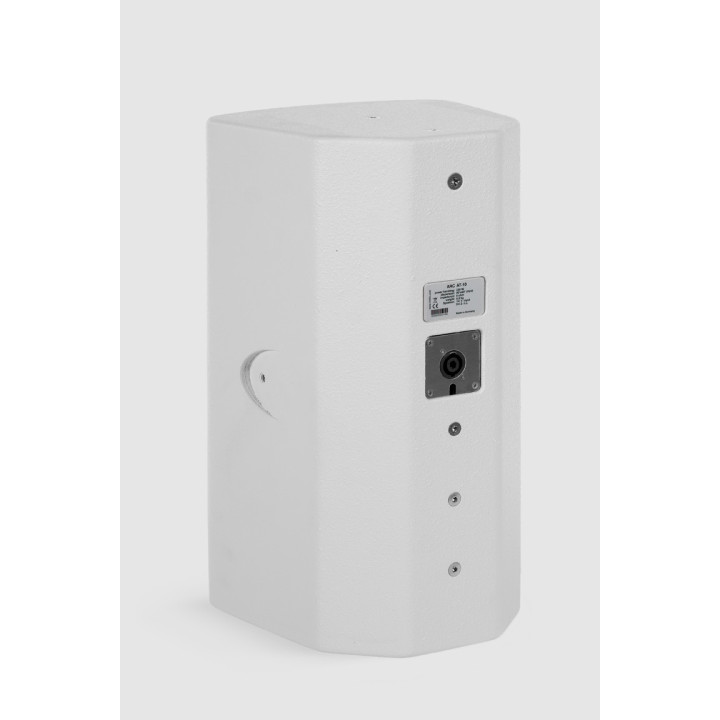

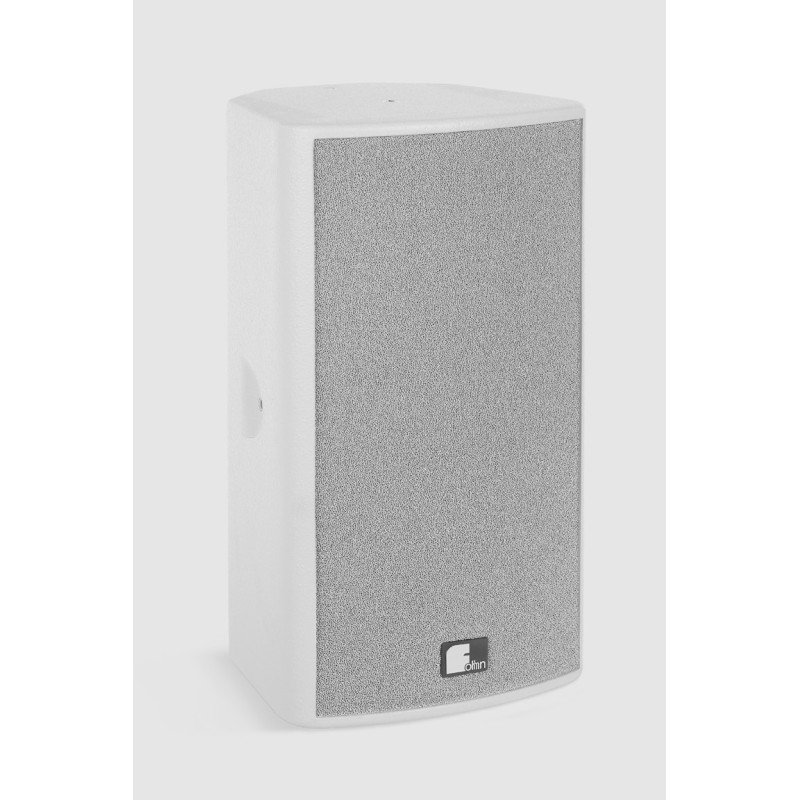

Fohhn - Speaker, white, 90 ° x 60 °

Fohhn AT-10 Top - Speaker, white, 90 ° x 60 °

1003547
Fohhn AT-10 Top - Speaker, white, 90 ° x 60 °
Fohhn AT-10 Top - Speaker, white, 90 ° x 60 °
Fohhn AT-10 Top - Speaker, white, 90 ° x 60 °
Fohhn AT-10 Top - Speaker, white, 90 ° x 60 °
200W speaker, 8 "/ 1" CD, 8 Ohm, white finish varnish, 90 ° x 60 °
... learn more
PRICE ON REQUEST
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks
Please contact us
Fohhn loudspeaker, white, 90° x 60° The Fohnn® AT-10 is both a sound specialist and a flexibility expert. Efficient with compact dimensions, it can be used as a main sound reinforcement system in architecturally complex venues to replace large speakers. This versatile and well-designed AT-10 two-way loudspeaker system comprises a powerful 8" cone transducer (neodymium) and a high-quality 1" driver (neodymium). The large CD horn can be rotated 90°. The transducers are time-aligned and ensure coherent sound dispersion with optimised phase response. An electronic high-frequency protection circuit is also integrated. The birch plywood enclosure is internally reinforced with steel brackets. 5x M8 threaded inserts and 3x M6 ensure safe installation of the loudspeaker and bracket in accordance with all applicable regulations. The AT-10 can be combined with AS-22 or AS-31 subwoofers.

Applications
Conference and training rooms, sports and multi-purpose halls, theatres, musicals, theme parks, nightclubs and similar venues.

Weather-resistant version (optional)
Wooden enclosure, special weather-resistant plastic coating, impregnated transducers, design and dimensions unchanged.

High-performance 2-way passive loudspeaker

High-performance 2-way passive loudspeaker, equipped with an 8" neodymium sub-mid driver and a 1" neodymium high-frequency driver on a 90° rotatable CD horn in a time-aligned loudspeaker configuration. The loudspeaker can operate temporarily at 920 W and generates a maximum sound pressure of 125 dB. Over a wide frequency range of 55 Hz to 20 kHz, the loudspeaker exhibits a defined dispersion of 90° x 60° or 60° x 40° (h x v). High-strength birch plywood enclosure with rounded sides, reinforced by internal metal brackets to comply with safety standards. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated loudspeaker membranes. For protection of the chassis and loudspeaker electronics, the enclosure is equipped with an extremely sound-permeable, bullet-impact resistant front grille made of powder-coated steel fitted with water-repellent and dust-resistant acoustic foam in the loudspeaker colour. Five M8 threaded inserts and three M6 threaded inserts are integrated into the bottom, rear and top for installation of lifting eyes and system brackets. The loudspeaker system is optionally available with 100V technology in different power classes up to 120 W. Connections: 1x Neutrik NL4 Speakon and four-pole internal terminal block. Specific brackets for mounting the system on ceilings, walls and structures are available. CAAD simulation data for ULYSSES and EASE are available.



Specifications



Electro-acoustic characteristics



Acoustic design

Passive loudspeaker, 2-way, bass reflex

Components

8" / 1" on rotatable CD horn, with auto-reset IPC[*]-HF protection, all neodymium

Rated power (nominal)

230 W

Rated power (programme)

460 W

Rated power (peak)

920 W

Sensitivity

95 dB

Maximum SPL

125 dB

Frequency range

55 Hz – 20 kHz

Nominal dispersion (h x v)

90° x 60°

Nominal impedance

8 ohms

Features



Loudspeaker

Birch plywood enclosure, metal-reinforced

Protective grille

Bullet-impact resistant metal, epoxy paint finish

Mounting points

5x M8 thread and 3x M6 thread

Connections

1x Neutrik NL4 Speakon and 4-pole internal connector

Standard colours

Black or white textured finish

Front panel design

Acoustic foam, same colour as the loudspeaker

Dimensions (W x H x D)

Approx. 244 x 440 x 250 mm

Weight

Approx. 9.5 kg

Optional features



Integrated 100V transformer

60/30/15 W or 120/60/30 W

Optional colours

All RAL colours

Weather protection

Scratch-resistant plastic coating, impregnated loudspeaker membranes
