Fohhn - 300W speaker, black, 90 ° x 60 °

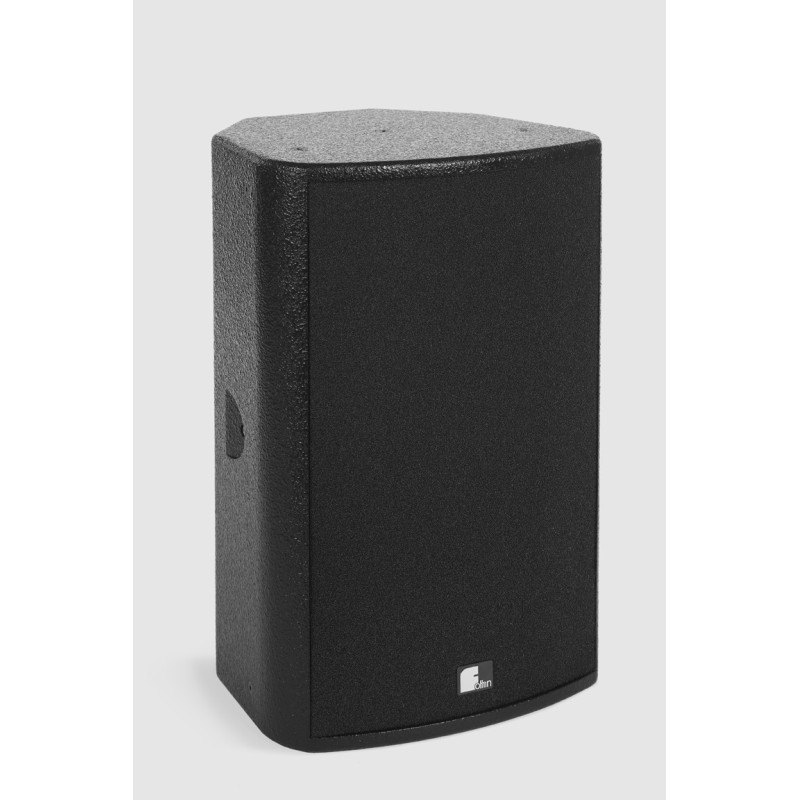

Fohhn AT-201 Top - 300W speaker, black, 90 ° x 60 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Fohhn® AT-201 is both a sound and flexibility specialist. Extremely efficient with compact dimensions, it can be used as the main PA system in venues with complex architecture to replace large loudspeakers. This versatile and well-designed 2-way speaker system comprises a powerful 10" cone driver and a high-quality 1" driver. The large CD horn can be rotated through 90°. The drivers are time-aligned and ensure optimised phase-coherent sound dispersion. A crossover with electronic high-frequency protection circuit is also integrated. The birch plywood enclosure is internally reinforced by steel brackets. 9x M8 and 2x M6 threaded inserts ensure safe installation of the enclosure and support in compliance with all applicable regulations. The AT-201 can be combined with the AS-22, AS-31 or AS-40 subwoofers.

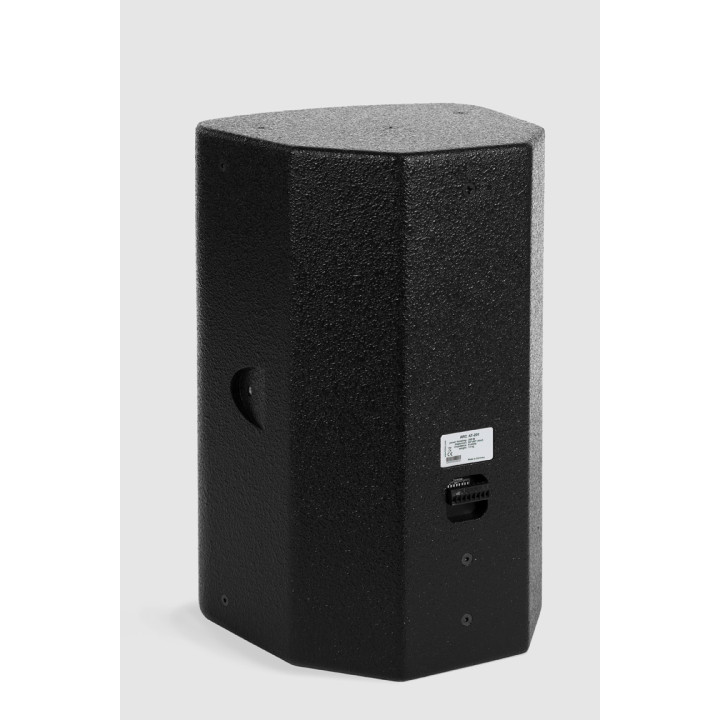

Connection panel
In low-impedance and 100V applications, the connection panel leaves nothing to be desired. An 8-way Phoenix terminal block with corresponding connector is available. If the terminal block is used, the complete connection panel can be covered so that only one cable is visible. All connections to the 100V transformer are routed via the terminal block and the two Speakon sockets.
Applications
Conference and training rooms, sports halls and multipurpose venues, theatres, musicals, theme parks, nightclubs, small stadiums and similar venues.
Weather-resistant version (optional)
Wooden enclosure, special weather-resistant plastic coating, impregnated drivers, unchanged design and dimensions.
High-performance 2-way passive loudspeaker
High-performance 2-way passive loudspeaker, equipped with a 10" mid-bass driver and a 1" HF driver on a 90° rotatable CD horn in a time-aligned enclosure configuration. The enclosure is capable of temporarily operating under 1200 W and generates a maximum sound pressure of 127 dB. Over a wide frequency range from 55 Hz to 20 kHz, the enclosure has a defined dispersion of 90° x 60° or 60° x 40° (h x v). High-strength birch plywood enclosure with rounded sides, reinforced by internal metal brackets to comply with safety directives. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated driver diaphragms. To protect the driver chassis and electronics, the enclosure is equipped with an extremely sound-permeable front grille, bullet-proof powder-coated steel and fitted with moisture- and dust-resistant acoustic foam in the enclosure colour. Nine M8 and two M6 threaded inserts are integrated into the bottom, rear and top for the installation of lifting rings and system brackets. The speaker system is optionally available with 100 V technology in different performance classes up to 240 W. Connections: 8-pin Phoenix terminal block. The connections are recessed and protected under a cover at the rear. All contacts exist in duplicate, for very easy and safe connection to the next enclosure. Specific brackets for assembling the system on ceilings, walls and cross beams are available. CAAD simulation data for EASE is available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Passive loudspeaker, 2-way, bass-reflex |
|
|
Components |
10" / 1" on rotatable CD horn, with HF IPC[*] protection with automatic reset |
|
|
Power rating (nominal) |
300 W |
|
|
Power rating (programme) |
600 W |
|
|
Power rating (peak) |
1200 W |
|
|
Sensitivity |
97 dB |
|
|
Maximum SPL |
127 dB |
|
|
Frequency range |
55 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
90° x 60° |
|
|
Nominal impedance |
8 ohms |
|
|
Features |
|
|
|
Enclosure |
Birch plywood enclosure, metal-reinforced |
|
|
Protective grille |
Bullet-proof metal, powder-coated finish |
|
|
Mounting points |
9x M8 threads and 2x M6 threads |
|
|
Connections |
8-pole Phoenix connector |
|
|
Standard colours |
Black or white textured finish |
|
|
Front design |
Acoustic foam in enclosure colour |
|
|
Dimensions (W x H x D) |
Approx. 330 x 510 x 300 mm |
|
|
Weight |
Approx. 14.5 kg |
|
|
Optional features |
|
|
|
Integrated 100 V transformer |
60/30/15 W or 120/60/30 W or 240/120/60 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated driver diaphragms |
