Fohhn - 300W speaker, white, 90 ° x 60 °

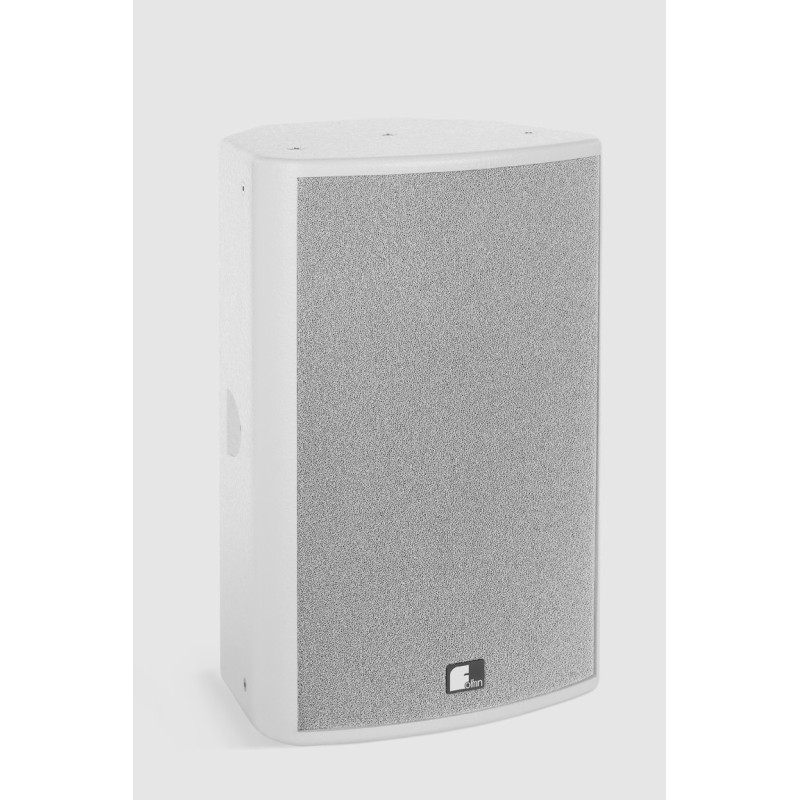

Fohhn AT-201 Top - 300W speaker, white, 90 ° x 60 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Fohhn® AT-201 is both a sound specialist and a flexibility expert. Extremely efficient with compact dimensions, it can be used as a main sound system in venues with complex architecture to replace large cabinets. This versatile and well-designed two-way loudspeaker system features a powerful 10" woofer and a high-quality 1" driver. The large CD horn can be rotated through 90°. The loudspeakers are time-aligned and ensure phase-optimised sound dispersion. A filter with electronic high-frequency protection circuit is also integrated. The birch multiplex wood cabinet is internally reinforced with steel supports. 9x M8 threaded inserts and 2x M6 ensure safe installation of loudspeakers and brackets in accordance with all applicable regulations. The AT-201 can be combined with AS-22, AS-31 or AS-40 subwoofers.

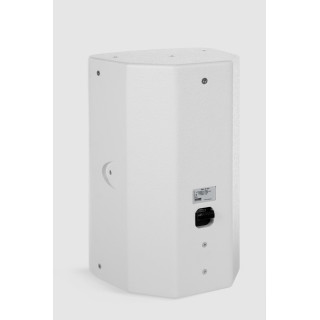

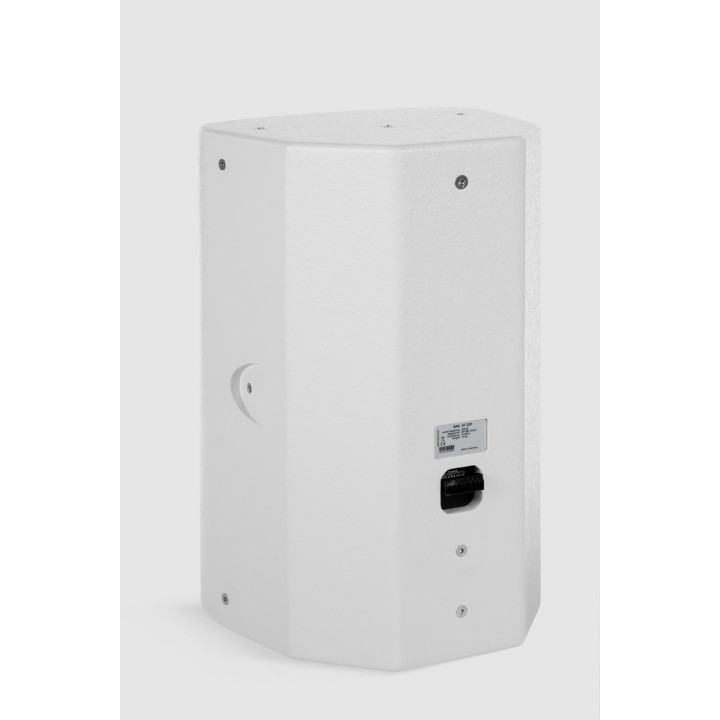

Connection panel
For low-impedance and 100V applications, the connection panel leaves nothing to be desired. An 8-way Phoenix terminal block with corresponding connector is available. If the terminal block is used, the entire connection panel can be covered so that only one cable is visible. All connections to the 100V transformer pass through the terminal block and the two Speakon sockets.
Applications
Conference and training rooms, sports and multipurpose halls, theatres, musicals, theme parks, nightclubs, small stadiums and similar venues.
Weather-resistant version (optional)
Wooden cabinet, special weather-resistant plastic coating, impregnated loudspeakers, unchanged design and dimensions.
High-performance 2-way passive loudspeaker
High-performance 2-way passive loudspeaker, equipped with a 10" sub-midrange driver and a 1" tweeter on a 90° rotatable CD horn in a time-aligned configuration. The loudspeaker can temporarily operate at 1200 W and generates a maximum sound pressure of 127 dB. Over a wide frequency range from 55 Hz to 20 kHz, the loudspeaker exhibits a defined dispersion of 90° x 60° or 60° x 40° (h x v). High-strength birch multiplex plywood cabinet with rounded sides, reinforced by internal metal supports to comply with safety directives. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated loudspeaker diaphragms. For protection of the chassis and electronics, the loudspeaker is equipped with an impact-resistant, extremely sound-permeable front grille made of powder-coated steel and fitted with water-repellent and dust-proof acoustic foam in the loudspeaker colour. Nine M8 threaded inserts and two M6 are integrated in the base, rear and top for mounting rings and brackets. The loudspeaker system is optionally available with 100V technology in different power classes up to 240W. Connections: 8-pole Phoenix terminal block. The connections are recessed and protected under a cover on the rear. All contacts are doubled to facilitate connection to the next loudspeaker. Specific brackets are available for mounting the system to ceilings, walls and crossbeams. CAAD simulation data for EASE are available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Passive loudspeaker, 2-way, bass reflex |
|
|
Components |
10" / 1" on rotatable CD horn, with auto-reset IPC[*]-HF protection |
|
|
Nominal power |
300 W |
|
|
Nominal power (programme) |
600 W |
|
|
Nominal power (peak) |
1200 W |
|
|
Sensitivity |
97 dB |
|
|
Maximum SPL |
127 dB |
|
|
Frequency range |
55 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
90° x 60° |
|
|
Nominal impedance |
8 ohms |
|
|
Features |
|
|
|
Loudspeaker |
Birch plywood cabinet, metal-reinforced |
|
|
Protective grille |
Impact-resistant metal, epoxy paint finish |
|
|
Mounting points |
9x M8 threads and 2x M6 |
|
|
Connections |
8-pole Phoenix connector |
|
|
Standard colours |
Black or white textured finish |
|
|
Front panel design |
Acoustic foam matched to the loudspeaker colour |
|
|
Dimensions (W x H x D) |
Approximately 330 x 510 x 300 mm |
|
|
Weight |
Approximately 14.5 kg |
|
|
Optional features |
|
|
|
Integrated 100V transformer |
60/30/15 W or 120/60/30 W or 240/120/60 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated loudspeaker diaphragms |
