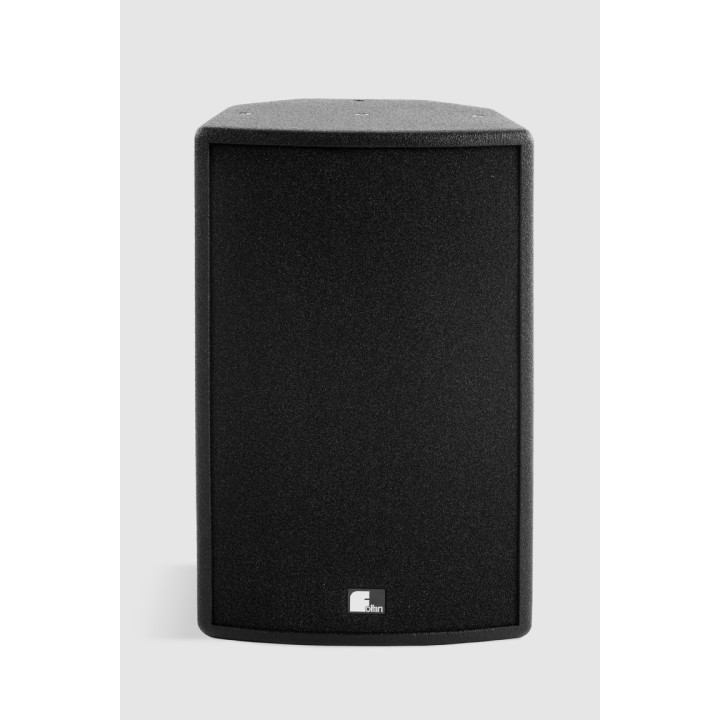

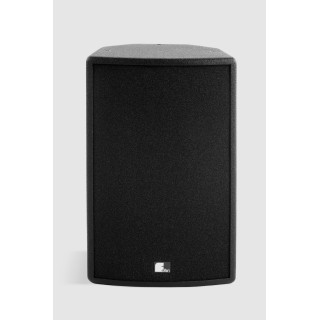

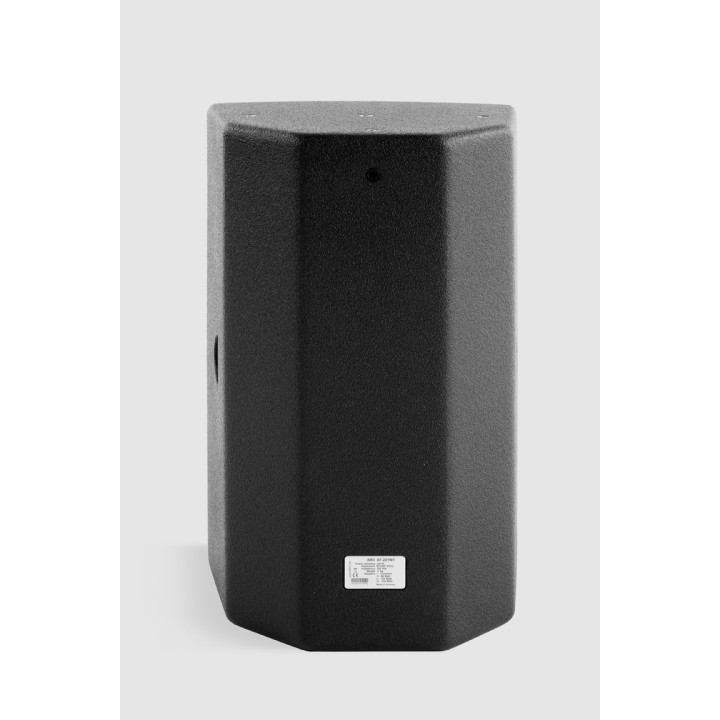

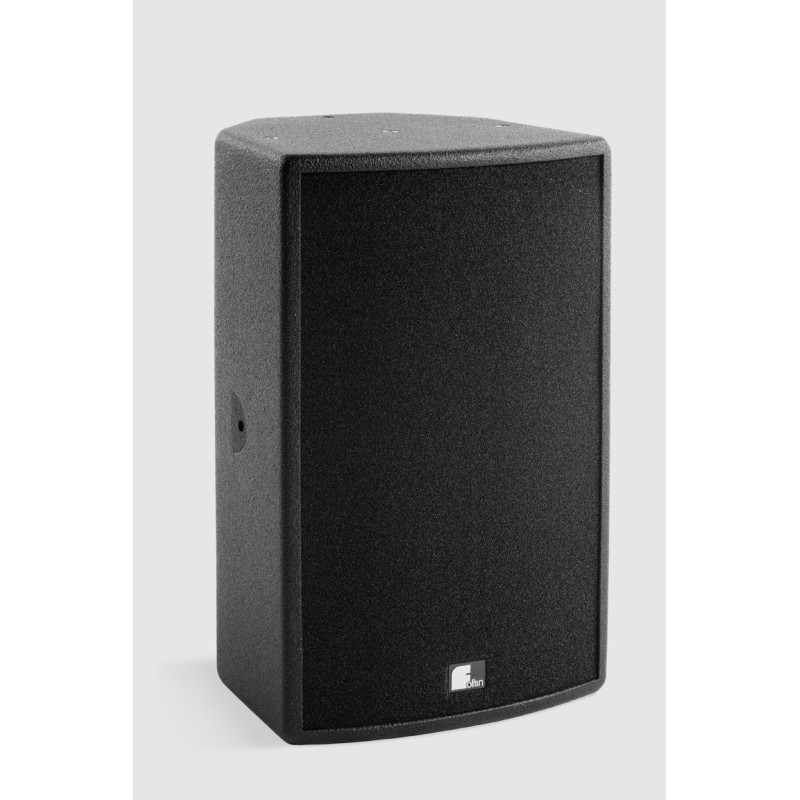

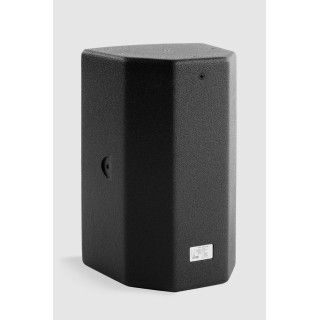

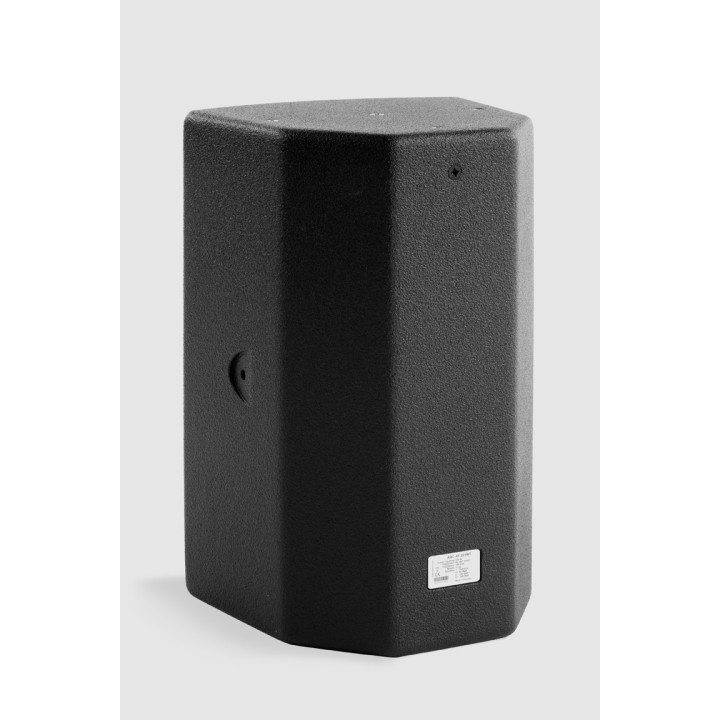

Fohhn AT-221w Top - 300W speaker, black, 90 ° x 60 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The AT-221w is a weatherproof loudspeaker system specially designed for outdoor applications. Its compact dimensions, excellent output power and exceptional speech intelligibility are impressive. The robust weatherproof VSM cabinet is equipped with high-performance impregnated 10"/1" CD drivers. The loudspeakers are time-aligned and well protected by a robust metal protective grille at the front. A special sound-transparent foam filter also provides effective protection against water and dust. 2 speakon sockets are installed at the bottom of the cabinet. A precision passive filter with electronic high-frequency protection circuit is also integrated. The interior of the cabinet is fully reinforced by steel supports and equipped with 5 M8 threaded inserts for secure installation.
Connectors
2 Neutrik NL4 Speakon connectors in the lower panel or waterproof cable gland with 3m cable.
Applications
Sound reinforcement in open or humid environments such as sports arenas, stadiums, ski chalets, etc.
High-performance weatherproof two-way passive loudspeaker
High-performance weatherproof two-way passive loudspeaker equipped with a 10" mid-bass driver and a 1" tweeter motor on a 90° rotatable CD horn in a time-aligned loudspeaker configuration. The loudspeaker can temporarily operate at 1200 W and generates a maximum sound pressure of 129 dB. Over a wide frequency range from 70 Hz to 20 kHz, the loudspeaker has a defined dispersion of 90° x 60° or 60° x 40° (h x v). High-strength weatherproof VSM cabinet, reinforced by internal steel supports to comply with safety directives. Weatherproof polyurethane coating with impregnated loudspeaker diaphragms, available in black. Optionally available in all RAL colours. For protection of the chassis and loudspeaker electronics, the cabinet is equipped with a ball-impact-resistant front grille, extremely sound-permeable, made of powder-coated steel and fitted with waterproof and dust-proof acoustic foam matching the cabinet colour. Five M8 threaded applications on the floor, rear and top face are integrated for the admission of eyebolts and system brackets. The loudspeaker system is optionally available with 100V technology in different performance classes up to 240 W. Connections: 2 Neutrik NL4 Speakon connectors in the lower panel or waterproof cable gland with 3m cable. All contacts are duplicated for very easy and safe connection to the next loudspeaker. Specific brackets for mounting the system on ceilings, walls and structures are available. CAAD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electroacoustic specifications |
|
|
|
Acoustic design |
Passive loudspeaker, 2-way, bass reflex, weatherproof |
|
|
Components |
10" / 1" on rotatable CD horn, with auto-resetting IPC[*]-HF protection |
|
|
Nominal power |
300 W |
|
|
Programme power |
600 W |
|
|
Maximum power |
1200 W |
|
|
Sensitivity |
101 dB |
|
|
Maximum SPL |
131 dB |
|
|
Frequency range |
70 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
90° x 60° |
|
|
Nominal impedance |
8 ohms |
|
|
Features |
|
|
|
Loudspeaker |
Weatherproof VSM cabinet, reinforced with steel braces |
|
|
Grille protection |
Ball-impact-resistant steel, powder-coated finish |
|
|
Mounting points |
5x M8 thread |
|
|
Connections |
2 Neutrik NL4 Speakon connectors in the lower panel waterproof cable gland with 3m cable |
|
|
Standard colours |
Scratch-resistant polyurethane coating, black |
|
|
Front design |
Acoustic foam matching the loudspeaker colour |
|
|
Weather protection |
Polyurethane coating with UV-resistant finish and waterproof impregnation of the loudspeaker cone |
|
|
Dimensions (W x H x D) |
Approx. 320 x 510 x 290 mm |
|
|
Optional features |
|
|
|
Integrated 100V transformer |
60/30/15 W or 120/60/30 W or 240/120/60 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated loudspeaker diaphragms |
