Fohhn - 500W Speaker, black, 90 ° x 60 °
Fohhn AT-35 Top - 500W Speaker, black, 90 ° x 60 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

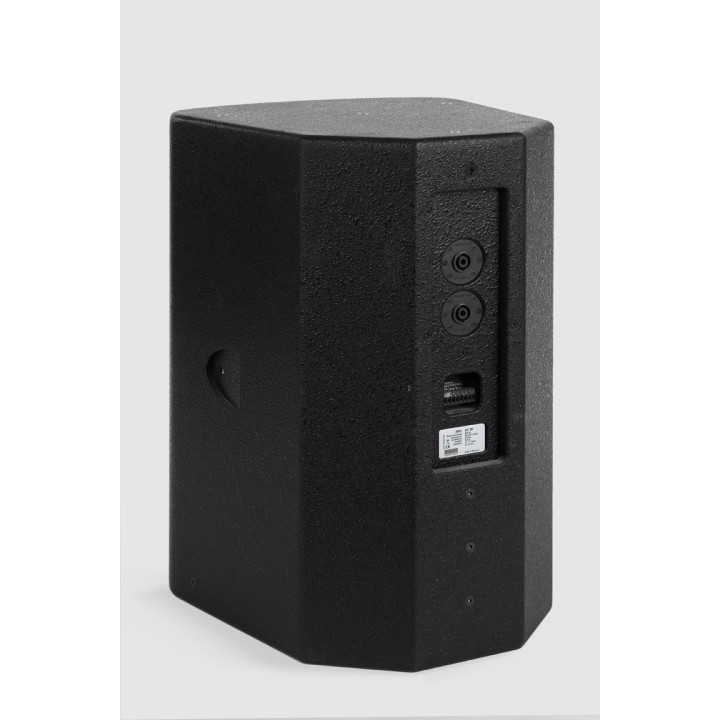

Connection panel
For low-impedance and 100V applications, the connection panel leaves nothing to be desired. 2 Speakon sockets and an 8-way Phoenix terminal block with corresponding connector are available. If the terminal block is used, the entire connection panel can be covered so that only one cable is visible. All connections to the 100V transformer are routed via the terminal block and the two Speakon sockets.
Applications
Sports halls and arenas, multi-purpose halls, theatres, musicals, theme parks, nightclubs, clubs and similar venues.
Weatherproof version (optional)
Wooden cabinet, special weatherproof plastic coating, impregnated drivers, design and dimensions unchanged.

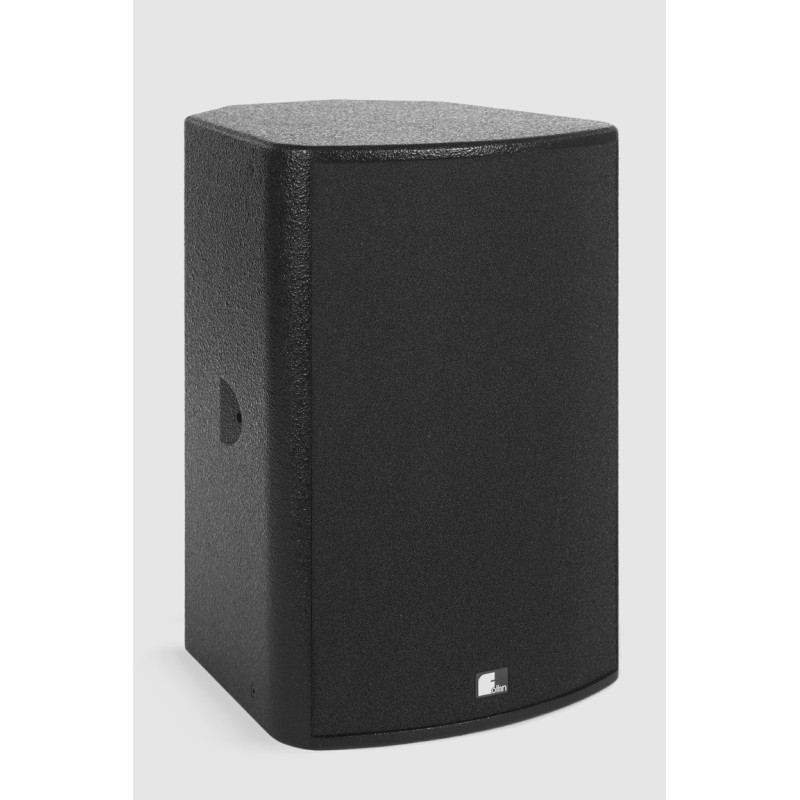

High-performance 2-way passive speaker
High-performance 2-way passive speaker, equipped with a 12" neodymium sub-medium driver and a 1" neodymium high-frequency motor on a 90° rotatable CD horn in time-aligned configuration. The speaker can operate temporarily at 2000 W and generate a maximum sound pressure of 130 dB. Over a wide frequency band from 45 Hz to 20 kHz, the speaker presents a defined dispersion of 90° x 60° or 60° x 40° (h x v). Birch plywood cabinet with rounded sides, reinforced by internal metal supports to meet safety standards. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weatherproof polyurethane coating with impregnated speaker membranes. For protection of drivers and electronics, the cabinet is equipped with a highly sound-permeable, shock-resistant front grille in powder-coated steel and fitted with water-repellent and dust-proof acoustic foam in the speaker's colour. Nine M8 and three M6 mounting points are integrated in the base, rear and top for installation of rings and system brackets. The speaker system is optionally available with 100V technology in different power classes up to 240 W. Connections: 2x Neutrik NL4 Speakon and 8-pin plug-in Phoenix terminal block. Connections are recessed and protected under a cover at the rear. All contacts are doubled, for very easy and secure connection to the next speaker. Specific brackets for mounting the system to ceilings, walls and structures are available. CAAD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Passive speaker, 2-way, bass reflex |
|
|
Components |
12" / 1" on rotatable CD horn, with automatic reset IPC[*]-HF protection, fully neodymium |
|
|
Nominal power |
500 W |
|
|
Programme power |
1000 W |
|
|
Peak power |
2000 W |
|
|
Sensitivity |
99 dB |
|
|
Maximum SPL |
130 dB |
|
|
Frequency band |
45 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
90° x 60° or 60° x 40° |
|
|
Nominal impedance |
8 ohms |
|
|
Characteristics |
|
|
|
Driver |
Birch plywood cabinet, metal reinforced |
|
|
Protection grille |
Shock-resistant metal, powder-coated finish |
|
|
Mounting points |
9x M8 and 3x M6 threaded |
|
|
Connections |
2x Neutrik NL4 Speakon and 8-pole Phoenix connector |
|
|
Standard colours |
Black or white textured finish |
|
|
Front design |
Acoustic foam, same colour as speaker |
|
|
Dimensions (W x H x D) |
Approximately 380 x 585 x 410 mm |
|
|
Weight |
Approximately 20 kg |
|
|
Optional characteristics |
|
|
|
Integrated 100V transformer |
60/30/15 W or 120/60/30 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated speaker membranes |
