Fohhn - 500W Speaker, white, 90 ° x 60 °

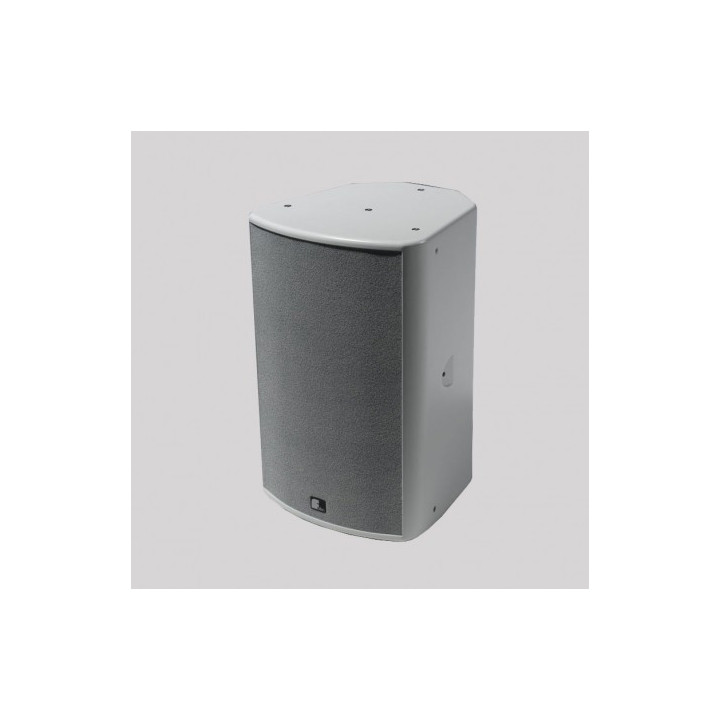

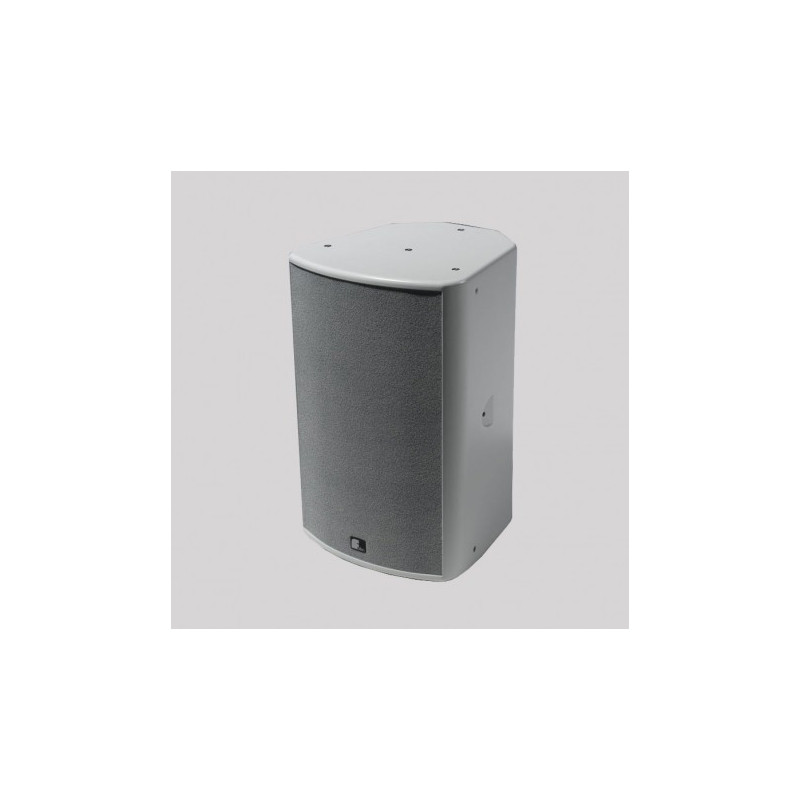

Fohhn AT-35 Top - 500W Speaker, white, 90 ° x 60 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Connection Panel
In low-impedance and 100V applications, the connection panel leaves nothing to be desired. 2 Speakon sockets and an 8-way Phoenix terminal block with corresponding connector are available. If the terminal block is used, the entire connection panel can be covered so that only one cable is visible. All connections to the 100V transformer are routed via the terminal block and the two Speakon sockets.
Applications
Sports halls and arenas, multi-purpose halls, theatres, musicals, theme parks, nightclubs, clubs and similar venues.
Weather-resistant version (optional)
Wooden cabinet, special weather-resistant plastic coating, impregnated loudspeakers, unchanged design and dimensions.
High-performance 2-way passive loudspeaker
High-performance 2-way passive loudspeaker, equipped with a 12" neodymium mid-bass driver and a 1" neodymium tweeter on a 90° rotatable CD horn in a time-aligned loudspeaker configuration. The loudspeaker is capable of operating temporarily at 2000 W and generates a maximum sound pressure of 130 dB. Over a wide frequency range of 45 Hz to 20 kHz, the loudspeaker has a defined dispersion of 90° x 60° or 60° x 40° (h x v). High-strength birch plywood cabinet with rounded sides, reinforced with internal metal supports to comply with safety regulations. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated loudspeaker membranes. For protection of loudspeaker chassis and electronics, the cabinet is equipped with an extremely sound-permeable, ball impact-resistant, powder-coated steel front grille equipped with water-repellent and dust-proof acoustic foam in the cabinet colour. Nine M8 threaded inserts and three M6 threaded inserts are integrated in the floor, rear and top for installation of lifting eyes and system brackets. The loudspeaker system is optionally available with 100V technology in various performance classes up to 240 W. Connections: 2x Neutrik NL4 Speakon and 8-pin Phoenix terminal block. The connections are recessed and protected under a cover at the rear. All contacts exist in duplicate, for very easy and safe connection to the next loudspeaker. Specific brackets for system assembly on ceilings, walls and structures are available. CAAD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Passive loudspeaker, 2-way, bass reflex |
|
|
Components |
12" / 1" on rotatable CD horn, with auto-reset IPC[*]-HF protection, fully neodymium |
|
|
Rated power (nominal) |
500 W |
|
|
Rated power (programme) |
1000 W |
|
|
Rated power (peak) |
2000 W |
|
|
Sensitivity |
99 dB |
|
|
Maximum SPL |
130 dB |
|
|
Frequency range |
45 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
90° x 60° or 60° x 40° |
|
|
Nominal impedance |
8 ohms |
|
|
Features |
|
|
|
Loudspeaker |
Birch plywood cabinet, metal-reinforced |
|
|
Protective grille |
Ball impact-resistant metal, powder-coated finish |
|
|
Mounting points |
9x M8 and 3x M6 threaded |
|
|
Connections |
2x Neutrik NL4 Speakon and 8-pole Phoenix connector |
|
|
Standard colours |
Black or white textured finish |
|
|
Front design |
Acoustic foam, same colour as the loudspeaker |
|
|
Dimensions (W x H x D) |
Approximately 380 x 585 x 410 mm |
|
|
Weight |
Approximately 20 kg |
|
|
Optional features |
|
|
|
Integrated 100 V transformer |
60/30/15 W or 120/60/30 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated loudspeaker membranes |
