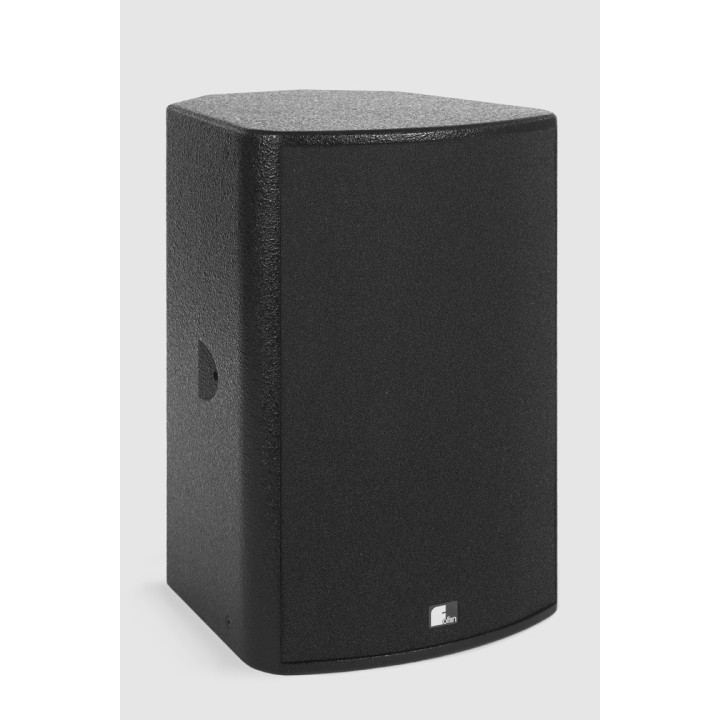

Fohhn AT-40 Top - 500W Speaker, black, 80 ° x 50 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Fohhn® AT-40 is an extremely powerful and high-performance speaker system in a relatively compact housing. It combines efficiency, speech intelligibility, sound quality and design at the highest level. The AT-40 is equipped with state-of-the-art time-aligned 12"/1.4" Neodymium drivers and is therefore extremely lightweight. It can be equipped with a rotatable CD horn 80°x50° or 60°x50° (HxV), depending on the application. A precision passive filter with electronic high-frequency protection circuit is also integrated. The birch multiplex wooden cabinet is reinforced with steel supports and equipped with 9x M8 and 3x M6 threaded inserts for secure installation in compliance with all current regulations. The AT-40 produces perfect sound when combined with AS-31 or AS-40 subwoofers and functions as a full-range or mid-high system.

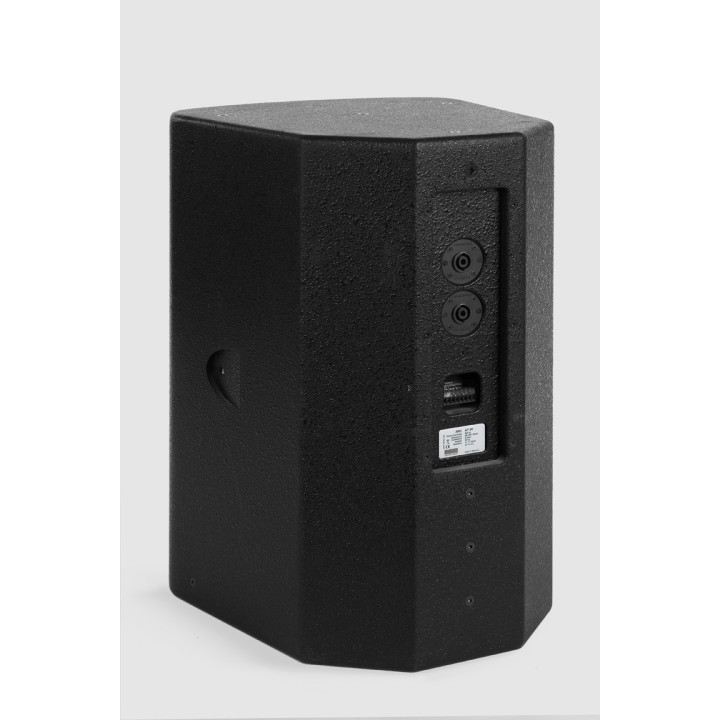

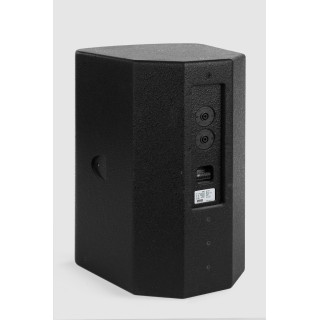

Connection panel
For low impedance and 100V applications, the connection panel leaves nothing to be desired. 2 Speakon sockets and an 8-way Phoenix terminal block with corresponding connector are available. If the terminal block is used, the entire connection panel can be covered so that only one cable is visible. All connections to the 100V transformer are routed via the terminal block and the two Speakon sockets.
Applications
Sports halls, multipurpose rooms, stadiums, theatres, musical performances, amusement parks, nightclubs and similar venues.
Weatherproof version (optional)
Wooden cabinet, special waterproof plastic coating, impregnated loudspeakers, design and dimensions unchanged.
High-performance 2-way passive speaker
High-performance 2-way passive speaker, equipped with a 12" neodymium sub-midrange driver and a 1.4" neodymium tweeter on a 90° rotatable CD horn in time-aligned configuration. The speaker can temporarily handle 2000 W and generates a maximum sound pressure of 131 dB. Over a wide frequency range from 45 Hz to 20 kHz, the speaker has a defined dispersion of 80° x 50° or 60° x 50° (h x v). High-strength birch multiplex cabinet with rounded sides, reinforced by internal metal supports to comply with safety directives. Durable textured finish, available in black or white. Optionally available in all RAL colours or with waterproof polyurethane coating with impregnated speaker membranes. To protect the speaker chassis and electronics, the cabinet is equipped with an impact-resistant, extremely sound-permeable front grille made of powder-coated steel and fitted with water-repellent and dust-resistant acoustic foam in the speaker's colour. Nine M8 threaded inserts and three M6 inserts are integrated in the floor, rear and top for installing lifting rings and system brackets. The speaker system is optionally available with 100V technology in different power classes up to 240 W. Connections: 2x Neutrik NL4 Speakon and 8-pin Phoenix terminal block. The connections are recessed and protected under a cover at the rear. All contacts are doubled, for simple and secure connection to the next speaker. Specific brackets for mounting the system to ceilings, walls and structures are available. CADD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electro-acoustic specifications |
|
|
|
Acoustic design |
Passive speaker, 2-way, bass reflex |
|
|
Components |
12" / 1.4" on rotatable CD horn, with auto-reset IPC[*]-HF protection, all neodymium |
|
|
Power handling (nominal) |
500 W |
|
|
Nominal power (programme) |
1000 W |
|
|
Power handling (peak) |
2000 W |
|
|
Sensitivity |
100 dB |
|
|
Maximum SPL |
131 dB |
|
|
Frequency range |
45 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
80° x 50° or 60° x 50° |
|
|
Nominal impedance |
8 ohms |
|
|
Characteristics |
|
|
|
Loudspeaker |
Birch plywood cabinet, metal reinforced |
|
|
Protective grille |
Impact-resistant metal, powder-coated finish |
|
|
Mounting points |
9x M8 thread and 3x M6 thread |
|
|
Connections |
2x Neutrik NL4 Speakon and 8-pole Phoenix connector |
|
|
Standard colours |
Black or white lacquered finish |
|
|
Front design |
Acoustic foam, same colour as the speaker |
|
|
Dimensions (W x H x D) |
Approximately 380 x 585 x 410 mm |
|
|
Weight |
Approximately 24 kg |
|
|
Optional features |
|
|
|
Integrated 100V transformer |
120/60/30 W or 240/120/60 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated speaker membranes |
