Fohhn - 500W Speaker, white, 80 ° x 50 °

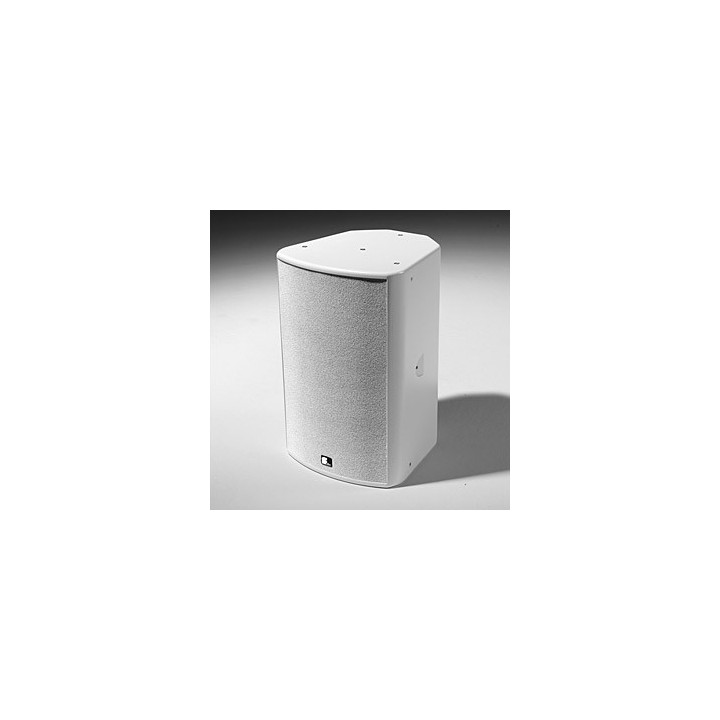

Fohhn AT-40 Top - 500W Speaker, white, 80 ° x 50 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Fohhn® AT-40 is an extremely powerful and high-capacity speaker system in a relatively compact housing. It combines efficiency, speech intelligibility, sound quality and design at the highest level. The AT-40 is equipped with state-of-the-art time-aligned 12"/1.4" Neodymium drivers and is therefore extremely lightweight. It can be equipped with either an 80°x50° or 60°x50° (HxV) rotatable CD horn, depending on the application. A precision passive filter with electronic high-frequency protection circuit is also integrated. The multiplex birch wood housing is reinforced with steel supports and equipped with 9x M8 and 3x M6 threaded inserts for safe installation in compliance with all applicable regulations. The AT-40 produces perfect sound when combined with the AS-31 or AS-40 subwoofers and functions as a full-range or mid-high system.
Connection panel
For low-impedance and 100V applications, the connection panel meets all requirements. 2 Speakon sockets and an 8-way Phoenix terminal block with corresponding connector are available. If the terminal block is used, the complete connection panel can be covered so that only one cable is visible. All connections to the 100V transformer are routed via the terminal block and the two Speakon sockets.
Applications
Sports arenas, multifunctional halls, stadiums, theatres, musicals, theme parks, nightclubs and similar venues.
Weather-resistant version (optional)
Wooden housing, special weather-resistant plastic coating, impregnated speakers, unchanged design and dimensions.
High-performance 2-way passive speaker
High-performance 2-way passive speaker, equipped with a 12" neodymium sub-midrange driver and a 1.4" neodymium tweeter on a 90° rotatable CD horn in a time-aligned configuration. The speaker can temporarily operate at 2000 W and generates a maximum sound pressure of 131 dB. Over a wide frequency range from 45 Hz to 20 kHz, the speaker has a defined dispersion of 80° x 50° or 60° x 50° (h x v). High-strength birch multiplex plywood housing with rounded sides, reinforced with internal metal supports to comply with safety directives. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated speaker membranes. For protection of the speaker and electronics, the speaker is equipped with an impact-resistant front grille, extremely sound-permeable, made of powder-coated steel and fitted with dust-resistant and waterproof acoustic foam in the speaker colour. Nine M8 threads and three M6 threads are integrated in the bottom, rear and top faces for mounting lifting rings and system brackets. The speaker system is optionally available with 100V technology in different power classes up to 240 W. Connections: 2x Neutrik NL4 Speakon and 8-pin plug-in Phoenix terminal block. The connections are recessed and protected under a cover at the rear. All contacts exist in duplicate, for very easy and safe connection to the next speaker. Specific brackets for mounting the system to ceilings, walls and structures are available. CAAD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Passive speaker, 2-way, bass-reflex |
|
|
Components |
12" / 1.4" on rotatable CD horn, with auto-reset IPC[*]-HF protection, fully neodymium |
|
|
Nominal power (rated) |
500 W |
|
|
Nominal power (programme) |
1000 W |
|
|
Nominal power (peak) |
2000 W |
|
|
Sensitivity |
100 dB |
|
|
Maximum SPL |
131 dB |
|
|
Frequency response |
45 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
80° x 50° or 60° x 50° |
|
|
Nominal impedance |
8 ohms |
|
|
Characteristics |
|
|
|
Speaker |
Metal-reinforced birch plywood housing |
|
|
Protective grille |
Ball impact-resistant metal, powder-coated finish |
|
|
Mounting points |
9x M8 thread and 3x M6 |
|
|
Connections |
2x Neutrik NL4 Speakon and 8-pole Phoenix connector |
|
|
Standard colours |
Black or white lacquered finish |
|
|
Front design |
Acoustic foam, same colour as the speaker |
|
|
Dimensions (W x H x D) |
Approximately 380 x 585 x 410 mm |
|
|
Weight |
Approximately 24 kg |
|
|
Optional features |
|
|
|
Integrated 100V transformer |
120/60/30 W or 240/120/60 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated speaker membranes |
