Fohhn - 500W Speaker, black, 80 ° x 50 °
Fohhn AT-50 Top - 500W Speaker, black, 80 ° x 50 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

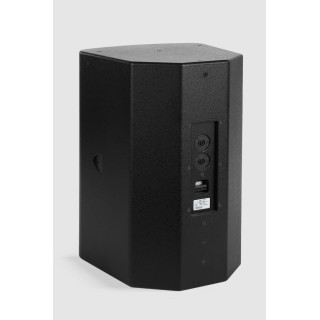

Connection panel
For low impedance and 100V applications, the connection panel meets all requirements. 2 Speakon sockets and an 8-way Phoenix terminal block with corresponding connector are available. If the terminal block is used, the entire connection panel can be covered so that only one cable is visible. All connections to the 100V transformer are routed via the terminal block and the two Speakon sockets.
Applications
Large sports and multi-purpose halls, stadiums, musicals, theatres, amusement parks, nightclubs and similar applications.
Weather-resistant version (optional)
Wooden cabinet, special weather-resistant plastic coating, impregnated speakers, unchanged design and dimensions.

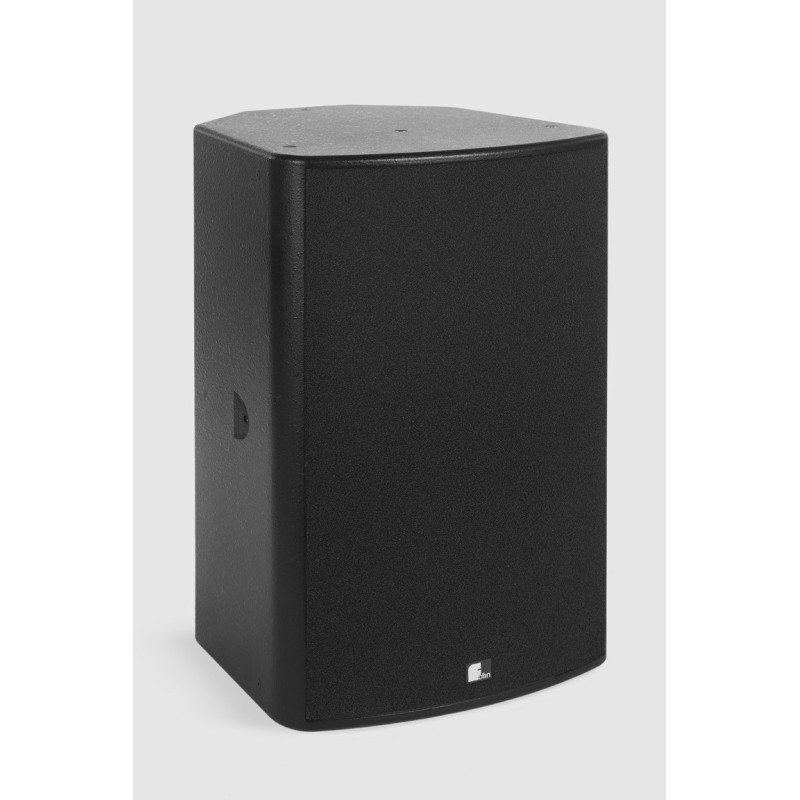

High-performance 2-way passive loudspeaker
High-performance 2-way passive loudspeaker, equipped with a 15" neodymium mid-bass driver and a 1.4" neodymium tweeter on a rotatable 90° CD horn in time-aligned configuration. The loudspeaker can temporarily operate at 2400 W and generates a maximum sound pressure of 132 dB. Over a wide frequency range from 40 Hz to 20 kHz, the loudspeaker has a defined dispersion of 80° x 50° or 60° x 50° (h x v). High-strength multi-layer birch plywood cabinet with rounded sides, reinforced by internal metal brackets to comply with safety directives. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated speaker membranes. For protection of speakers and electronics, the cabinet is equipped with a ball-impact resistant front grille, extremely sound-permeable, made of powder-coated steel and fitted with waterproof and dust-proof acoustic foam matching the loudspeaker colour. Nine M8 and three M6 mounting points are integrated at the bottom, rear and top for installation of lifting eyes and system brackets. The speaker system is optionally available with 100V technology in different power classes up to 360 W. Connections: 2x Neutrik NL4 Speakon and 8-pin Phoenix terminal block. Connections are recessed and protected under a rear cover. All contacts are doubled, for very easy and safe connection to the next loudspeaker. Specific brackets for mounting the system to ceilings, walls and structures are available. CAAD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Passive loudspeaker, 2-way, bass reflex |
|
|
Components |
15" / 1.4" on rotatable CD horn, with auto-reset IPC[*]-HF protection, all neodymium |
|
|
Nominal power (nominal) |
600 W |
|
|
Nominal power (programme) |
1200 W |
|
|
Nominal power (peak) |
2400 W |
|
|
Sensitivity |
100 dB |
|
|
Maximum SPL |
132 dB |
|
|
Frequency range |
40 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
80° x 50° or 60° x 50° |
|
|
Nominal impedance |
8 ohms |
|
|
Characteristics |
|
|
|
Speaker |
Birch plywood cabinet, metal-reinforced |
|
|
Protective grille |
Ball-impact resistant metal, powder-coated finish |
|
|
Mounting points |
9x M8 threads and 3x M6 |
|
|
Connections |
2x Neutrik NL4 Speakon and 8-pole Phoenix connector |
|
|
Standard colours |
Black or white varnished finish |
|
|
Front design |
Acoustic foam, same colour as the loudspeaker |
|
|
Dimensions (W x H x D) |
Approximately 460 x 700 x 480 mm |
|
|
Weight |
Approximately 27 kg |
|
|
Optional features |
|
|
|
Integrated 100V transformer |
240/120/60 W or 360/180/90 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated speaker membranes |
