Fohhn - 500W Speaker, white, 80 ° x 50 °
Fohhn AT-50 Top - 500W Speaker, white, 80 ° x 50 °
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Fohhn® AT-50 is an excellent lightweight broadband loudspeaker system with high output power. It was developed for high-quality sound applications requiring broadband sound transmission but unable to accommodate an additional subwoofer system. Fully equipped with state-of-the-art 15"/1.4" CD neodymium loudspeakers, the AT-50 produces exceptional sound results. The large constant directivity horn is rotatable and available in two versions, 80° x 50° or 60° x 50° (HxV). The birch multiplex wooden cabinet is reinforced with steel supports. A total of 9x M8 and 3x M6 threaded inserts ensure safe installation in accordance with all applicable regulations. A high-quality passive filter with electronic high-frequency protection circuit is also integrated. Ideal in combination with AS-31 or AS-40 subwoofer systems.

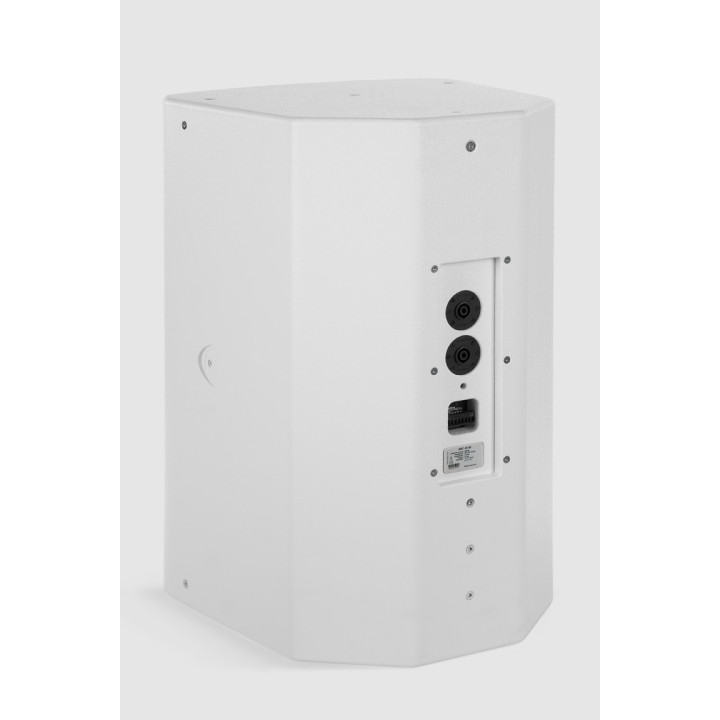

Connection Panel
For low-impedance and 100V applications, the connection panel leaves nothing to be desired. 2 Speakon sockets and an 8-way Phoenix terminal block with corresponding connector are available. If the terminal block is used, the entire connection panel can be covered so that only one cable is visible. All connections to the 100V transformer pass through the terminal block and the two Speakon sockets.
Applications
Large sports and multipurpose halls, stadiums, musicals, theatres, theme parks, nightclubs and similar applications.
Weather-resistant version (optional)
Wooden cabinet, special weather-resistant plastic coating, impregnated loudspeakers, unchanged design and dimensions.
High-performance 2-way passive loudspeaker
High-performance 2-way passive loudspeaker equipped with a 15" neodymium sub-medium loudspeaker and a 1.4" neodymium tweeter motor on a 90° rotatable CD horn in time-aligned configuration. The loudspeaker can operate temporarily at 2400 W and generates a maximum sound pressure of 132 dB. Over a wide frequency range from 40 Hz to 20 kHz, the loudspeaker has a defined dispersion of 80° x 50° or 60° x 50° (h x v). High-strength birch multiplex plywood cabinet with rounded sides, reinforced with internal metal supports to meet safety standards. Durable textured finish, available in black or white. Optionally available in all RAL colours or with weather-resistant polyurethane coating with impregnated loudspeaker membranes. For protection of loudspeakers and electronics, the cabinet is equipped with a bullet-resistant impact front grille, extremely sound-permeable, in powder-coated steel and fitted with waterproof and dustproof acoustic foam in the colour of the cabinet. Nine M8 threaded inserts and three M6 are integrated into the bottom, rear and top for mounting lifting rings and system brackets. The loudspeaker system is optionally available with 100V technology in different power classes up to 360 W. Connections: 2x Neutrik NL4 Speakon and 8-pin plug-in Phoenix terminal block. The connections are recessed and protected under a cover at the rear. All contacts are doubled, for very easy and secure connection to the next loudspeaker. Specific brackets for mounting the system to ceilings, walls and structures are available. CADD simulation data for ULYSSES and EASE are available.
|
|
Specifications |
|
|
Electro-acoustic characteristics |
|
|
|
Acoustic design |
Passive loudspeaker, 2-way, bass reflex |
|
|
Components |
15" / 1.4" on rotatable CD horn, with auto-reset IPC[*]-HF protection, all neodymium |
|
|
Rated power |
600 W |
|
|
Programme power |
1200 W |
|
|
Peak power |
2400 W |
|
|
Sensitivity |
100 dB |
|
|
Maximum SPL |
132 dB |
|
|
Frequency response |
40 Hz – 20 kHz |
|
|
Nominal dispersion (h x v) |
80° x 50° or 60° x 50° |
|
|
Nominal impedance |
8 ohms |
|
|
Characteristics |
|
|
|
Loudspeaker |
Birch plywood cabinet, metal-reinforced |
|
|
Protective grille |
Bullet-resistant impact metal, powder-coated finish |
|
|
Mounting points |
9x M8 and 3x M6 threaded |
|
|
Connections |
2x Neutrik NL4 Speakon and 8-pole Phoenix connector |
|
|
Standard colours |
Black or white lacquered finish |
|
|
Front design |
Acoustic foam, same colour as the loudspeaker |
|
|
Dimensions (W x H x D) |
Approximately 460 x 700 x 480 mm |
|
|
Weight |
Approximately 27 kg |
|
|
Optional features |
|
|
|
Integrated 100V transformer |
240/120/60 W or 360/180/90 W |
|
|
Optional colours |
All RAL colours |
|
|
Weather protection |
Scratch-resistant plastic coating, impregnated loudspeaker membranes |
