Neumann KH 750 - Active subwoofer

1012161
4044155239331
Neumann KH 750 - Active subwoofer
Neumann KH 750 - Active subwoofer
Neumann KH 750 - Active subwoofer
Neumann KH 750 - Active subwoofer
Neumann KH 750 - Active subwoofer
Neumann KH 750 - Active subwoofer
Neumann KH 750 - Active subwoofer
Neumann KH 750 - Active subwoofer
Active subwoofer with DSP, 10" speaker, 48.4 liters, 256 W, 105 dB SPL, 18-300 Hz, anthracite metallic.
... learn more
Visuals Price
1,713.70 CHF VAT excl.

1,852.50 CHF Inc. VAT

Manufacturer price 1 803,89 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Neumann DSP-controlled compact sealed-enclosure subwoofer
Designed to complement compact studio monitoring systems, the Neumann KH 750 is a 10" DSP-driven subwoofer capable of reproducing frequencies from 18 to 300 Hz at sound pressure levels of 105 dB. This model offers a flexible 2.0/0.1 bass manager, allowing the subwoofer to be used in many different scenarios. Use the KH 750 for the LFE channel in a 5.1 configuration or as a subwoofer in a conventional stereo mixing position. The KH 750 can be easily integrated into the Neumann monitor range and is suitable for use in mixing, mastering, music and broadcast.

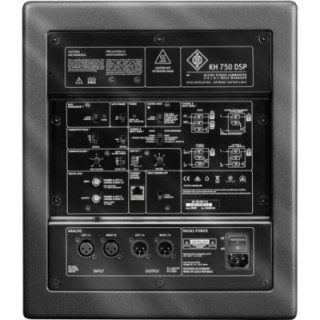

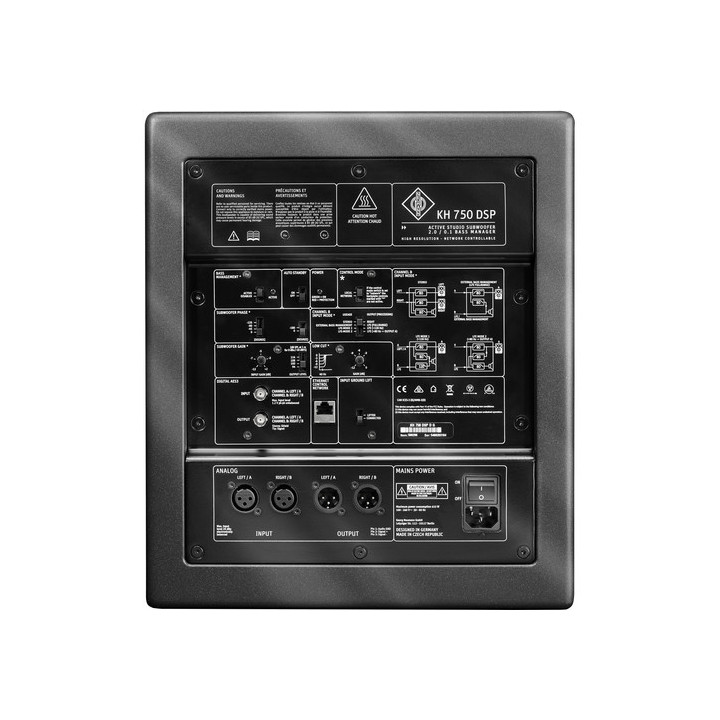

The KH 750 offers several rear panel options to accommodate various configurations, such as four different routing modes. Analogue and digital inputs/outputs are available, as well as fourth-order passive DSP filters and acoustic controls to integrate the subwoofer into your room. By using the RJ45 connection, you can use Neumann.Control, which runs on a standard IP network and provides controls for the KH 750 that are not present on the subwoofer itself. These controls facilitate the setup, alignment and use of the subwoofer in your system, even in small spaces. The Neumann.Control software can be controlled using your computer or an iPad.
Use the KH 750 to complement your compact studio monitoring setup and, in doing so, offload your existing monitors from bass extension. By implementing this subwoofer, you will also notice a marked decrease in harmonic and intermodulation distortion from your main monitors, as this load has now been reduced. A pleasant side effect will be the ability to increase the overall sound pressure level of your speakers, allowing you to check how the mix sounds at higher levels without inducing distortion.
Features
- Reduces bass extension of the monitoring system
- Increases the maximum sound pressure level of the speakers
- Reduces harmonic and intermodulation distortion of the speakers
- Reproduces the LFE channel
- Reproduces the bass signal from a multi-channel source managed by bass management
- Creates a plane wave bass array system
- Functions as an extension for KH 810, KH 870 and KH 805 subwoofer systems



Specifications



Studio monitor



Monitor type

Active subwoofer

Enclosure

Sealed, shielded

Rated power

256 W

Drivers

LF driver: 1 x 10" / 254 mm woofer

Performance



Frequency range

18 Hz to 300 Hz

Frequency response

18 Hz to 800 Hz ± 6 dB

Maximum sound pressure level (SPL)

105 dB

Dynamic range

119 dBA

THD+N

< -100 dB (analogue)
< 90 dB (digital)

Maximum input level

+24 dBu

Analogue input sensitivity/gain

+2 dB to -12 dB

Self-generated noise

Less than 20 dBA (at 3" / 10 cm)

Phase adjustment

Phase inversion 0 / 180°

Protection and limiting

Limiter, peak limiter, thermal limiting

CMRR

56 dB

Signal processing



EQ

1 x LF Shelf dB
1 x HF Shelf dB

Filters

1 x Low-pass

Filter



Crossover frequency

80 Hz

Filter type

Active

Connectivity



Inputs/Outputs

2 x balanced analogue XLR female inputs
2 x balanced analogue XLR male outputs
1 x AES/EBU BNC female digital input
1 x AES/EBU BNC female digital output

Computer interface

1 x RJ45 (controller)

Power supply



AC mains power supply

100 to 240 VAC at 50/60 Hz

Power consumption

410 W (maximum)

Environment



Operating temperature

50 to 104°F / 10 to 40°C

Operating humidity

90%

Storage temperature

-13 to 158°F / -25 to 70°C

General



Enclosure material

Aluminium, wood

Dimensions (W x H x D)

13.0 x 15.1 x 15.1" / 330.0 x 383.0 x 383.0 mm (each)

Weight

43.0 lb / 19.5 kg (each)
