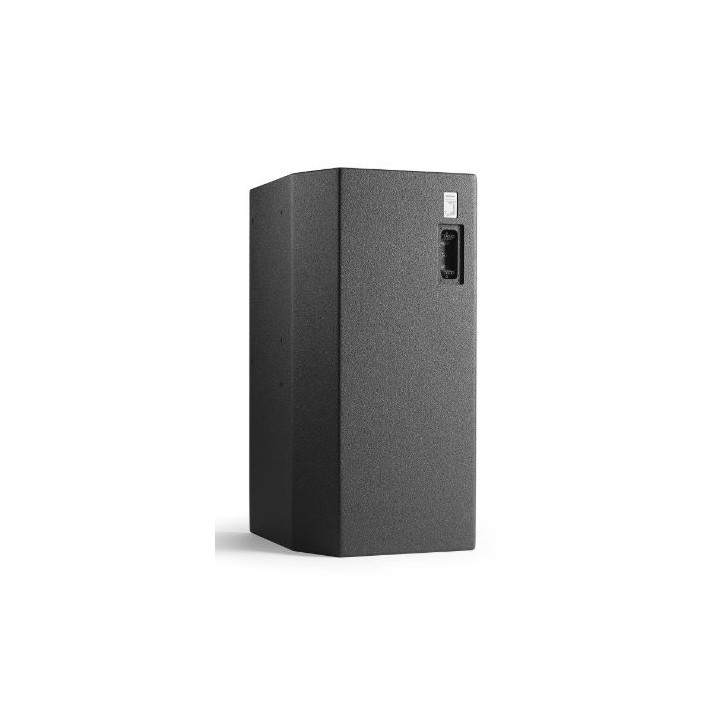

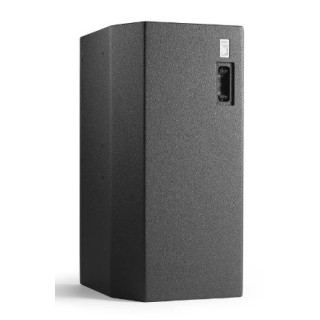

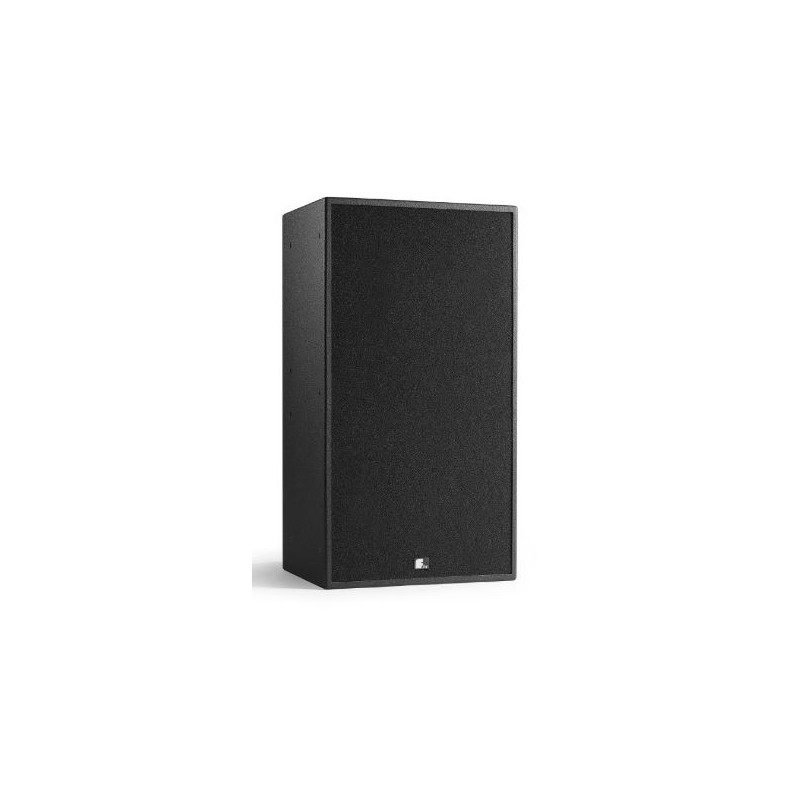

Fohhn - 600W Speaker, black, 2x10"/1.4"CD, 4 ohm, 90°x60°
Fohhn AT-661w Top - 600W Speaker, black, 2x10"/1.4"CD, 4 ohm, 90°x60°
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The AT-661w is a wide-range horn passive speaker system. It has been specially developed for outdoor applications and features a weatherproof housing, weather-resistant connections and membrane impregnation. It impresses with high performance capacity and exceptional speech intelligibility.
Features
- 2 × 10" / 1.4" compression driver (3.5" diaphragm) on rotatable CD horn
- Electronic high frequency protection
- Rated power: 600 watts at 4 ohms
- Dispersion: 90° × 60° (H × V)
- Max. SPL: 138 dB
- Connections: 2 × 4-pin terminals with weatherproof cable gland
- Weatherproof VSM housing reinforced with steel supports
- Durable PU coating as standard
- To ensure performance and operational safety, Fohhn system amplifiers with the correct speaker presets are required.
|
|
Specifications |
|
|
acoustic design |
fully horned passive point source speaker system, 2-way, vented design, weather-resistant |
|
|
rated power |
600 watts |
|
|
power (programme) |
1200 watts |
|
|
power (peak) |
2400 watts |
|
|
components |
2 × 10" long excursion with impregnated cone, 1.4" compression driver on rotatable CD horn with auto-resetting IPC[*]-HF protection, neodymium magnets |
|
|
sensitivity |
105 |
|
|
maximum SPL |
138 |
|
|
frequency response |
65 Hz – 20 kHz |
|
|
nominal impedance |
4 ohms |
|
|
2-way design |
yes |
|
|
nominal dispersion (h × v) |
90° × 60° |
|
|
Features |
|
|
|
housing |
weatherproof VSM/aluminium housing |
|
|
front design |
acoustic foam, same colour as housing |
|
|
protective grille |
bullet-resistant steel grille, powder-coated |
|
|
weight |
approx. 32 kg |
|
|
standard colours |
scratch-resistant polyurethane coating, black |
|
|
mounting points |
8 × M6 threads |
|
|
weather protection |
polyurethane coating and water-repellent impregnation of speaker diaphragm |
|
|
connectors |
2 × 4-pin terminals with removable weatherproof cable gland |
|
|
dimensions (W × H × D) |
455 × 840 × 465 mm |
